SOFTWARE DI PROGR. CG2000 40071346991 SRCD1CO EATON ELECTRIC Light intensity switch, 2 TLE, 2- 2000 Lux, dig..

SOFTWARE DI PROGR. CG2000

40071346991

SRCD1CO

EATON-MOELLER

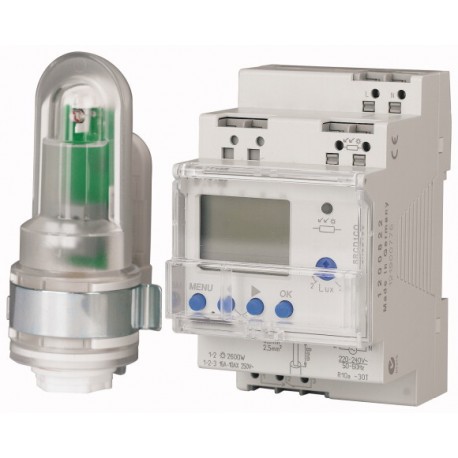

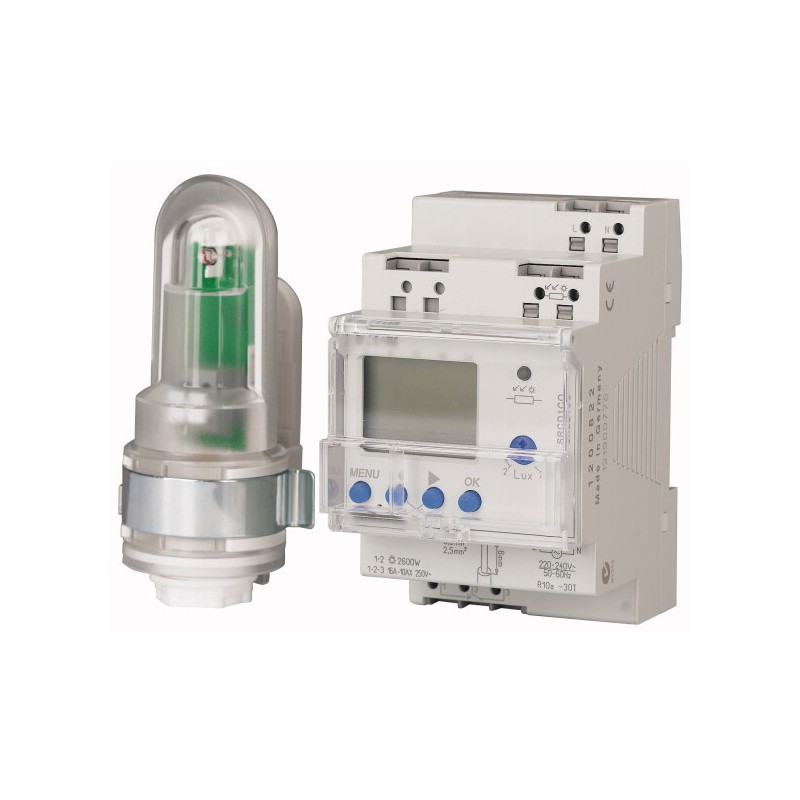

Light intensity switch, 2 TLE, 2- 2000 Lux, digital weekly program with surface mounting lights

PC-SOFTWARE CG2000

More details


Central Battery System

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Light intensity switch, 2 TLE, 2- 2000 Lux, digital weekly program with surface mounting lights
Alternate Catalog No.
SRCD1CO
EL-Nummer (Norway)
0001456979
Distribution board-light intensity switch, width 35 mm, separate surface mounting - light sensor (IP 55), analog adjustable brightness range: 2 – 2 000 Lux on-/off-delay 0- 59min., text-oriented operator prompting and backlit display, week program, interface memory card/PC, external control inputs with 5 functions, ON/OFF permanent, undelayed LED display, duoFix- plug-in terminals, PIN - encryptor, 10 years autonomy, zero-crossing circuit, changeover contact 16A/250V~, sealable transparent cover
[

Design verification as per IEC/EN 61439

Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
1.7 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-30 °C
Operating ambient temperature max.
+55 °C
0
,

Technical data ETIM 7.0

Devices for distribution board-/surface mounting (EG000062) / Twilight switch for distribution board (EC001645)
Electric engineering, automation, process control engineering / Electrical installation, device / Modular serial built-in device for electrical circuit distributors / Twilight switch for distribution board ([email protected] [ACN363011])
Rated voltage
230 V
Rated frequency
60 - 60 Hz
Max. incandescent lamp load
2600 W
Max. load fluorescent lamp
2300 VA
Max. load fluorescent lamp (Duo circuit)
2300 VA
Max. load fluorescent lamp (parallel compensated)
800 VA
Max. switching current (cos phi = 0.6)
10 A
Rated switch current
16 A
Adjustment range brightness value
2 - 2000 lx
With programmable overnight shutoff
No
Push button input
Yes
Rated voltage light sensor
0 V
Max. conductor length light sensor
100 m
Protection class light sensor
II
Mounting method light sensor
Wall surface mounted
Mounting method
DIN rail
Width in number of modular spacings
3
Built-in depth
69.2 mm
Degree of protection (IP)
IP20
Degree of protection (IP) light sensor
IP55
]

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
SOFTWARE DI PROGR. CG2000 SRCD1CO 40071346991 40071346991_EN.pdf 158 Kbytes SOFTWARE DI PROGR. CG2000 SRCD1CO 40071346991 40071346991_EN.pdf
