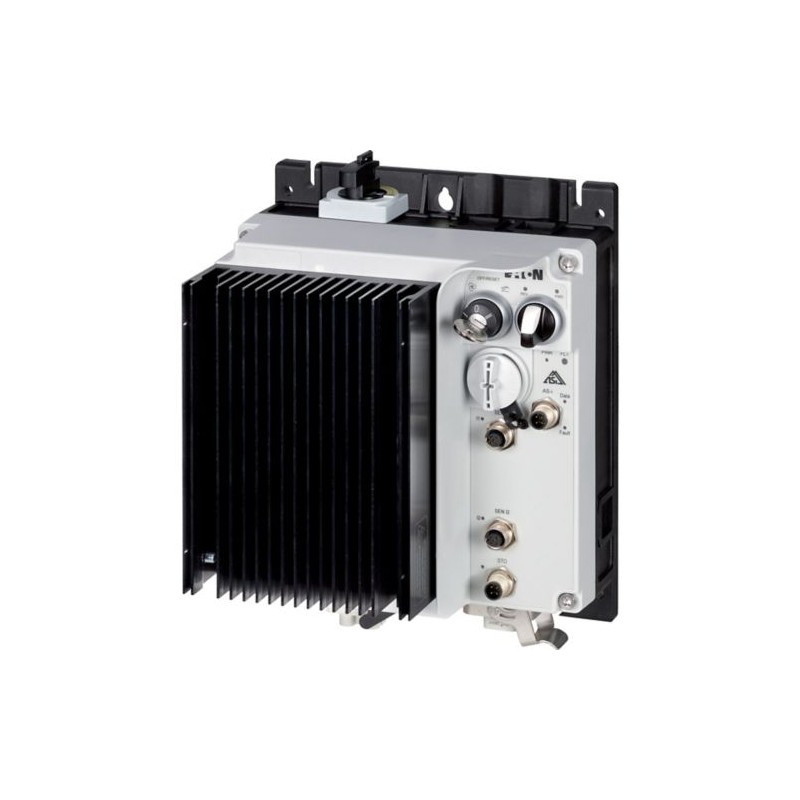

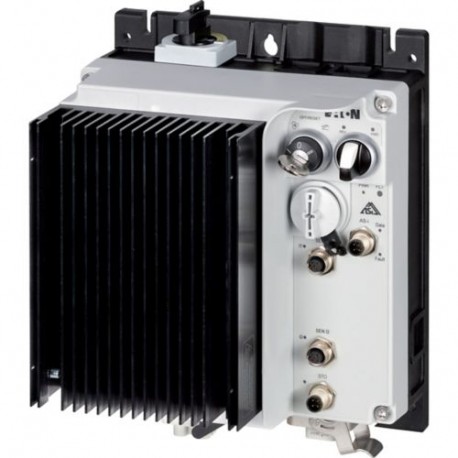

RASP5-4400A31-412R010S1 198788 Y7-198788 EATON ELECTRIC RASP5-4400A31-412R010S1
RASP5-4400A31-412R010S1
198788
Y7-198788
EATON-MOELLER
RASP5-4400A31-412R010S1
Speed controllers, 4.3 A, 1.5 kW, Sensor input 4, AS-Interface®, S-7.4 for 31 modules, HAN Q4/2, with manual override switch, STO (Safe Torque Off)
Rapid Link Starters
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲Speed controllers, 4.3 A, 1.5 kW, Sensor input 4, AS-Interface®, S-7.4 for 31 modules, HAN Q4/2, with manual override switch, STO (Safe Torque Off)
Delivery program
Product range
Speed controller
Rated operational voltage [Ue]
400 V AC, 3-phase
480 V AC, 3-phase
480 V AC, 3-phase
Output voltage with Ve[U2]
0 - ULN
Mains voltage (50/60Hz) [ULN]
380 (-15%) - 480 (+10%) V
At 150% overload [Ie]
4.3 A
assigned motor rating P
Note
at 400 V, 50 Hz
150 % Overload [P]
1.5 kW
Note
at 480 V, 60 Hz
150 % Overload [P]
2 HP
Note
for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1at 50 Hz or 1800 min-1at 60 Hz
Description
integrated PTC thermistor monitoring and Thermoclick with safe isolation
Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation
optional: 4 sensor inputs with M12-Y adapter for switchover to creep speed
Connection of supply voltage via adapter cable on round or flexible busbar junction
Diagnostics and reset on device and via AS-Interface
with AUTO - OFF/RESET - HAND key switches
3 fixed speeds and 1 potentiometer speed
can be switched over from U/f to (vector) speed control
with selector switch REV - OFF - FWD
optional: Faster stop if external 24 V fails
Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation
optional: 4 sensor inputs with M12-Y adapter for switchover to creep speed
Connection of supply voltage via adapter cable on round or flexible busbar junction
Diagnostics and reset on device and via AS-Interface
with AUTO - OFF/RESET - HAND key switches
3 fixed speeds and 1 potentiometer speed
can be switched over from U/f to (vector) speed control
with selector switch REV - OFF - FWD
optional: Faster stop if external 24 V fails
Sensor input
4 Number
Interface/field bus (built-in)
AS-Interface®
AS-Interface profile cable
S-7.4 for 31 modules
Plug arrangement
HAN Q4/2
Repair switch
with manual override switch
Safety function
STO (Safe Torque Off)
Parameterization
Keypad
Fieldbus
drivesConnect
drivesConnect mobile (App)
Fieldbus
drivesConnect
drivesConnect mobile (App)
Technical data
General
Standards
IEC/EN 61800-5-1
UL 61800-5-1
Guideline 2011/65/EU (RoHS)
CE approval
UL approval
UL 61800-5-1
Guideline 2011/65/EU (RoHS)
CE approval
UL approval
Climatic proofing [ρw]
< 95%, non-condensing
IEC/EN 50178 %
IEC/EN 50178 %
Ambient temperatureOperating ambient temperature min.
-10 °C
Ambient temperatureOperating ambient temperature max.
+40 °C
Ambient temperature
-10 – +55 with derating
Ambient temperatureStorage [ϑ]
-40 - +70 °C
Overvoltage category
III
Rated impulse withstand voltage [Uimp]
2 kV
Radio interference levelRadio interference class (EMC)
C1 (for conducted emissions only), C2, C3, depending on the motor cable length, the connected load, and ambient conditions.
Radio interference levelEnvironment (EMC)
1st and 2nd environments as per EN 61800-3
Radio interference levelmaximum motor cable length [I]
C1 ≤ 1 m
C2 ≤ 5 m
C3 ≤ 25 m m
C2 ≤ 5 m
C3 ≤ 25 m m
Mechanical shock resistance
1000 shocks per shaft, semi-sinusoidal 15 g/11 ms
IEC/EN 60068-2-27 g
IEC/EN 60068-2-27 g
Vibration
Oscillation frequency: 10 - 150 Hz
Amplitude 0.15 mm: 6 Hz
Amplitude transition frequency on acceleration: 57 Hz
IEC/EN 60068-2-6
Amplitude 0.15 mm: 6 Hz
Amplitude transition frequency on acceleration: 57 Hz
IEC/EN 60068-2-6
Mounting position
Vertical
Altitude
0 - 1000 m above sea level
above 1000 m with 1 % performance reduction per 100 m
max. 2000 m m
above 1000 m with 1 % performance reduction per 100 m
max. 2000 m m
Degree of Protection
IP65
NEMA12
NEMA12
Main circuit
SupplyRated operational voltage [Ue]
400 V AC, 3-phase
480 V AC, 3-phase
480 V AC, 3-phase
SupplyMains voltage (50/60Hz) [ULN]
380 (-15%) - 480 (+10%) V
SupplyInput current (150% overload) [ILN]
4.1 A
SupplySystem configuration
AC voltage
Center-point earthed star network (TN-S network)
Phase-earthed AC supply systems are not permitted.
Center-point earthed star network (TN-S network)
Phase-earthed AC supply systems are not permitted.
SupplySupply frequency [fLN]
50/60 Hz
SupplyFrequency range [fLN]
45–66 (± 0%) Hz
SupplyMains switch-on frequency
Maximum of one time every 60 seconds
SupplyMains current distortion [THD]
< 120 %
SupplyRated conditional short-circuit current [Iq]
< 10 kA
SupplyShort-circuit protection for output circuits, external
Type 1 coordination via the power bus' feeder unit
Power sectionFunction
Variable frequency drive with internal DC link and IGBT inverter
Power sectionOn-delay [tON]
< 10 ms
Power sectionOff-delay [tOFF]
< 10 ms
Power sectionOverload current (150% overload) [IL]
6.5 A
Power sectionNote regarding overload current
For 60 s every 600 s
at 40 °C
at 40 °C
Power sectionmax. starting current (High Overload) [IH]
200 %
Power sectionNote about max. starting current
at 40 °C
Power sectionOutput voltage with Ve[U2]
0 - ULN
Power sectionOutput Frequency [f2]
0 - 50/60 (max. 500) Hz
Power sectionSwitching frequency [fPWM]
8
adjustable 4 - 32 kHz
adjustable 4 - 32 kHz
Power sectionOperation Mode
U/f control
sensorless vector control (SLV)
PM and LSPM motors
Synchronous reluctance motors
BLDC motors
sensorless vector control (SLV)
PM and LSPM motors
Synchronous reluctance motors
BLDC motors
Power sectionFrequency resolution (setpoint value) [Δf]
0.1 Hz
Power sectionRated operational currentAt 150% overload [Ie]
4.3 A
Power sectionNote
Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +40 °C
Power sectionMotor current limit [I]
0,4 - 4,3
adjustable A
adjustable A
Power sectionPower lossHeat dissipation at rated operational current Ie=150 % [PV]
46 W
Power sectionEfficiency [η]
98 %
Power sectionMaximum leakage current to ground (PE) without motor [IPE]
3.5 mA
Power sectionFitted with
with manual override switch
without fan
without braking resistance
without fan
without braking resistance
Power sectionSafety function
STO (Safe Torque Off)
Motor feederNote
for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1at 50 Hz or 1800 min-1at 60 Hz
Motor feederNote
at 400 V, 50 Hz
Motor feeder150 % Overload [P]
1.5 kW
Motor feederNote
at 480 V, 60 Hz
Motor feeder150 % Overload [P]
2 HP
Motor feederBraking functionDC braking [%]
≦ 100, adjustable I/Ie
Control section
External control voltage [Uc]
24 V DC - 15 % / + 20 % via AS-Interface®plug V
Interface/field bus (built-in)
AS-Interface®
AS-Interface®
max. total power consumption from AS-Interface® power supply unit (30 V): 190 mA
Specification: S-7.4
Number of slave addresses: 31
Specification: S-7.4
Number of slave addresses: 31
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-10 °C
Operating ambient temperature max.
+40 °C
Dimensions
