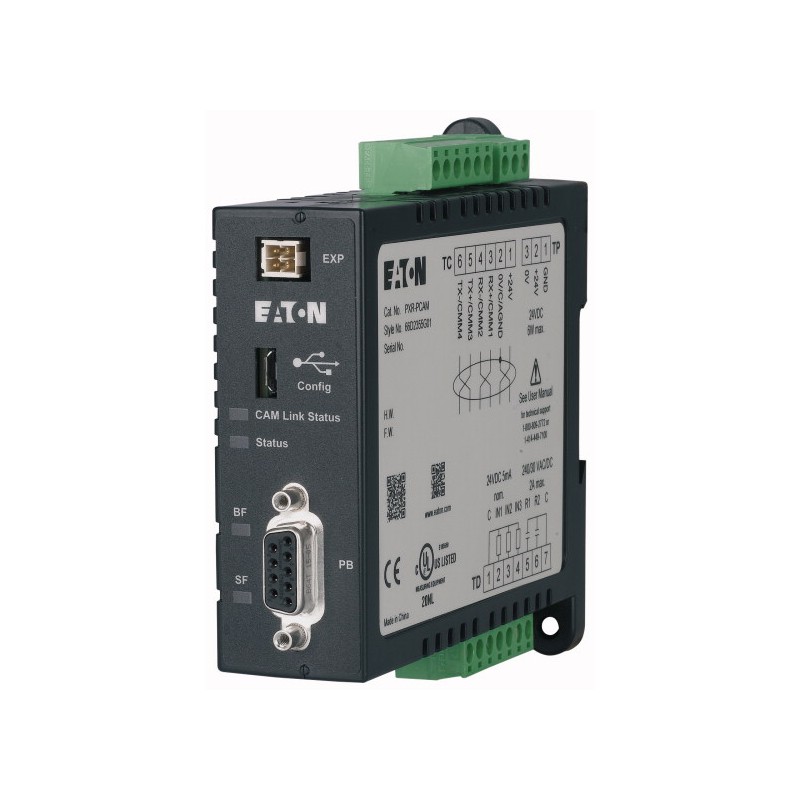

PXR-PCAM 195565 EATON ELECTRIC Communication module for IZM and NZM-VX(MX)(PX)(PMX). Profibus DP
PXR-PCAM
195565
EATON-MOELLER
Communication module for IZM and NZM-VX(MX)(PX)(PMX). Profibus DP
Communication module, Profibus DP
Optional accessories for NZM and IZMX series circuit-breakers. Offers a comprehensive portfolio of applications for worldwide use. Thanks to the modular functional groups, installation is always flexible and simple. Notes: Communication adapter modules - For fieldbus connection. Module for NZM and IZMX. For connection to Profibus DP. Cannot be used with the PXR10 NZM-AX electronic release.
Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
Circuit Breakers NZM
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Communication module, Profibus DP
Optional accessories for NZM and IZMX series circuit-breakers. Offers a comprehensive portfolio of applications for worldwide use. Thanks to the modular functional groups, installation is always flexible and simple. Notes: Communication adapter modules - For fieldbus connection. Module for NZM and IZMX. For connection to Profibus DP. Cannot be used with the PXR10 NZM-AX electronic release.
Delivery program
Product range
Accessories
Accessories
Communications module
Standard/Approval
UL/CSA, IEC
Construction size
NZM…2(3)(4)-MX(VX)(PX)(PMX)… ; IZMX…
Description
For Fieldbus connection to the IZMX and NZM circuit breakers.
The module is mounted externally near the circuit breaker.
Connection to PROFIBUS-DP
Cannot be used with the PXR10 NZM-AX electronic trip.
The module is mounted externally near the circuit breaker.
Connection to PROFIBUS-DP
Cannot be used with the PXR10 NZM-AX electronic trip.
For use with
NZM2(3)(4)(-4)-VX(MX)(PX)(PMX)
IZMX...
IZMX...
Technical data
Kommunikation
Type of the fieldbus interface
Profibus DP
Participant type
Slave
KommunikatonsparameterNZM connection
Pre-wired connection
KommunikatonsparameterFieldbus connection
Customer-wired standard Profibus connection
Supply connection
Rated control voltage [Us]DC [Us]
24-24 V DC
Rated control voltage [Us]Tolerance
+/- 20%
Rated control voltage [Us]Power consumption [Pmax.]
6 W
Rated control voltage [Us]ConnectionConnection type
With bolt connection
Rated control voltage [Us]ConnectionStripping length
7 mm
Rated control voltage [Us]ConnectionTerminal capacitySolid
1 x (0.2 - 2.0) mm2
Rated control voltage [Us]ConnectionTerminal capacityStranded
1 x (0.2 - 2.0) mm2
Rated control voltage [Us]ConnectionTerminal capacity
1 x (24 - 14) AWG
Rated control voltage [Us]ConnectionTerminal capacitywith ferrule acc. to DIN46224 / 1
1 x (0,2 - 2,0) mm2
Rated control voltage [Us]ConnectionTerminal capacitywith ferrule with plastic collar acc. to DIN46228 / 4
1 x (0,2 - 2,0) mm2
Digital-EingängeQuantity
3
Digital-EingängeInput current
5 mA
Digital-EingängePower supply
24 V DC
Digital-EingängeInput impedance
5 kΩ
Digital-EingängeConnectionConnection type
With bolt connection
Digital-EingängeConnectionStripping length
7 mm
Digital-EingängeConnectionTerminal capacitySolid
1 x (0.2 - 2.0) mm2
Digital-EingängeConnectionTerminal capacityStranded
1 x (0.2 - 2.0) mm2
Digital-EingängeConnectionTerminal capacity
1 x (24 - 14) AWG
Digital-EingängeConnectionTerminal capacitywith ferrule acc. to DIN46224 / 1
1 x (0,2 - 2,0) mm2
Digital-EingängeConnectionTerminal capacitywith ferrule with plastic collar acc. to DIN46228 / 4
1 x (0,2 - 2,0) mm2
Relay outputsNumber
2
Relay outputsContact sequence
Relay outputsRated control voltage [Us]AC [Us]
24-30 V AC
Relay outputsContactsOvervoltage category/pollution degree
II/2
Relay outputsSwitching capacityRated operational currentAC–1220V230V240V [Ie]
2 A
Relay outputsSwitching capacityRated operational currentDC-124 V [Ie]
2 A
Relay outputsConnectionConnection type
With bolt connection
Relay outputsConnectionStripping length
7 mm
Relay outputsConnectionTerminal capacitySolid
1 x (0,2 - 2,0) mm2
Relay outputsConnectionTerminal capacityStranded
1 x (0,2 - 2,0) mm2
Relay outputsConnectionTerminal capacity
1 x (24 - 14) AWG
Relay outputsConnectionTerminal capacitywith ferrule acc. to DIN46224 / 1
1 x (0,2 - 2,0) mm2
Relay outputsConnectionTerminal capacitywith ferrule with plastic collar acc. to DIN46228 / 4
1 x (0,2 - 2,0) mm2
Relay outputsOperating ambient temperature min.
-20 °C
Relay outputsOperating ambient temperature max.
+70 °C
Relay outputsMin. ambient temperature, storage
- 45 °C
Relay outputsAmbient temperature, storage max.
+ 85 °C
Design verification as per IEC/EN 61439
Technical data for design verification
Operating ambient temperature min.
-20 °C
Operating ambient temperature max.
+70 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Accessories for low-voltage switch technology (EC002498)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Component for low-voltage switch technology (accessories) ([email protected] [AKN570013])
Type of accessory
Communication and measuring function
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Communication and measuring function |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| PXR-PCAM 195565 EN_195565.pdf | 198 Kbytes |
|
