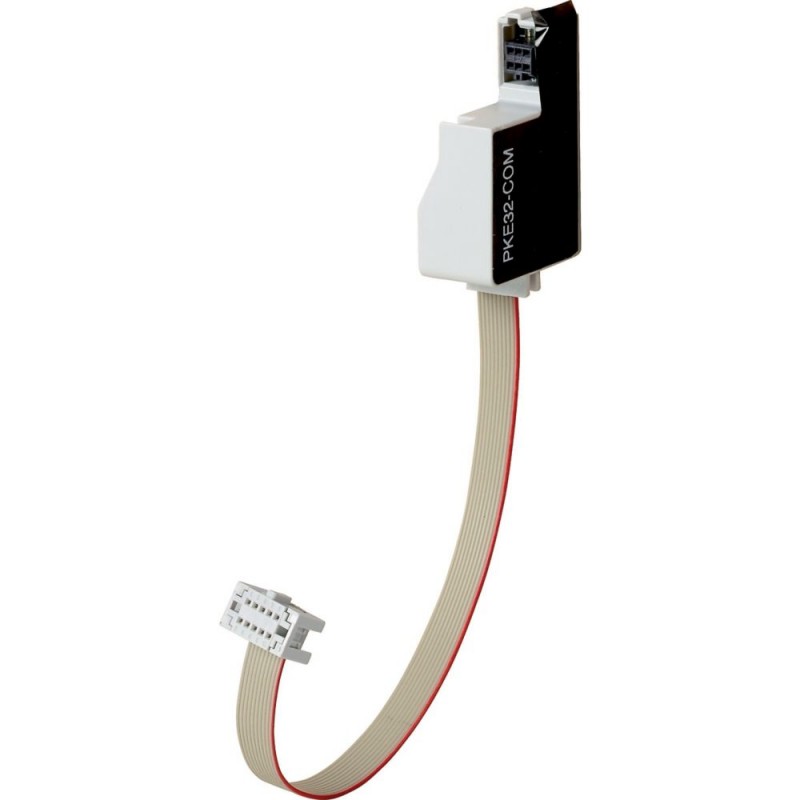

PKE32-COM 168970 Y7-168970 EATON ELECTRIC Communication cable, PKE View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PKE32-COM 168970 Y7-168970 EATON ELECTRIC Communication cable, PKE

PKE32-COM

168970

Y7-168970

EATON-MOELLER

Communication cable, PKE

PKE32-COM

Eaton Moeller® series PKE32 Communication cable, PKE

Communication cable for connecting PKE basic devices with PKE-XTUA-… trip blocks to DS7 soft starters with an integrated SmartWire-DT interface (DS7-34DSX…) for additional monitoring (motor current, switch status, switch settings).

More details


Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology

Electronic Circuit Breakers

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $71.68
Unit price: $71.68
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series PKE communication cable
Catalog Number
168970
Model Code
PKE32-COM
EAN
4015081654611
Product Length/Depth
160 mm
Product Height
30 mm
Product Width
21 mm
Product Weight
0.007 kg
Compliances
CE

Features & Functions

Fitted with:
2 plugs
Functions
For connecting the PKE to DS7-SWD
Number Of Poles
Six-pole

General

Accessory/spare part type
Communication and measuring function
Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Communication

Connection to SmartWire-DT
Yes

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 168970 Low-voltage industrial controls and switchgear (EC002498)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Communication and measuring function
Accessory (EF013236) Yes
Spare part (EF013237) No

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
PKE32-COM Y7-168970 168970 EN_168970.pdf 109 Kbytes PKE32-COM Y7-168970 168970 EN_168970.pdf
