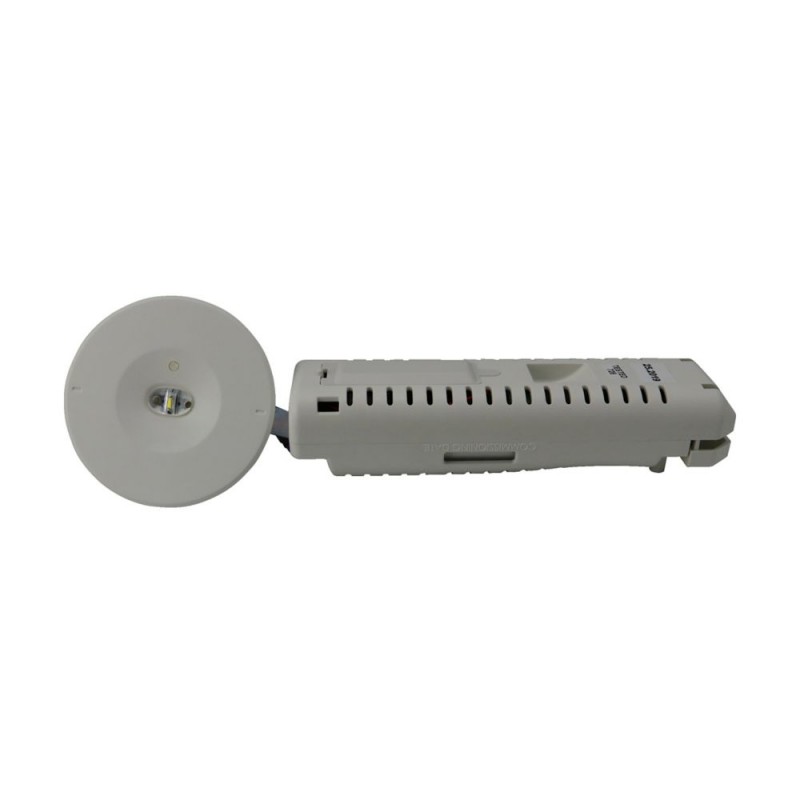

MP2E3HCGL EATON ELECTRIC MICROPOINT2 3H MTD EXHAUST C/W CGL
MP2E3HCGL
EATON-MOELLER
MICROPOINT2 3H MTD ESCAPE C/W CGL
Eaton Micropoint 2, Safety lighting, Escape route, CGLine + technology, LED, Maintained / Non-Maintained operation, IP44, 148lm, 3 hour duration, Recessed
Luminaires > Emergency luminaire
Central Battery System
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Built-in |
| Suitable for labelling type (EF001277) | Other |
| With pictogram (EF011099) | No |
| Monitoring equipment (EF008091) | Safety module for monitoring (central feeded system) |
| With remote switch connection (EF007947) | Yes |
| Power supply system (EF000233) | Peripheral (individual battery) |
| Battery technology (EF004351) | NiCd |
| Lamp type (EF002423) | LED non-replaceable |
| With light source (EF005905) | Yes |
| Suitable for number of light sources (EF006436) | 1 |
| Lamp holder (EF000048) | None |
| Number of lighting heads (EF004258) | 1 |
| Housing material (EF001596) | Plastic |
| Housing colour (EF000136) | White |
| Material cover (EF004284) | Other |
| Voltage type (EF000187) | AC |
| Nominal voltage (EF005127) | 230 V |
| Type of control gear (EF000381) | Not required |
| Light distributor (EF012170) | Focal lens |
| Degree of protection (IP) (EF005474) | IP44 |
| Impact strength (EF004293) | IK03 |
| Protection class according to IEC 61140 (EF000004) | II |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420) | Yes |
| Rated ambient temperature according to IEC 62722-2-1 (EF012090) | 5 °C |
| Max. system power (EF009347) | 5 W |
| Rated luminous flux according to IEC 62722-2-1 (EF009349) | 148 lm |
| Luminous flux in standby mode (EF011954) | 148 lm |
| Colour temperature (EF009346) | 6200 K |
| Power factor (EF025740) | 0.72 |
| Nominal operation time (EF012518) | 3 h |
| Height/depth (EF001456) | 75 mm |
| Outer diameter (EF000015) | 90 mm |
| Built-in height/depth (EF023518) | 63 mm |
| Built-in diameter (EF000943) | 64 mm |
| Type of wiring (EF011868) | Suitable for through wiring |
| Number of poles (EF001391) | 4 |
| Conductor cross section (EF000085) | 2.5 mm² |
| Connection type (EF000124) | Screw connection |
