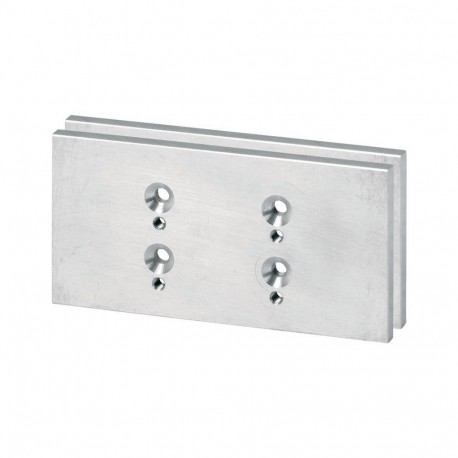

NZM2-XAP7 119381 Y7-119381 EATON ELECTRIC Mounting adapter plate, NZM2 /NZM7 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

NZM2-XAP7 119381 Y7-119381 EATON ELECTRIC Mounting adapter plate, NZM2 /NZM7

NZM2-XAP7

119381

Y7-119381

EATON-MOELLER

Mounting adapter plate, NZM2 /NZM7

NZM2-XAP7

Eaton Moeller series NZM - Molded Case Circuit Breaker. Mounting adapter plate, NZM2 /NZM7

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: positioning the replacement device selectively equal with the connection side or actuation axle. The use of door coupling rotary handle NZM7 continues to be possible if the distance between mounting plate and inner side of door is at least 213 mm. otherwise use the new handle NZM2-XTVD…-0 with new axle. Exchange NZM7 with NZM2 or P7 with PN2/N2. Can be used for: NZM2, N2, PN2, NS2, NZM2-NA, NZM2-4-NA

More details


Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology

Circuit Breakers NZM

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $97.76
Unit price: $97.76
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller series NZM multi-function device adapter
Catalog Number
119381
Model Code
NZM2-XAP7
EAN
4015081175079
Product Length/Depth
50 mm
Product Height
12 mm
Product Width
100 mm
Product Weight
0.16 kg
Compliances
IEC
RoHS conform

Product specifications

Type
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Frame
NZM2
Used with
N2NS2NZM2NZM2-4-NANZM2-NAPN2Three-pole
Accessory
Mounting adapter plate
Accessory/spare part type
Terminal type
Accessory
Other

ETIM for 119381 Low-voltage industrial controls and switchgear (EC002498)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Other
Accessory (EF013236) Yes
Spare part (EF013237) No

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
NZM2-XAP7 Y7-119381 119381 ES_119381.pdf 1 Mbytes NZM2-XAP7 Y7-119381 119381 ES_119381.pdf
