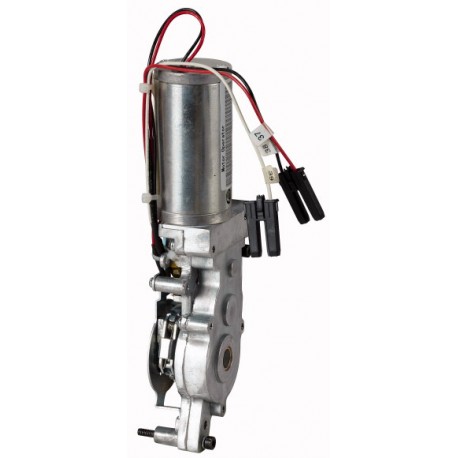

IZMX-M16-60DC 123994 EATON ELECTRIC Motor operator 60 VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

IZMX-M16-60DC 123994 EATON ELECTRIC Motor operator 60 VDC

IZMX-M16-60DC

123994

EATON-MOELLER

Motor operator 60 VDC

IZMX-M16-60DC

The motor automatically tensions the spring force storage mechanism for remote or local actuation, with signaling switch zspring-operated stored-energy mechanism charged.z

More details


Low-voltage industrial components > Motor operator for power circuit-breaker

Circuit Breakers IZM

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Motor operator 60 VDC
The motor automatically tensions the spring force storage mechanism for remote or local actuation, with signaling switch "spring-operated stored-energy mechanism charged."

Delivery program

Product range
Accessories
Accessories
Remote switching
Accessories
Motor operator
DC
Maximum operating frequency [Actuations/minute]
3
Please note - the circuit-breaker's switching frequency = 60/h
Rated control voltage [Us]
60 V DC V
Operating range [x US]
0,85 - 1,1 Factor
max. holding current [In]
3 A
max. pick-up current (35ms) [In]
15 A
max. continuous power [AC/DC]
150 VA/W
max. pull-in power (35ms) [AC/DC]
3 VA/W
For use with
IZMX16…
INX16…
Instructions
An additional control circuit terminal block is required for retrofitting.
For fixed mounting circuit-breakers￫#156593 and withdrawable unit circuit-breakers ￫#156590
Information about equipment supplied
A signaling switch for the labeled “Spring-operated stored energy mechanism tensioned” message is included as standard.

Technical data

Necessary time required for charging the spring-operated stored energy mechanism at 1 x Us
3 s DC
Rated operational current [In]
3 A DC A
Starting current
15 A DC A
Power consumption
150 W DC

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Motor operator for power circuit-breaker (EC001030)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Electrical drive for circuit breakers ([email protected] [AKF010013])
Type of switch drive
Motor drive
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
60 - 60 V
Voltage type for actuating
DC

ETIM for 123994 Low-voltage industrial controls and switchgear (EC001030)
Feature Name Feature Value
Type of switch drive (EF008233) Motor drive
Rated control supply voltage AC 50 Hz (EF003978) 0 V
Rated control supply voltage AC 60 Hz (EF003979) 0 V
Rated control supply voltage DC (EF003980) 60 V
Voltage type for actuating (EF008242) DC

Datasheet - PDF

▲
