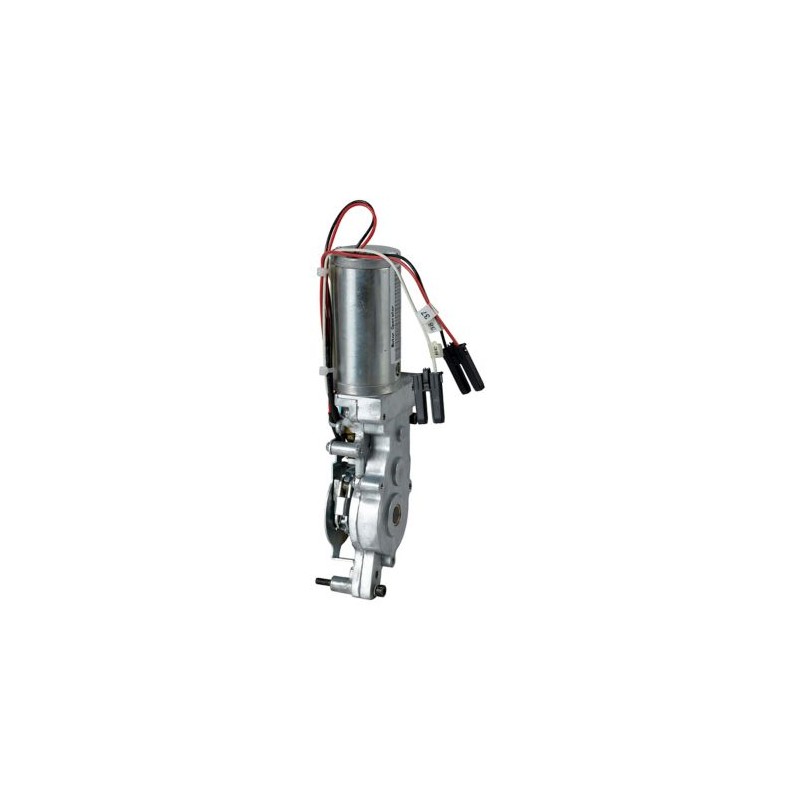

+IZMX-M16-60DC 123978 EATON MOELLER Motor operator 60 VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

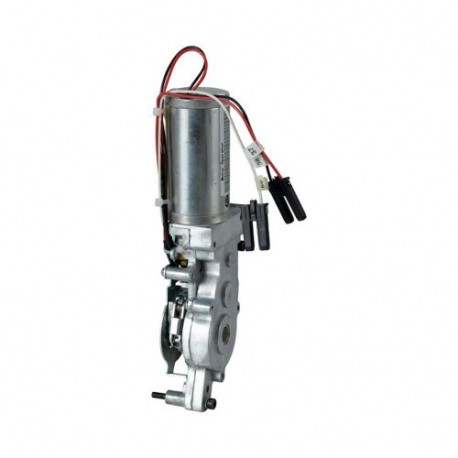

+IZMX-M16-60DC 123978 EATON MOELLER Motor operator 60 VDC

+IZMX-M16-60DC

123978

EATON - MOELLER

Motor operator 60 VDC

More details


* Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

* This article is obsolete. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Related products

More info



Delivery programme
Product range
  Accessories
Accessories
  Remote switching
Accessories
  Motor operator

  The motor automatically tensions the spring force storage mechanism for remote or local actuation.
Maximum operating frequency
Actuations/minute 3

  Please note - the circuit-breaker's switching frequency = 60/h
Rated control voltage
UsV60 V DC
Operating range
x USFactor0,85 -1,1
max. holding current
InA3
max. pick-up current (35ms)
InA15
max. sealing power
AC/DCVA/W150
max. pull-in power (35ms)
AC/DCVA/W3
For use with
  IZMX16…
INX16…
Information about equipment supplied
  A signaling switch for the labeled “Spring-operated stored energy mechanism tensioned” message is included as standard.
Technical data
Rated control voltage
UsV60 V DC
Necessary time required for charging the spring-operated stored energy mechanism at 1 x Us
  3 s DC
Rated operational current
InA3 A DC
Starting current
 A15 A DC
Power consumption
  150 W DC
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Motor operator for power circuit-breaker (EC001030)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Electrical drive for circuit breakers ([email protected] [AKF010010])
Type of switch drive
  Motor drive
Rated control supply voltage Us at AC 50HZ
 V0 - 0
Rated control supply voltage Us at AC 60HZ
 V0 - 0
Rated control supply voltage Us at DC
 V60 - 60
Voltage type for actuating
  DC

Datasheet - PDF

Title: Language: Size: Type:
pdf- Motor operator 60 VDC - EATON - IZMX-M16-60DC - 123978 English 143 Kbytes pdf- Motor operator 60 VDC - EATON - IZMX-M16-60DC - 123978
