EATON - MOELLER +IZMX-M16-48DC 123595 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

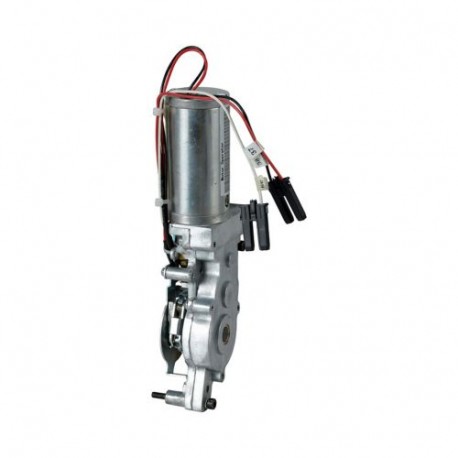

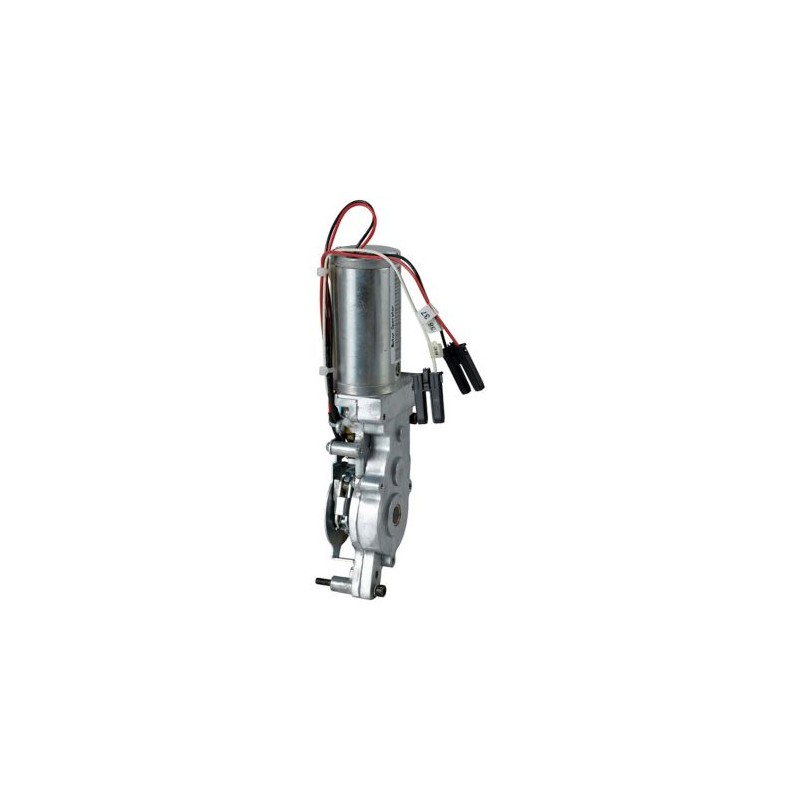

+IZMX-M16-48DC 123595 EATON ELECTRIC Motor operator 48 VDC

Reference: +IZMX-M16-48DC

Code: 123595

Manufacturer: EATON - MOELLER

Description:

Motor operator 48 VDC
The motor automatically tensions the spring force storage mechanism for remote or local actuation, with signaling switch zspring-operated stored-energy mechanism charged.z

Categories:

  • Low-voltage industrial components > Motor operator for power circuit-breaker
  • EATON - MOELLER

Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

General specifications

Product Name
Eaton Moeller series IZMX/INX motor operator
Catalog Number
123595
Model Code
+IZMX-M16-48DC
EAN
4015081212002
Product Length/Depth
200 mm
Product Height
100 mm
Product Width
150 mm
Product Weight
0.905 kg
Compliances
RoHS conform

Delivery program

Type
Accessory
Accessory/spare part type
Remote switching

Technical data - electrical

Voltage type
DC
Control voltage operating range
48 V DC
0.85 - 1.1 x Us
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
48 V
Rated control supply voltage (Us) at DC - max
48 V
Current rating - max
3 A (maximum holding current)
Rated operational current
3 A DC
3 A (maximum holding current)
Starting current rating
15 A DC
Power consumption
150 W DC
150 VA/W AC/DC
Pick-up power consumption at 35 ms - max
3 VA/W
Necessary time for charging spring-operated stored energy mechanism at 1 x Us
3 s DC

Technical data - mechanical

Number of actuation per minute - max
3
Switch drive type
Motor drive

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Additional information

Special features
Used with
IZMX16…
INX16…

ETIM for 123595 Low-voltage industrial controls and switchgear (EC001030)

Feature nameType of switch drive (EF008233)
Feature valueMotor drive
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value0 V
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value0 V
Feature nameRated control supply voltage DC (EF003980)
Feature value48 V
Feature nameVoltage type for actuating (EF008242)
Feature valueDC
