> EATON - MOELLER>Compact Distribution Boxes >MINI-2 177066 Y7-177066 ELECTRIC MINI-2 Mini compact distribution board, 1-row 2 SU, IP20
ANUNCIAR
Previous Product Next Product

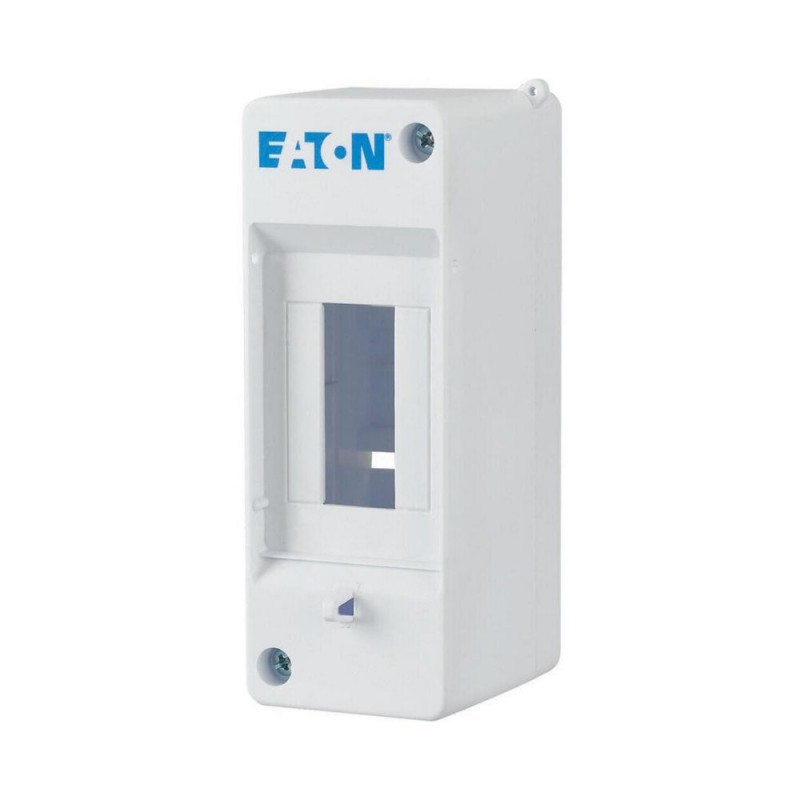

MINI-2 177066 Y7-177066 EATON ELECTRIC MINI-2 Mini compact distribution board, 1-row 2 SU, IP20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MINI-2 177066 Y7-177066 EATON ELECTRIC MINI-2 Mini compact distribution board, 1-row 2 SU, IP20

MINI-2

177066

Y7-177066

EATON-MOELLER

MINI-2 Mini compact distribution board, 1-row 2 SU, IP20

MINI-2

Eaton xComfort Micro/Mini LV systems Final Distribution Boards. Mini compact distribution board, 1-row 2 SU, IP20

Plastic mini compact distribution board, for installing switching and protective devices, in accordance with dimension standard DIN 43 880, with an installation depth of 70 mm and a current of up to 63 A, 400 V /50 Hz, IP20 degree of protection to IEC/EN 62208, approved for building service distribution boards in accordance with IEC/EN 61439-3, for surface mounting, top with 46-mm device opening, sealable as standard, white base and cover with screw closure, knockout for metric cable entries on top 1x M20, bottom 1x M20, and back 2x M20, protection Class II, 2 space units. Please order window flap T2-MINI separately.

More details


Distribution boards > Small distribution board

Compact Distribution Boxes

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $4.81
Unit price: $4.81
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton xComfort Micro/Mini mini series
Catalog Number
177066
Model Code
MINI-2
EAN
4015081715091
Product Length/Depth
66 mm
Product Height
140 mm
Product Width
53 mm
Product Weight
0.08 kg
Compliances
RoHS conform
Certifications
IEC/EN 62208

Delivery program

Type
Basic deviceInstallation distribution boardMINI distribution board
Application
Indoor (installation site)
Color
White
Signal white (RAL 9003)

Technical data - electrical

Voltage rating at AC
400 V AC
Frequency rating of contacts
50 Hz

Technical data - mechanical

Closure type
Other
Enclosure material
Plastic
Width in number of modular spacings
2
Mounting method
DIN-rail
Surface mounted (plaster)
Surface mounting
Material
ABS (plastic)
Degree of protection
IP20
IK05 (impact resistance)
Number of module space units per row
2
Number of rows
1
Terminal type
Without terminals
Built-in depth
70 mm
Built-in height
0 mm
Built-in width
0 mm
Internal depth
60 mm
Cable entry postion
Metric cable entries on top and bottom, side, back plate
Cover/door model
With notch
Cover/door type
None
Other
Module rack type
Single-rail
Protective shrouding material
Plastic

Temperature-rise verification as per IEC 60890

Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
10 W
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
12 W

Design verification as per IEC 61439 - technical data

Ambient operating temperature details
-5 °C - 40 °C

Design verification as per IEC/EN 61439

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
650 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK05
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP20
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 400 V AC
10.9.3 Impulse withstand voltage
2.8 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.

Additional information

Features
EMC-version
Fitted with:
Basic device
Functions
Basic device
Protection class
II (totally insulated)
RAL-number
9003
Special features
IP20Protection Class IIPlastic housing white (RAL 9003)
Used with
Basic device
Installation distribution board
MINI distribution board

ETIM for 177066 Distribution boards (EC000214)
Feature Name Feature Value
Mounting method (EF000003) Surface mounted
Number of rows (EF000266) 1
Width in number of modular spacings (EF002950) 2
Type of covering (EF000339) None
Cover model (EF009212) With notch
Type of door (EF004464) Other
Transparent cover/door (EF006244) No
Signal passing door (EF015941) No
With lock (EF006306) No
Type of closure (EF004462) Other
Housing material (EF001596) Plastic
Built-in depth (EF000218) 70 mm
Built-in height (EF000332) 0 mm
Built-in width (EF000846) 0 mm
Inner depth (EF001131) 60 mm
Earthing terminal block (EF015776) No
Neutral terminal block (EF015777) No
DIN-rail (EF001134) Yes
With mounting plate (EF000118) No
Extension possible (EF001088) No
EMC-version (EF001062) Yes
Colour (EF000007) White
RAL-number (EF000116) 9003
Degree of protection (IP) (EF005474) IP20
Height (EF000040) 140 mm
Width (EF000008) 53 mm
Depth (EF000049) 66 mm

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
MINI-2 Y7-177066 177066 EN_177066.pdf 115 Kbytes MINI-2 Y7-177066 177066 EN_177066.pdf
