MICRO-4

177065

Y7-177065

EATON-MOELLER

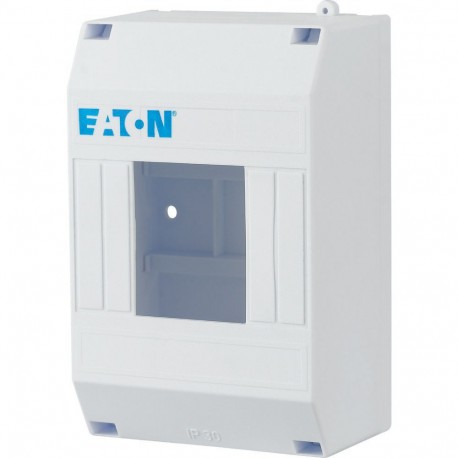

MICRO-4 Micro compact distribution board, 1-row 4 SU IP30

MICRO-4

Eaton xComfort Micro/Mini LV systems Final Distribution Boards. Micro compact distribution board, 1-row 4 SU IP30

Plastic micro compact distribution board, for installing switching and protective devices, in accordance with dimension standard DIN 43 880, with an installation depth of 70 mm and a current of up to 63 A, 400 V /50 Hz, IP30 degree of protection to IEC/EN 62208, approved for building service distribution boards in accordance with IEC/EN 61439-3, for surface mounting, top with 46-mm device opening, sealable as standard, white base and cover with screwless click technology, 1x 16.5mm knockout for cable entries on top and bottom, 4 space units.

More details


Distribution boards > Small distribution board

Compact Distribution Boxes

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $6.10
Unit price: $6.10
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton xComfort Micro/Mini LV systems Final Distribution Boards
Catalog Number
177065
Model Code
MICRO-4
EAN
4015081715084
Product Length/Depth
58 mm
Product Height
125 mm
Product Width
80 mm
Product Weight
0.12 kg
Compliances
RoHS conform
Certifications
IEC/EN 62208

Delivery program

Type
Basic deviceInstallation distribution boardMICRO distribution board
Application
Indoor (installation site)
Color
Signal white (RAL 9003)
White

Technical data - electrical

Voltage rating at AC
400 V AC
Frequency rating of contacts
50 Hz

Technical data - mechanical

Closure type
Other
Enclosure material
Plastic
Width in number of modular spacings
4
Mounting method
Surface mounted (plaster)
DIN-rail
Surface mounting
Material
ABS (plastic)
Degree of protection
IK05 (impact resistance)
IP30
Number of module space units per row
4
Number of rows
1
Terminal type
Without terminals
Built-in depth
70 mm
Built-in height
0 mm
Built-in width
0 mm
Internal depth
53 mm
Cable entry postion
Metric cable entries on top and bottom, back plate
Cover/door model
With notch
Cover/door type
None
Other
Module rack type
Single-rail
Protective shrouding material
Plastic

Temperature-rise verification as per IEC 60890

Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
10 W
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
12 W

Design verification as per IEC 61439 - technical data

Ambient operating temperature details
-5 °C - 40 °C

Design verification as per IEC/EN 61439

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
650 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK05
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP30
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 400 V AC
10.9.3 Impulse withstand voltage
2.8 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.

Additional information

Features
EMC-version
Fitted with:
Basic device
Functions
Basic device
Protection class
II (totally insulated)
RAL-number
9003
Special features
IP30Protection Class IIPlastic housing white (RAL 9003)
Used with
MICRO distribution board
Basic device
Installation distribution board

ETIM for 177065 Distribution boards (EC000214)
Feature Name Feature Value
Mounting method (EF000003) Surface mounted
Number of rows (EF000266) 1
Width in number of modular spacings (EF002950) 4
Type of covering (EF000339) None
Cover model (EF009212) With notch
Type of door (EF004464) Other
Transparent cover/door (EF006244) No
Signal passing door (EF015941) No
With lock (EF006306) No
Type of closure (EF004462) Other
Housing material (EF001596) Plastic
Built-in depth (EF000218) 70 mm
Built-in height (EF000332) 0 mm
Built-in width (EF000846) 0 mm
Inner depth (EF001131) 53 mm
Earthing terminal block (EF015776) No
Neutral terminal block (EF015777) No
DIN-rail (EF001134) Yes
With mounting plate (EF000118) No
Extension possible (EF001088) No
EMC-version (EF001062) Yes
Colour (EF000007) White
RAL-number (EF000116) 9003
Degree of protection (IP) (EF005474) IP30
Height (EF000040) 125 mm
Width (EF000008) 80 mm
Depth (EF000049) 58 mm

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
MICRO-4 Y7-177065 177065 EN_177065.pdf 116 Kbytes MICRO-4 Y7-177065 177065 EN_177065.pdf
