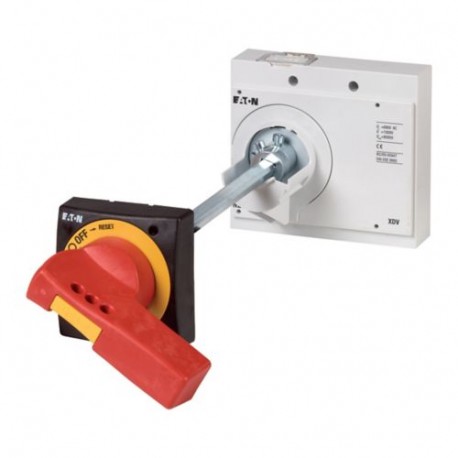

NZM4-XHBR 271842 EATON ELECTRIC Main switch assembly kit, red
NZM4-XHBR
271842
EATON-MOELLER
Main switch assembly kit, red
NZM4-XHBR
Low-voltage industrial components > Handle for power circuit breaker
Circuit Breakers NZM Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Main switch assembly kit, red
Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Door coupling rotary handle with rotary drive. Extension shaft NZM..-XV4. External warning plate/marking plate in German/English, black and yellow flash. External warning plate/marking plate can be clipped on. For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger. With red door coupling rotary handle for use of switch as emergency switching off device to IEC/EN 60204-1, VDE 0113 part 1 . Lockable on the 0 position on the handle using up to 3 padlocks. Lockable door and locking facility on switch in 0 position. Can be used for: NZM4(-4), N(N/O)4(-4)
General specifications
Product name
Eaton Moeller series NZM operating element
Part no.
NZM4-XHBR
EAN
4015082718428
Product Length/Depth
250 millimetre
Product height
165 millimetre
Product width
165 millimetre
Product weight
1.941 kilogram
Compliances
IEC
UL/CSA
RoHS conform
UL/CSA
RoHS conform
Certifications
CSA certified
UL listed
UL489
CSA (File No. 22086)
UL (Category Control Number DIHS)
IEC60947
UL (File No. E140305)
CSA (Class No. 1437-01)
CSA-C22.2 No. 5-09
CE marking
UL listed
UL489
CSA (File No. 22086)
UL (Category Control Number DIHS)
IEC60947
UL (File No. E140305)
CSA (Class No. 1437-01)
CSA-C22.2 No. 5-09
CE marking
Product Tradename
NZM
Product Type
Accessories
Product Sub Type
Operating element
Delivery program
Type
Accessory
Main switch assembly kit
Main switch assembly kit
Features
Lockable
With red door coupling rotary handle for use of switch as emergency switching off device to IEC/EN 60204-1, VDE 0113 part 1
With red door coupling rotary handle for use of switch as emergency switching off device to IEC/EN 60204-1, VDE 0113 part 1
Special features
External warning plate/designation label can be clipped on.
For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.
Kit for use as a main switch
For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.
Kit for use as a main switch
Frame
NZM4
Fitted with:
Extension shaft
Door coupling rotary handle with rotary drive
NZM...-XV4 extension shaft
Black and yellow lightning symbol
External warning plate/marking plate in German/English
Padlock
Door coupling rotary handle with rotary drive
NZM...-XV4 extension shaft
Black and yellow lightning symbol
External warning plate/marking plate in German/English
Padlock
Suitable for
Switch disconnector
Power circuit breaker
Emergency stop
Power circuit breaker
Emergency stop
Used with
NZM4(-4)
N(S)4(-4)
N(S)4(-4)
Technical Data - Mechanical
Color
Black
Cover/door type
Door interlock not defeated in the locked OFF position.
Door interlock on OFF with max. 3 padlocks
After the door interlock is activated, must not be opened while on ON or TRIP. Must only be opened on OFF
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
Door interlock can only be switched ON when the door is closed
Door interlock on OFF with max. 3 padlocks
After the door interlock is activated, must not be opened while on ON or TRIP. Must only be opened on OFF
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
Door interlock can only be switched ON when the door is closed
Degree of protection / NEMA enclosure type
IP66
4X. 12
4X. 12
Locking facility
Lockable on the switch in the 0 position
With door interlock
Lockable on the 0 position on the handle using up to 3 padlocks
With door interlock
Lockable on the 0 position on the handle using up to 3 padlocks
Special features
External warning plate/designation label can be clipped on.
For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.
Kit for use as a main switch
For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.
Kit for use as a main switch
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 9.0
Low-voltage industrial components (EG000017) / Handle for power circuit breaker (EC000229)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Handle for switch devices (ecl@ss13-27-37-04-14 [AKF012019])
With restart blockage
No
With key lock
No
Padlock locking
Yes
Colour
Black
Suitable for emergency stop
Yes
With extension shaft
Yes
Suitable for power circuit breaker
Yes
Suitable for switch disconnector
Yes
Degree of protection (NEMA)
4X, 12
