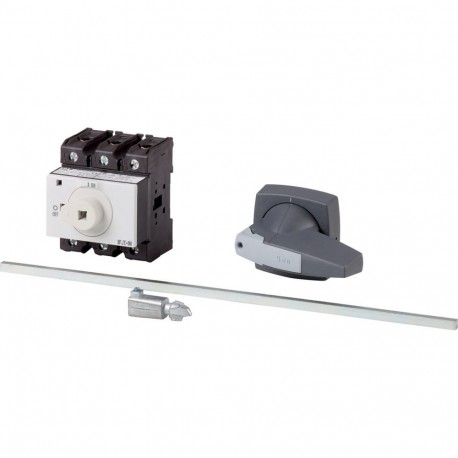

P3-63/M4/K2-PG 172811 Y7-172811 EATON ELECTRIC Main switch, 3 pole, 63 A, Emergency stop function, Lockable ..
P3-63/M4/K2-PG
172811
Y7-172811
EATON-MOELLER
Main switch, 3 pole, 63 A, Emergency stop function, Lockable in the 0 (Off) position, rear mounting, with 400 mm metal shaft
P3-63/M4/K2-PG
Eaton Moeller® series P3 Main switch, P3, 63 A, rear mounting, 3 pole, STOP function, with black rotary handle and lock ring (K series), Lockable in the 0 (Off) position, With metal shaft for a control panel depth of 400 mm
Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Stop Function: STOP function, With black rotary handle and locking ring, Notes: With metal shaft for a control panel depth of 400 mm, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
Low-voltage industrial components > Switch disconnector
Disconnectors and Cam Switches
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
VDE 0660
IEC/EN 60947
IEC/EN 60947-3
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 63 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 63 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 63 A |
| Rated operation power at AC-3, 400 V (EF001364) | 30 kW |
| Rated short-time withstand current lcw (EF007050) | 1.26 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 30 kW |
| Switching power at 400 V (EF009166) | 30 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 100 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | Yes |
| Colour control element (EF007167) | Grey |
| Type of control element (EF006976) | Short thumb-grip |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| With pre-assembled cabling (EF016444) | No |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Width (EF000008) | 100 mm |
| Height (EF000040) | 84 mm |
| Depth (EF000049) | 340 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON SAFE SWITCHING EN.pdf | 935 Kbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| P3-63/M4/K2-PG Y7-172811 172811 ES_172807.pdf | 2 Mbytes |
|
