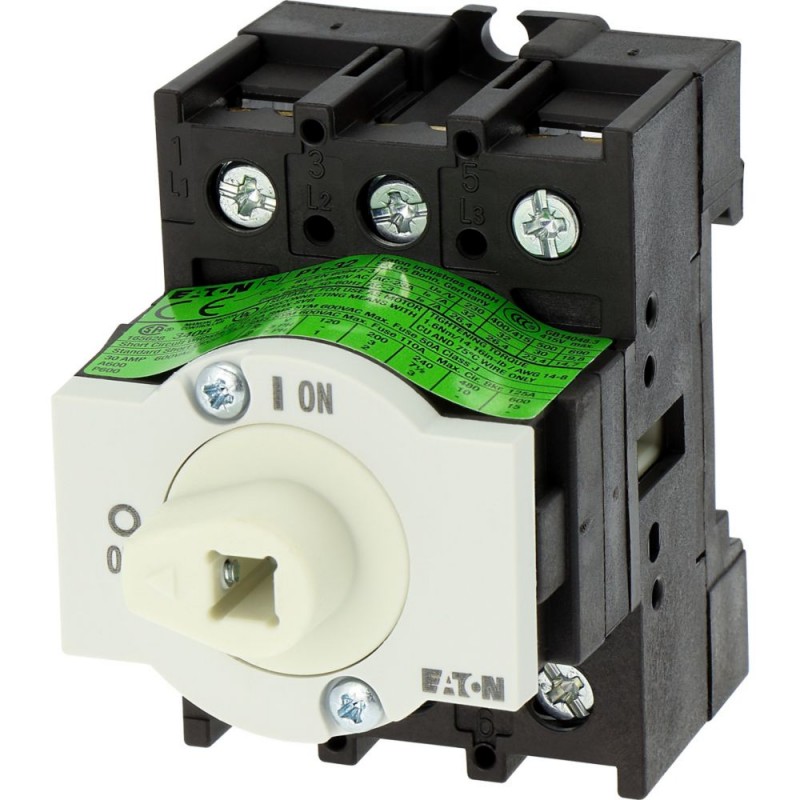

P1-32/XM 172835 Y7-172835 EATON ELECTRIC Main switch, 3 pole, 32 A, rear mounting
P1-32/XM
172835
Y7-172835
EATON-MOELLER
Main switch, 3 pole, 32 A, rear mounting
P1-32/XM
Eaton Moeller® series P1 Main switch, P1, 32 A, rear mounting, 3 pole
Main switch, P1, Rated uninterrupted current (Iu): 32 A, Mounting method: Rear mounting, Number of poles: Three-pole, Degree of Protection: NEMA 1
Low-voltage industrial components > Switch disconnector
Disconnectors and Cam Switches
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
CSA-C22.2 No. 94
IEC/EN 60204
VDE 0660
IEC/EN 60947
UL
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA
UL File No.: E36332
CE
UL 60947-4-1
UL Category Control No.: NLRV
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 32 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 32 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 32 A |
| Rated operation power at AC-3, 400 V (EF001364) | 13 kW |
| Rated short-time withstand current lcw (EF007050) | 0.64 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 15 kW |
| Switching power at 400 V (EF009166) | 15 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | Yes |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Other |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| With pre-assembled cabling (EF016444) | No |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | 1 |
| Width (EF000008) | 49 mm |
| Height (EF000040) | 70 mm |
| Depth (EF000049) | 75 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON SAFE SWITCHING EN.pdf | 935 Kbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| P1-32/XM Y7-172835 172835 ES_199940.pdf | 1 Mbytes |
|
