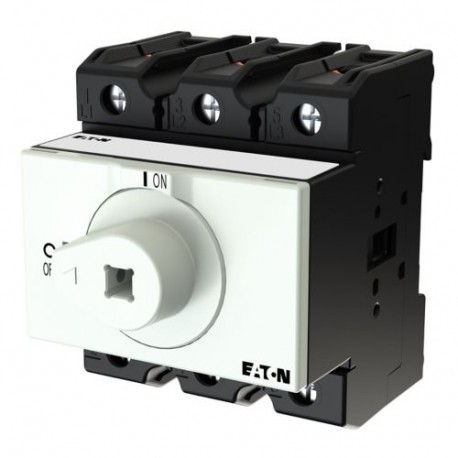

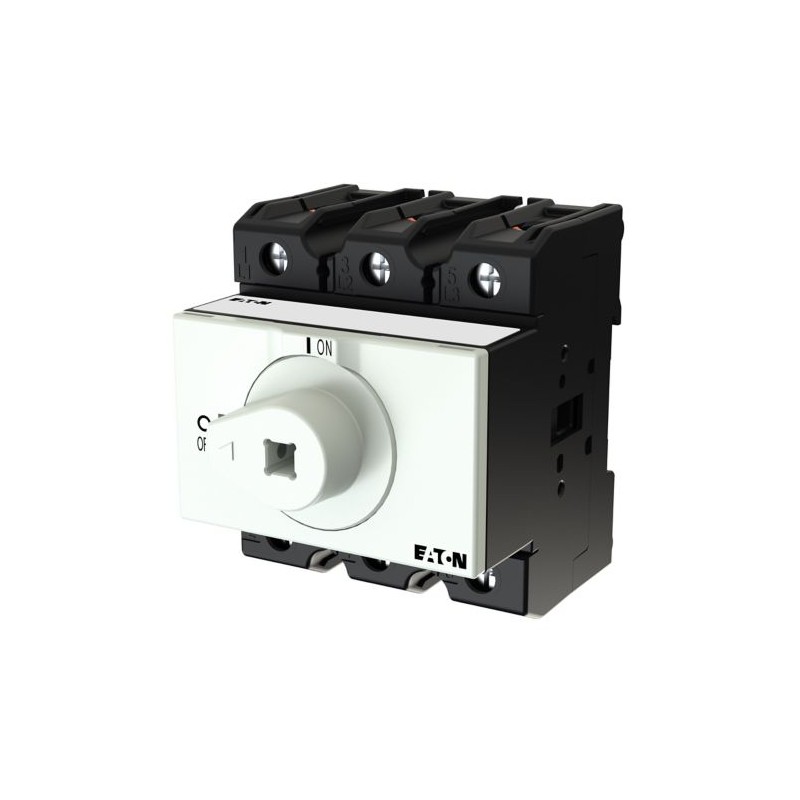

P3-100/XM 172837 Y7-172837 EATON ELECTRIC Main switch, 3 pole, 100 A, rear mounting
P3-100/XM
172837
Y7-172837
EATON-MOELLER
Main switch, 3 pole, 100 A, rear mounting
P3-100/XM
Eaton Moeller® series P3 Main switch, P3, 100 A, rear mounting, 3 pole
Main switch, Product range: Main switch, maintenance switch, Part group reference: P3, Notes: Handle SVB(-SW)-P3/M (172841; 172843) only for use with extension shaft P1/P3-400 (172844)., Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
Low-voltage industrial components > Switch disconnector
Disconnectors and Cam Switches
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Often bought together
▲Best sellers
▲More info
▲General specifications
IEC/EN 60947-3
CSA
UL File No.: E36332
UL
CE
IEC/EN 60947
IEC/EN 60204
CSA-C22.2 No. 94
CSA Class No.: 3211-05
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
VDE 0660
UL 60947-4-1
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 100 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 100 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 100 A |
| Rated operation power at AC-3, 400 V (EF001364) | 37 kW |
| Rated short-time withstand current lcw (EF007050) | 2 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 55 kW |
| Switching power at 400 V (EF009166) | 55 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | Yes |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Other |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| With pre-assembled cabling (EF016444) | No |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | 1 |
| Width (EF000008) | 72 mm |
| Height (EF000040) | 84 mm |
| Depth (EF000049) | 82 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON SAFE SWITCHING EN.pdf | 935 Kbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| P3-100/XM Y7-172837 172837 ES_172807.pdf | 2 Mbytes |
|
