EATON - MOELLERAuxiliary Control and Signalling ElementsM22-XDP-S-D18 218280 Y7-218280 EATON ELECTRIC M22-XDP-S-D18Q Button plate, mushroom black, DECREASE

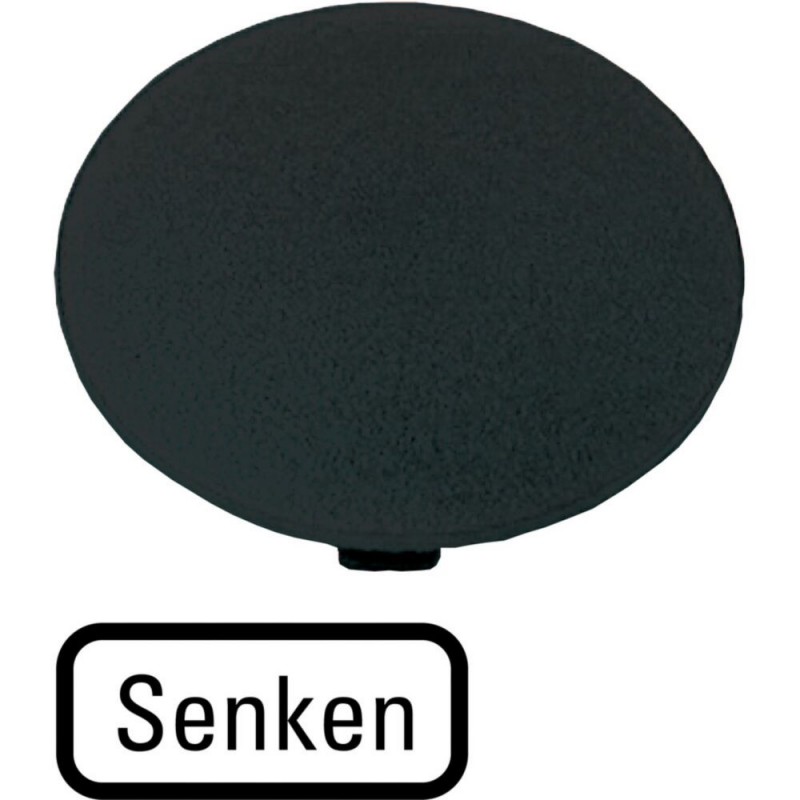

EATON - MOELLER M22-XDP-S-D18 218280 Y7-218280 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

M22-XDP-S-D18 218280 Y7-218280 EATON ELECTRIC M22-XDP-S-D18Q Button plate, mushroom black, DECREASE

Reference: M22-XDP-S-D18

Code: 218280

Catalog Number: Y7-218280

Manufacturer: EATON - MOELLER

Description:

M22-XDP-S-D18Q Button plate, mushroom black, DECREASE
M22-XDP-S-D18
Eaton Moeller® series M22 Button plate, mushroom black, DECREASE
Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Inscription: Senken, Selection to: Text, For use with: M22(S)-D(R)P-…, Connection to SmartWire-DT: no

Categories:

  • Low-voltage industrial components > Legend plate for control circuit devices
  • EATON - MOELLER > Auxiliary Control and Signalling Elements

Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2,64 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
218280
Model Code
M22-XDP-S-D18
EAN
4015082182809
Product Length/Depth
24 mm
Product Height
9 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required

ETIM for 218280 Low-voltage industrial controls and switchgear (EC000621)

Feature nameShape (EF000051)
Feature valueRound
Feature nameConstruction type (EF000767)
Feature valueFlat
Feature nameColour (EF000007)
Feature valueBlack
Feature nameLiteral imprint (EF015918)
Feature valueLower
Feature nameLanguage of the imprint (EF015922)
Feature valueGerman
Feature nameImprint ISO symbols (EF006094)
Feature valueNone
Feature nameImprint (EF000131)
Feature valueOther
Feature nameEngravable (EF005877)
Feature valueNo
Feature nameProgramme diameter (EF001539)
Feature value22 mm
Feature nameWidth (EF000008)
Feature value24 mm
Feature nameHeight (EF000040)
Feature value9 mm
Feature nameOuter diameter (EF000015)
Feature value22.5 mm
Feature nameSuitable for push button (EF007244)
Feature valueNo
Feature nameSuitable for illuminated push buttons (EF007254)
Feature valueNo
Feature nameSuitable for indicator light (EF007255)
Feature valueNo
Feature nameSuitable for mushroom head push button (EF007257)
Feature valueYes
Feature nameSuitable for signalling lamp (EF007261)
Feature valueNo
Feature nameSuitable for selector switch (EF007263)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
M22-XDP-S-D18 Y7-218280 218280 EN_289241.pdf
3 Mbytes
PDF EATON COMMAND INDICATION EN
24 Mbytes
PDF CATALOGUE EATON EN
38 Mbytes
