EATON - MOELLERAuxiliary Control and Signalling ElementsM22-XDL-W-D18 218325 Y7-218325 EATON ELECTRIC Button lens, flat white, DECREASE

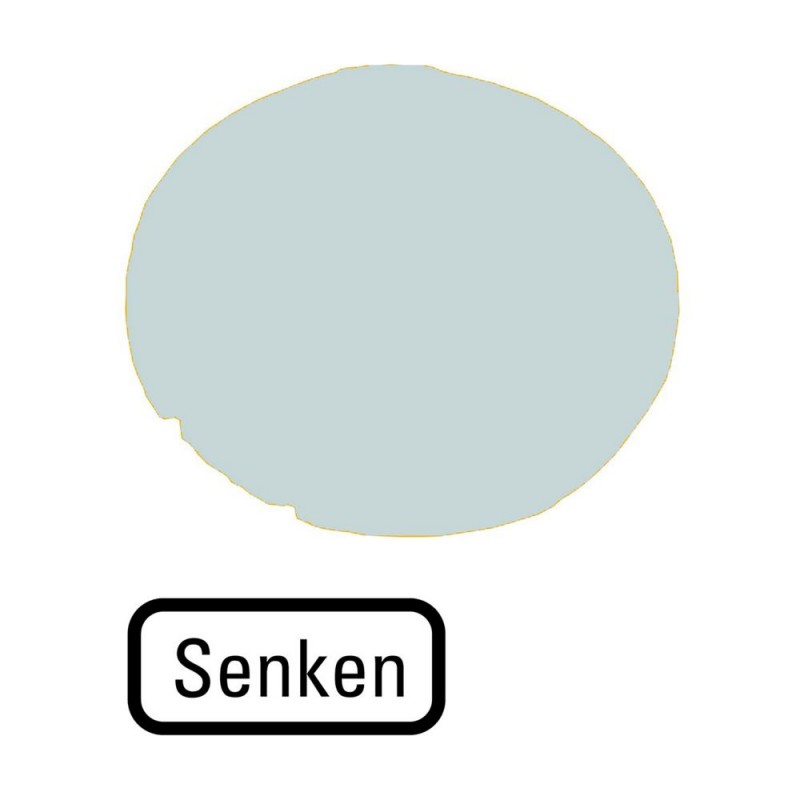

EATON - MOELLER M22-XDL-W-D18 218325 Y7-218325 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

M22-XDL-W-D18 218325 Y7-218325 EATON ELECTRIC Button lens, flat white, DECREASE

Reference: M22-XDL-W-D18

Code: 218325

Catalog Number: Y7-218325

Manufacturer: EATON - MOELLER

Description:

Button lens, flat white, DECREASE
M22-XDL-W-D18
Eaton Moeller® series M22 Button lens, flat white, DECREASE
Button lens, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Inscription: Senken, Selection to: Text, For use with: M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, M30C-FDRL-X, Connection to SmartWire-DT: no

Categories:

  • Low-voltage industrial components > Hood/lens for circuit control devices
  • EATON - MOELLER > Auxiliary Control and Signalling Elements

Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2,64 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button lens
Catalog Number
218325
Model Code
M22-XDL-W-D18
EAN
4015082183257
Product Length/Depth
24 mm
Product Height
3 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required

Features & Functions

Design
Flat
Inscription
Individual inscription possible: ≤ 5 characters: letter height 5 mm
Individual inscription possible: > 5 characters: letter height 3 mm
Lens color
White

General

Product category
Accessories
Type
Button lenses

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 218325 Low-voltage industrial controls and switchgear (EC001072)

Feature nameColour lens (EF000207)
Feature valueWhite
Feature nameShape of lens (EF001371)
Feature valueRound
Feature nameConstruction type (EF000767)
Feature valueFlat
Feature nameLabelled (EF001537)
Feature valueNo
Feature nameBuilt-in diameter (EF000943)
Feature value22.5 mm
Feature nameDiameter (EF000551)
Feature value22.2 mm
Feature nameWidth (EF000008)
Feature value24 mm
Feature nameHeight (EF000040)
Feature value3 mm

DATASHEET - PDF

Title
Size
Type
M22-XDL-W-D18 Y7-218325 218325 EN_289241.pdf
3 Mbytes
PDF EATON COMMAND INDICATION EN
