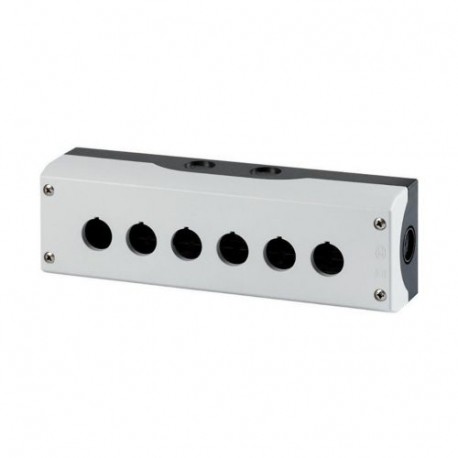

M22-I6-* 197636 Y7-197636 EATON ELECTRIC M22-I6-*
M22-I6-*
197636
Y7-197636
EATON-MOELLER
M22-I6-*

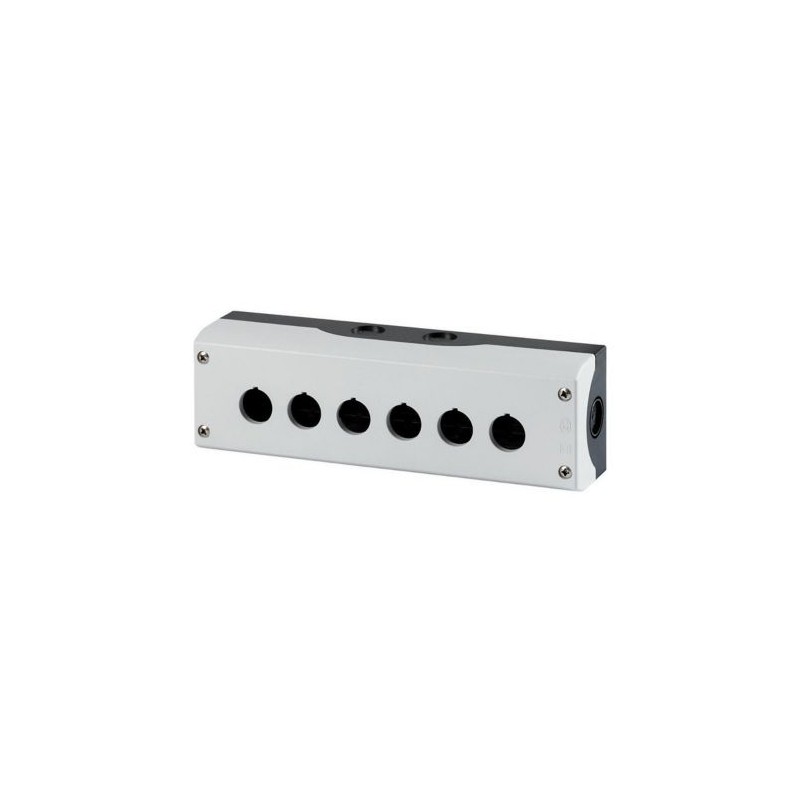

Eaton Moeller® series M22 Surface-mounting enclosure, RAL 7035, Individually markable with pushbutton configurator, Number of locations: 6, Cable entry: rear: 2 x M20, at top: 2 x M20, lateral: 2 x M20/M25 (1 x each side)
Housing: Insulated material, With high-grade steel screws, Individually markable with pushbutton configurator, Number of locations: 6, Cable entry: rear: 2 x M20, at top: 2 x M20, lateral: 2 x M20/M25 (1 x each side), Color RAL Value: RAL 7035, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: 6 x 22.5, For use with: (Illuminated) pushbuttons, (Illuminated) selector switches, Key-operated pushbuttons, Indicator light, controlled stop/emergency-stop buttons with yellow label
Low-voltage industrial components > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 6 |
| Construction type housing (EF004008) | Surface mounting housing |
| Housing material (EF001596) | Plastic |
| Housing material quality (EF024143) | Other |
| Diameter openings (EF000243) | 22.5 mm |
| Colour housing cover (EF001373) | Grey |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
| Width (EF000008) | 252 mm |
| Height (EF000040) | 56 mm |
| Depth (EF000049) | 80 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| M22-I6-* Y7-197636 197636 EN_197636.pdf | 106 Kbytes |
|
