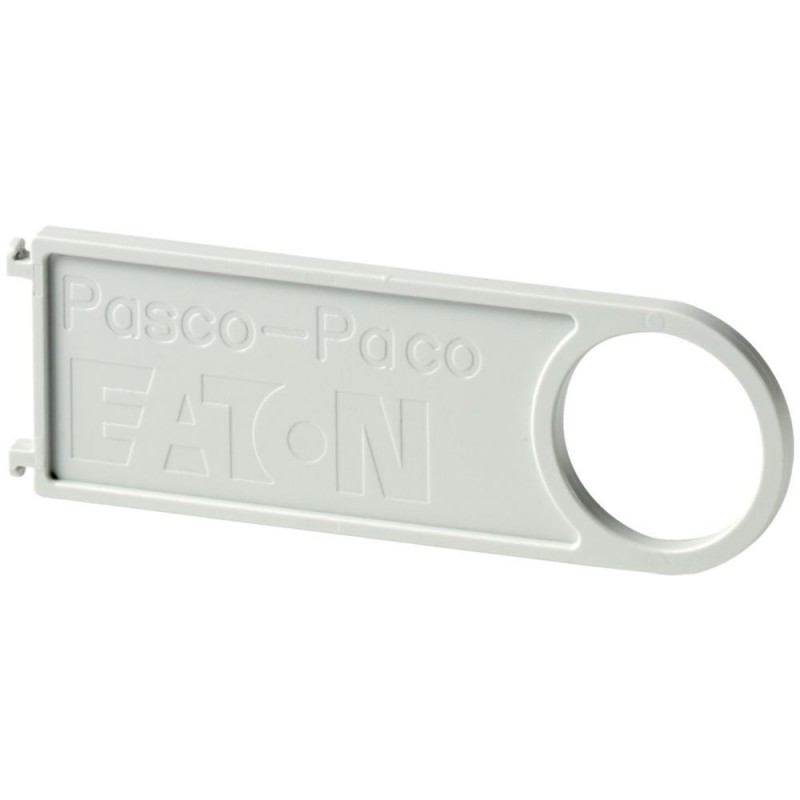

LPC-ADAPTERKEY 1713629 Y8-1713629 EATON ELECTRIC Fixing pin PMX1100 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

LPC-ADAPTERKEY 1713629 Y8-1713629 EATON ELECTRIC Fixing pin PMX1100

LPC-ADAPTERKEY

1713629

Y8-1713629

EATON-MOELLER

Fixing pin PMX1100

Eaton Bussmann Series Fixing rating plug key PMX1100

LPC fuse switch-disconnector, keying for adapter plates

More details


Connectors > Cable connector

Industrial Fuse Bases

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $4.65
Unit price: $4.65
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton LPC Fuse switch-disconnector
Catalog Number
1713629
Model Code
LPC-ADAPTERKEY
EAN
8711426852006
Product Length/Depth
141 mm
Product Height
5 mm
Product Width
69 mm
Product Weight
0.006 kg
Compliances
CE

General

Suitable for
DII
DIII
Type
Adapter plate Mounting tool

Design verification

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Not applicable.
10.12 Electromagnetic compatibility
Not applicable.
10.13 Mechanical function
Not applicable.

ETIM for 1713629 Hand tools (EC000154)
Feature Name Feature Value
Isolation protection 1000 V (EF001463) No
Material handle (EF006500) Plastic
Suitable for DI (EF008683) No
Suitable for DII (EF008684) Yes
Suitable for DIII (EF008685) Yes
Suitable for DIV (EF008686) No
Suitable for DV (EF008687) No

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf 8 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
LPC-ADAPTERKEY Y8-1713629 1713629 ES_1713607.pdf 2 Mbytes LPC-ADAPTERKEY Y8-1713629 1713629 ES_1713607.pdf
