> EATON - MOELLER>Auxiliary Control and Signalling Elements >L25LF-RT 025423 Y7-25423 ELECTRIC Lens, indicator light, flat, red
Previous Product Next Product

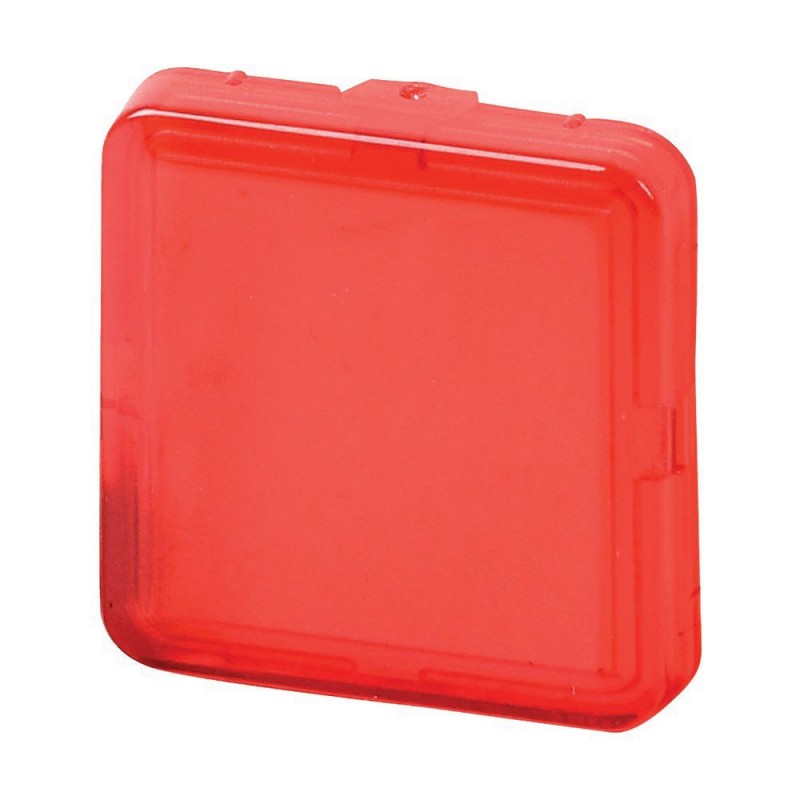

L25LF-RT 025423 Y7-25423 EATON ELECTRIC Lens, indicator light, flat, red View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

L25LF-RT 025423 Y7-25423 EATON ELECTRIC Lens, indicator light, flat, red

L25LF-RT

025423

Y7-25423

EATON-MOELLER

Lens, indicator light, flat, red

Plate indicator; Transparent; Red; For RMQ16 25x25

Eaton Moeller® series RMQ16 Lens for indicator light, 25 mm

This red, flat lens fits on the RMQ16 indicator lights with 25x25 mm front dimensions

More details


Low-voltage industrial components > Hood/lens for circuit control devices

Auxiliary Control and Signalling Elements

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series RMQ16 Accessory Lens
Catalog Number
025423
Model Code
L25LF-RT
EAN
4015080254232
Product Length/Depth
5 mm
Product Height
21 mm
Product Width
21 mm
Product Weight
0.002 kg
Compliances
CE

Features & Functions

Design
Flat
Fitted with:
Customized inscription using the Label Editor
Lens color
Red

General

Product category
Accessories
Type
Lenses for indicator lights

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 025423 Low-voltage industrial controls and switchgear (EC001072)
Feature Name Feature Value
Colour lens (EF000207) Red
Shape of lens (EF001371) Square
Construction type (EF000767) Flat
Labelled (EF001537) No
Built-in diameter (EF000943) 16 mm
Diameter (EF000551) 0 mm
Width (EF000008) 21 mm
Height (EF000040) 21 mm

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
L25LF-RT Y7-25423 025423 EN_025434.pdf 1 Mbytes L25LF-RT Y7-25423 025423 EN_025434.pdf
