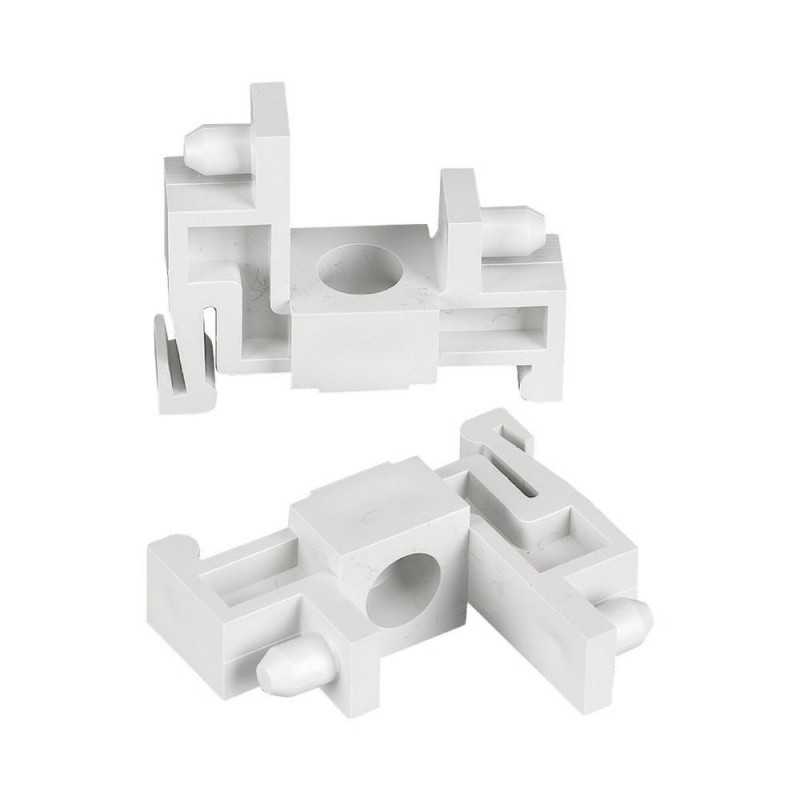

KT-3 275445 2456005 EATON ELECTRIC Support for connecting KT-3, horizontal
KT-3
275445
2456005
EATON-MOELLER
Support for connecting KT-3, horizontal
KT-3
KT-3 terminal support, horizontal
Cabinet enclosures > Component for installation (switchgear cabinet)
Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲KT-3 terminal support, horizontal
For the insulated installation of KL terminal bars in service distribution boards
General specifications
Product name
Eaton xEnergy Basic installation component
Part no.
KT-3
EAN
4015082754457
Product Length/Depth
40 millimetre
Product height
15 millimetre
Product width
42 millimetre
Product weight
0.006 kilogram
Compliances
RoHS conform
Product Tradename
xEnergy Basic
Product Type
Accessories
Product Sub Type
Installation component
Delivery program
Type
Additional equipment for BF flat distribution board
Model
Other
Accessory/spare part type
General
Color
Gray
Technical Data - Mechanical
Mounting method
Flush mounting
Surface mounting
Floor standing distribution board
Surface mounting
Floor standing distribution board
Material
Plastic
Load capacity - max
0 kg
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Additional information
Functions
Additional equipment
RAL-number
7035
Used with
Terminal support bars
Technical data ETIM 9.0
Cabinet enclosures (EG000011) / Components for installation (enclosure/cabinet) (EC002620)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Component for installation (electrical cabinet) (ecl@ss13-27-18-28-11 [ACN627016])
Model
Other
Suitable for enclosure building width
0 mm
Suitable for enclosure building height
0 mm
Suitable for enclosure building depth
0 mm
Width
42 mm
Height
15 mm
Depth
40 mm
Max. load capacity
0 kg
Material
Plastic
Colour
Grey
RAL-number
7035
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| KT-3 2456005 275445 EN_275445.pdf | 105 Kbytes |
 |
