> EATON - MOELLER>Circuit Breakers IZM >+IZMX-UVR60DC-1 184111 Y7-184111 ELECTRIC Shutter minimum voltage 60 VDC. Can only be sold assembled.
Previous Product Next Product

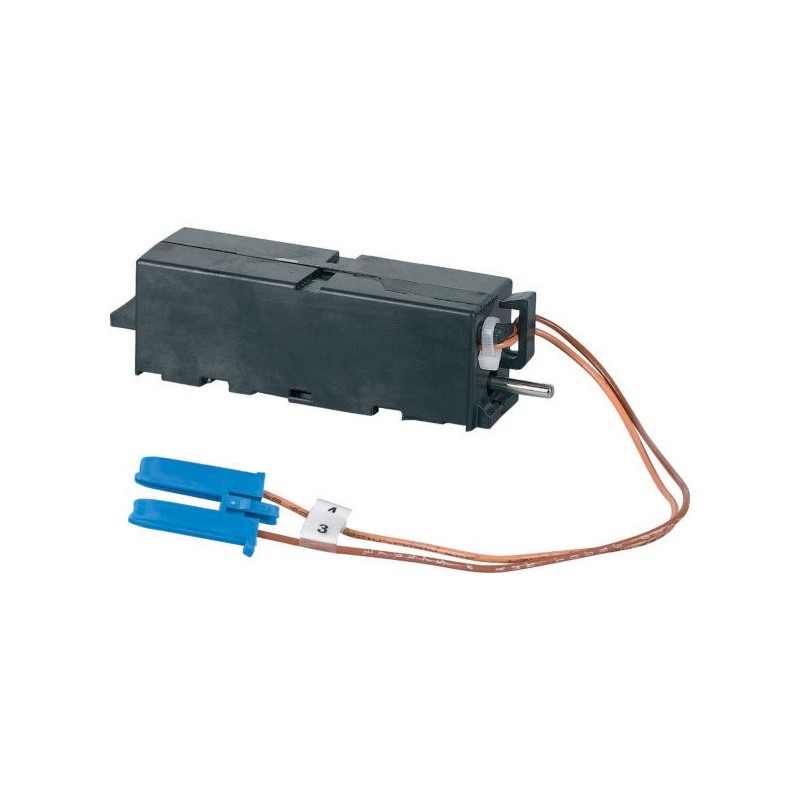

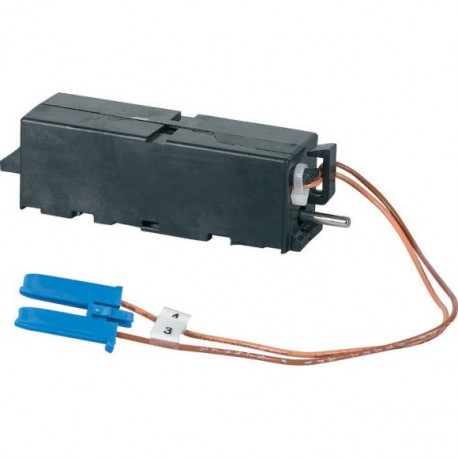

+IZMX-UVR60DC-1 184111 Y7-184111 EATON ELECTRIC Shutter minimum voltage 60 VDC. Can only be sold assembled. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

+IZMX-UVR60DC-1 184111 Y7-184111 EATON ELECTRIC Shutter minimum voltage 60 VDC. Can only be sold assembled.

+IZMX-UVR60DC-1

184111

Y7-184111

EATON-MOELLER

Shutter minimum voltage 60 VDC. Can only be sold assembled.

+IZMX-UVR60DC-1

Undervoltage release 60 VDC

More details


Circuit Breakers IZM

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Go to successor article: IZMX-UVR60DC-1 184112

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Undervoltage release 60 VDC
Accessories, Undervoltage release, Cannot be combined with a second shunt release., Maximum operating frequency Actuations/minute 3, Limited to 3/min due to the high pick-up current for 35 ms., Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 60 V DC V, Operating range x US 0,85 - 1,1 Factor, max. holding current In 0.07 A, max. pick-up current (35ms) In 12.5 A, max. continuous power AC/DC 5 VA/W, max. pull-in power (35ms) AC/DC 890 VA/W, Circuit-breaker total switching time @ US=100% 37 ms, For use with IZMX16..., IZMX40..., INX16..., INX40...

General specifications
Product name
Eaton Moeller series IZMX/INX undervoltage release
Part no.
+IZMX-UVR60DC-1
EAN
4015081796465
Product Length/Depth
150 millimetre
Product height
100 millimetre
Product width
100 millimetre
Product weight
0.091 kilogram
Compliances
RoHS conform
Product Tradename
IZMX/INX
Product Type
Accessories
Product Sub Type
Undervoltage release
Delivery program
Type
Accessory
Special features
Cannot be combined with a second shunt release.
Limited to 3/min due to the high pick-up current for 35 ms.
Please note - the circuit-breaker's switching frequency = 60/h
Suitable for
Off-load switch
Power circuit breaker
Used with
INX16..., INX40...
IZMX16..., IZMX40...
Technical Data - Electrical
Voltage type
DC
Control voltage operating range
60 V DC
0.85 - 1.1 x Us
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
60 V
Rated control supply voltage (Us) at DC - max
60 V
Current rating - max
0.07 A (maximum holding current)
Rated operational current
0.07 A (maximum holding current)
Power consumption
5 VA/W AC/DC
Pick-up power consumption at 35 ms - max
890 VA/W
Circuit breaker total switching time
50 ms (Us = 100%) (IZMX16…, INX16…)
40 ms (Us = 100%) (IZMX40…, INX40…)
Electric connection type
Flat plug-in connection
Technical Data - Mechanical
Number of actuation per minute - max
3
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Additional information
Accessory/spare part type
Remote switching

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
+IZMX-UVR60DC-1 Y7-184111 184111 EN_184111.pdf 105 Kbytes +IZMX-UVR60DC-1 Y7-184111 184111 EN_184111.pdf
