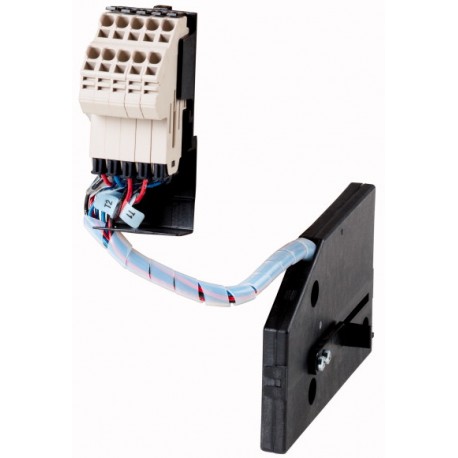

IZMX-CS40 124287 EATON MOELLER IZMX-CS40 Cell switch contacts, 2C/O View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

IZMX-CS40 124287 EATON MOELLER IZMX-CS40 Cell switch contacts, 2C/O

IZMX-CS40

124287

EATON - MOELLER

Available

Ship on today

IZMX-CS40 Cell switch contacts, 2C/O

More details


* Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

Quantity Price
1+$176.50
2+$169.78
3+$166.64
4+$164.69
5+$163.64
*This price is per unit and is the net value (not including taxes if applicable).

Related products

More info



Delivery programme
Product range
  Accessories
Accessories
  Withdrawable units
Accessories
  Position signalling switches

  One changeover contact for position Disconnected, Test, Connected
for fitting to left or right
For use with
  IZMX-CAS40…
Instructions
  For external application
Technical data
Rated breaking capacity
Inductive load

250 V AC
 A10
125 V DC
 A0.5
250 V DC
 A0.25
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Auxiliary contact block (EC000041)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Auxiliary switch block (ecl@ss8.1-27-37-13-02 [AKN342010])
Number of contacts as change-over contact
  1
Number of contacts as normally open contact
  2
Number of contacts as normally closed contact
  2
Rated operation current Ie at AC-15, 230 V
 A10
Type of electric connection
  Flat plug-in connection
Model
  Half-integrated
Mounting method
  Floor fastening

Datasheet - PDF

Title: Language: Size: Type:
pdf-IZMX-CS40 Cell switch contacts, 2C/O - EATON - IZMX-CS40 - 124287 English 133 Kbytes pdf-IZMX-CS40 Cell switch contacts, 2C/O - EATON - IZMX-CS40 - 124287
