> >>Z-RC/230 101428 ELECTRIC Interference suppression component RC combination 12-250 VAC
Previous Product Next Product

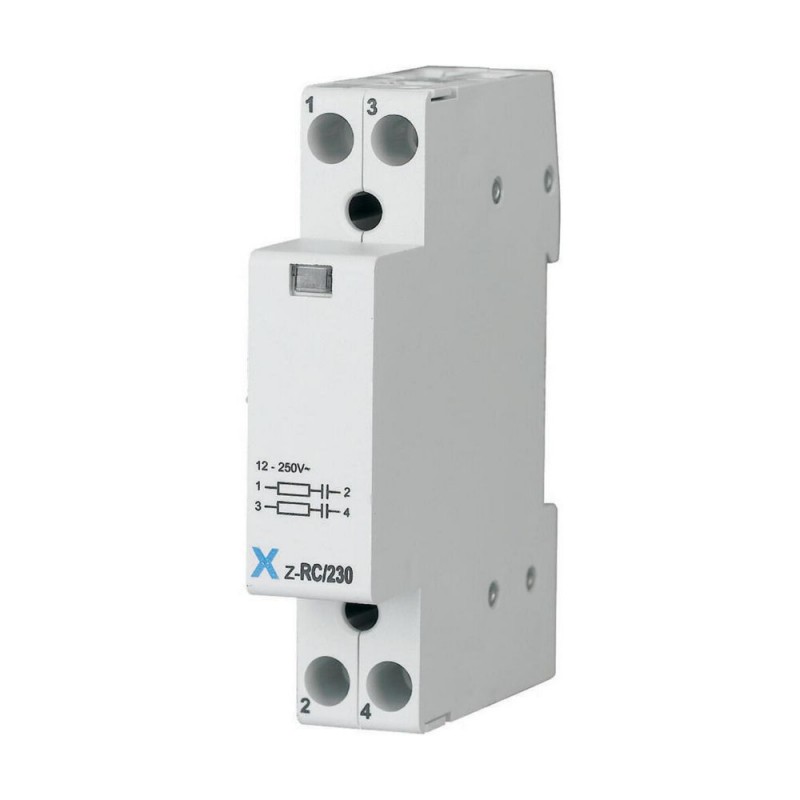

Z-RC/230 101428 EATON ELECTRIC Interference suppression component RC combination 12-250 VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

Z-RC/230 101428 EATON ELECTRIC Interference suppression component RC combination 12-250 VAC

Z-RC/230

101428

EATON-MOELLER

Interference suppression component RC combination 12-250 VAC

Z-RC/230

More details


Devices for distribution board-/surface mounting > Auxiliary device for distribution board devices

Modular Switchgear – Others and Accessories

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $92.55
Unit price: $92.55

Quantity Price
1+$92.55
2+$78.79
3+$72.83
4+$70.96
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Interference suppression component RC combination 12-250 VAC
Suppressor components RC combination 12-250 VAC

General specifications
Product name
Eaton Distribution parts
Part no.
Z-RC/230
EAN
4015081013487
Product Length/Depth
90 millimetre
Product height
37 millimetre
Product width
73 millimetre
Product weight
0.05 kilogram
Compliances
RoHS conform
Product Tradename
None
Product Type
Distribution parts
Product Sub Type
None
Public Consumption
Yes
Product Family Description
ES-PMCC-PDC-Eaton Distribution parts
Globally Marketable
Yes
Product Specification Details
Additional equipment required
Other
Ambient operating temperature - max
60 °C
Ambient operating temperature - min
-40 °C
Assembly width
2
Device fitting
Universal
Equipment heat dissipation, current-dependent
0 W
Heat dissipation capacity
0 W
Heat dissipation per pole, current-dependent
0 W
Main contact unit current rating - max
0 A
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0
Number of poles at main contact unit - max
0
Number of switches (fault signal)
0
Rated operational current for specified heat dissipation (In)
0 A
Rated operational voltage (Ue) - max
250 V
Rated switch current
0 A
Rated switch current [7EF006706]
A
Rated voltage [7EF000228]
V
Static heat dissipation, non-current-dependent
1.2 W
Suitable for max. current main contact unit [7EF008730]
A
Voltage type
AC

Technical data ETIM 8.0

Devices for distribution board-/surface mounting (EG000062) / Auxiliary device for distribution board devices (EC001286)
Electric engineering, automation, process control engineering / Electrical installation, device / Breaker switch component / Auxiliary contact unit for distribution board ([email protected] [AKE327013])
Device fitting
Universal
Additional equipment
Other
Installed at the factory
No
Width in number of modular spacings
2
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Number of fault-signal switches
0
Rated switch current
0 A
Rated voltage
250 V
Voltage type for actuating
AC
With auto test for earth leakage function
No
Suitable for max. number of poles main contact unit (total)
0
Suitable for max. current main contact unit
0 A

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf 8 Mbytes
