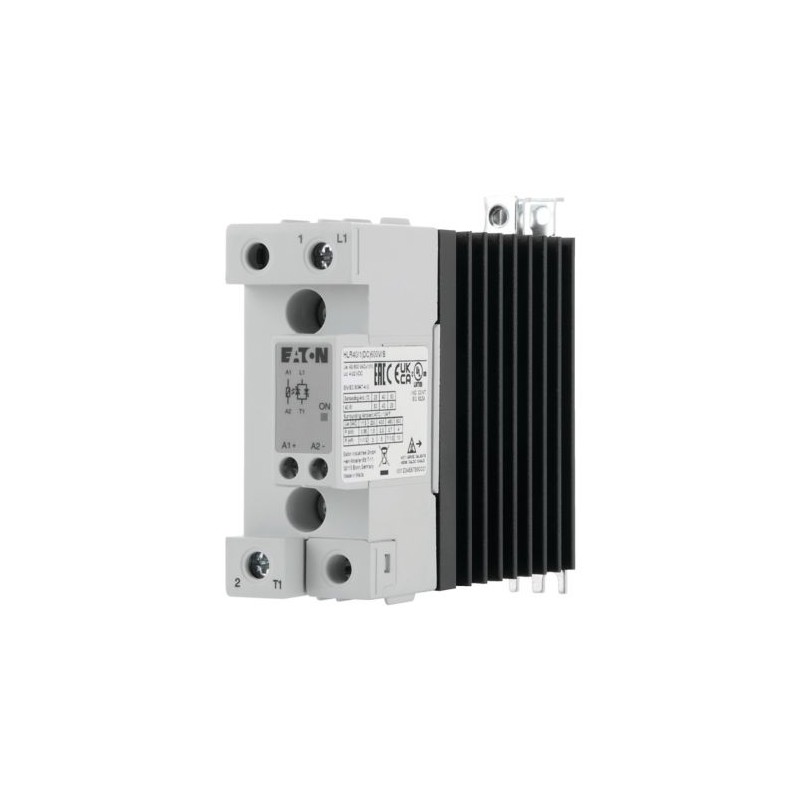

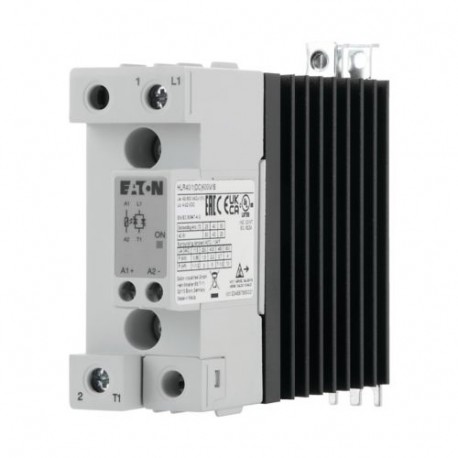

HLR40/1(DC)600V/S 360042 Y7-360042 EATON ELECTRIC HLR40/1(DC)600V/S
HLR40/1(DC)600V/S
360042
Y7-360042
EATON-MOELLER
HLR40/1(DC)600V/S
Eaton Moeller series HLR Solid-state relay, 1-phase, 43 A, 600 - 600 V, DC, high fuse protection
Solid-state relay, 1-phase, 43 A, 600 - 600 V, DC, high fuse protection, IP20, Screw connection, Switching at zero-crossing, CE, UL 508, EAC
Relays > Solid state relay
Standard Soft Starters
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product Name
Eaton Moeller series HLR solid state relay
Catalog Number
360042
Model Code
HLR40/1(DC)600V/S
EAN
4015081998104
Product Length/Depth
141 mm
Product Height
110 mm
Product Width
35.6 mm
Product Weight
0.42 kg
Compliances
CE Marked
RoHS Compliant
RoHS Compliant
Certifications
CE
UL 508
EAC
UL-File No.: E251034, UL report applies to both US and Canada
UL 508
EAC
UL-File No.: E251034, UL report applies to both US and Canada
Features & Functions
Features
Modular version
Functions
Switching at zero-crossing
Electrical connection type for auxiliary- and control-current circuit
Screw connection
Electrical connection type of main circuit
Screw connection
General
Degree of protection
IP20
Frequency rating
45 Hz - 65 Hz
Mounting position
Mount device in specified orientation and do not obstruct the heatsink
Number of phases
1
Number of pilot lights
1
Overvoltage category
III
Pollution degree
2
Rated impulse withstand voltage (Uimp)
6 kV (1.2/50 μs)
Series
HLR
Shock resistance
15/11 g/ms (according to EN 50155, EN 61373)
Type
Solid-state relay
Vibration resistance
2 g/axis (2-100 Hz, IEC 60068-2-6, EN 50155, EN 61373)
Voltage type
DC
Climatic environmental conditions
Altitude
9
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
100 °C
Climatic proofing
95% relative humidity non-condensing at 40°C
Operating temperature - min
-40 °C
Operating temperature - max
80 °C
Electro magnetic compatibility
Air discharge
8 kV (according to IEC/EN 61000-4-2)
Burst Impulse
Main: 2 kV, 5 kHz PC 1 (according to IEC/EN 61000-4-4)
Control: 1 kV, 5 kHz PC 1 (according to IEC/EN 61000-4-4)
Control: 1 kV, 5 kHz PC 1 (according to IEC/EN 61000-4-4)
Contact discharge
4 kV (according to IEC/EN 61000-4-2)
Electromagnetic fields
10 V/m, 80 - 1000 MHz and 1.4 - 2.0 GHz, PC 1
3 V/m, 2.0 - 2.7 GHz, PC 1
3 V/m, 2.0 - 2.7 GHz, PC 1
Immunity to line-conducted interference
10 V/m, 0.15 - 80 MHz, PC 1 (according to IEC/EN 61000-4-6)
Radio interference class
Class A
Terminal capacities
Terminal capacity (flexible with ferrule)
Main: 1 x 2.5-16 mm²
Control: 1 x 0.5-2.5 mm², 2 x 0.5-2.5 mm²
Control: 1 x 0.5-2.5 mm², 2 x 0.5-2.5 mm²
Terminal capacity (solid)
Main: 1 x 2.5-25 mm²
Control: 1 x 0.5-2.5 mm², 2 x 0.5-2.5 mm²
Control: 1 x 0.5-2.5 mm², 2 x 0.5-2.5 mm²
Terminal capacity (solid/stranded AWG)
Main: 1 x 14-3
Control: 1 x 18-12, 2 x 18-12
Control: 1 x 18-12, 2 x 18-12
Terminal capacity (stranded)
Main: 1 x 2.5-25 mm²
Control: 1 x 0.5-2.5 mm², 2 x 0.5-2.5 mm²
Control: 1 x 0.5-2.5 mm², 2 x 0.5-2.5 mm²
Tightening torque
Main: 2.5 Nm (22 lb-in)
Control: 0.5 Nm (4.4 lb-in)
Control: 0.5 Nm (4.4 lb-in)
Screwdriver size
Main: Pozidriv 2
Control: Pozidriv 1
Control: Pozidriv 1
Electrical rating
Operating voltage - max.
600 V
Operating voltage - min.
600 V
Rated operational current (Ie) at AC-1
0 A
Rated operational current (Ie) at AC-3
0 A
Rated operational current (Ie) at AC-51
43 A
Rated operational current (Ie) at AC-53A
16 A
Rated operational current (Ie) at AC-53B
0 A
Rated operational voltage (Ue) at AC - min
42 V
Rated operational voltage (Ue) at AC - max
600 V
Short-circuit rating
Rated conditional short-circuit current (Iq) (type 2 coordination) at 230 V
100 kA, "FWP-32G22FI"
Rated conditional short-circuit current Iq (type 2 coordination) @ 380/400/415 V
100 kA, "FWP-32G22FI"
Rated conditional short-circuit current (Iq) (type 1 coordination) at 230 V
15 kA, "FAZ-C40/1"
Rated conditional short-circuit current Iq (type 1 coordination) @ 380/400/415 V
15 kA, "FAZ-C40/1"
Short-circuit current rating 600 Y/347 V, SCCR (UL/CSA)
100 kA, 90A Class J
Control circuit
Delay time
1/2 period + 500 microseconds at 24 V DC
Drop-out time
1/2 period + 500 microseconds at 24 V DC
Drop-out voltage
1 V DC
Input current
10.3 mA at 24 V DC
Pick-up voltage
3.8 V DC
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
4 V
Rated control supply voltage (Us) at DC - max
32 V
Motor rating
Rated operational power at 220/230 V, 50 Hz
1.5 kW
Rated operational power at 400 V, 50 Hz
2.2 kW
Design verification
Equipment heat dissipation, current-dependent Pvid
35 W
Heat dissipation per pole, current-dependent Pvid
35 W
Rated operational current for specified heat dissipation (In)
43 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Complete with socket (EF003359) | No |
| With detachable clamps (EF003340) | No |
| Modular version (EF001126) | Yes |
| With LED indication (EF005950) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated control supply voltage DC (EF003980) | 4 V |
| Voltage type for actuating (EF008242) | DC |
| Number of phases (EF000351) | 1 |
| Model (EF000010) | Other |
| Switching at zero-crossing (EF011956) | Yes |
| Voltage type (operating voltage) (EF005294) | AC |
| Operating voltage AC 50 Hz (EF008206) | 42 V |
| Operating voltage AC 60 Hz (EF008207) | 42 V |
| Operating voltage DC (EF008208) | 0 V |
| Rated operation current Ie at AC-1 (EF006069) | 0 A |
| Rated operation current Ie at AC-3 (EF006070) | 0 A |
| Rated operation current Ie at AC-51 (EF009488) | 43 A |
| Rated operation current Ie at AC-53a (EF009489) | 16 A |
| Rated operation current Ie at AC-53b (EF009765) | 0 A |
| Degree of protection (IP) (EF005474) | IP20 |
| Width (EF000008) | 35.6 mm |
| Height (EF000040) | 110 mm |
| Depth (EF000049) | 141 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON EMS EN.pdf | 1 Mbytes |
|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| HLR40/1(DC)600V/S Y7-360042 360042 ES_360038.pdf | 1007 Kbytes |
|
