HF8A-2000/5A-CLASS-0.2S 741K0033 EATON ELECTRIC HF8A-2000/5A-CLASS-0.2S
HF8A-2000/5A-CLASS-0.2S
741K0033
EATON-MOELLER
HF8A-2000/5A-CLASS-0.2S

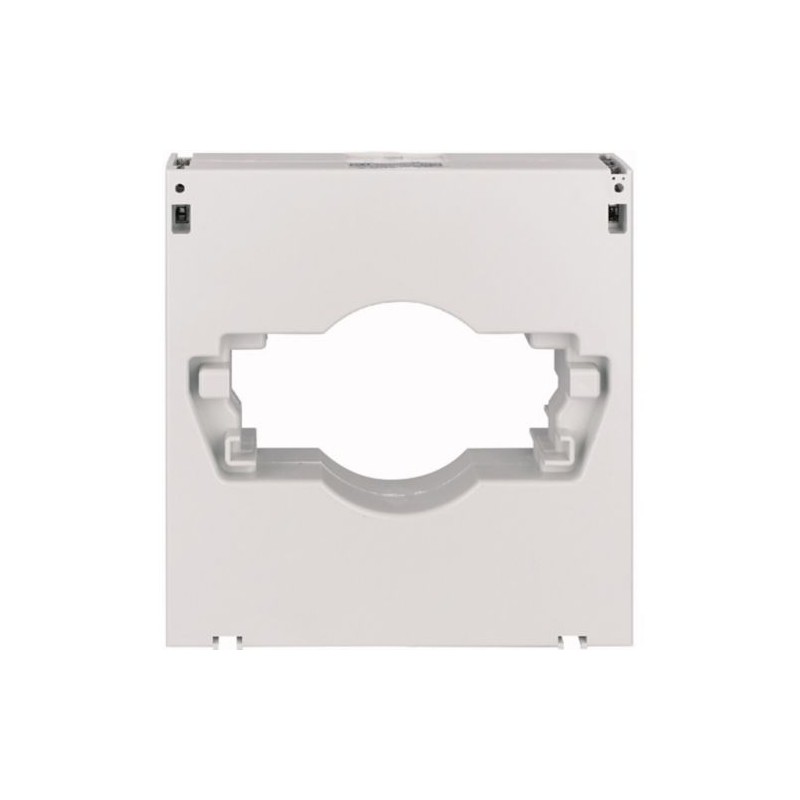

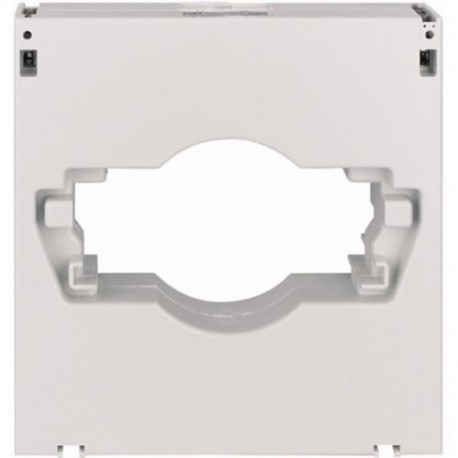

Current transformer HF8A, 2000A/5A, Class 0.2S
Modular Switchgear – Others and Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Current transformer HF8A, 2000A/5A, Class 0.2S
Current transformer HF8A, Class 0.2S, single phase, 2000A/5A
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Current transformer (EC002048)
Electric engineering, automation, process control engineering / Signal processing / Transformer / Current transformer ([email protected] [AAB626014])
Model
Through-feed current converter
Primary rated current
2000 A
Secondary rated current
5 A
Secondary rated apparent power
10 VA
Accuracy class
0.2
Over current limiting factor
FS 10
Calibrated
No
With shock protection
No
Height opening
56 mm
Width opening
130 mm
Opening diameter
81 mm
Snap mounting
Yes
With copper rail
No
Secondary connection
Screw connection
Number of primary inputs
1
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| HF8A-2000/5A-CLASS-0.2S 741K0033 EN_741K0033.pdf | 138 Kbytes |
|
