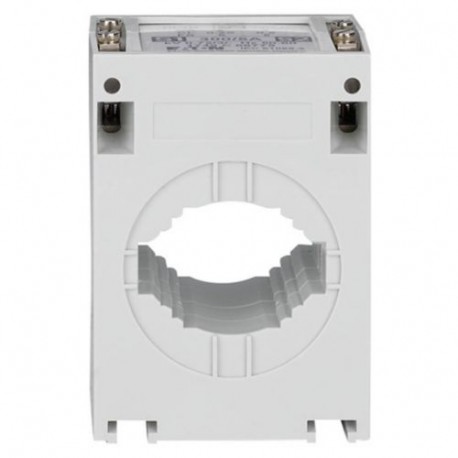

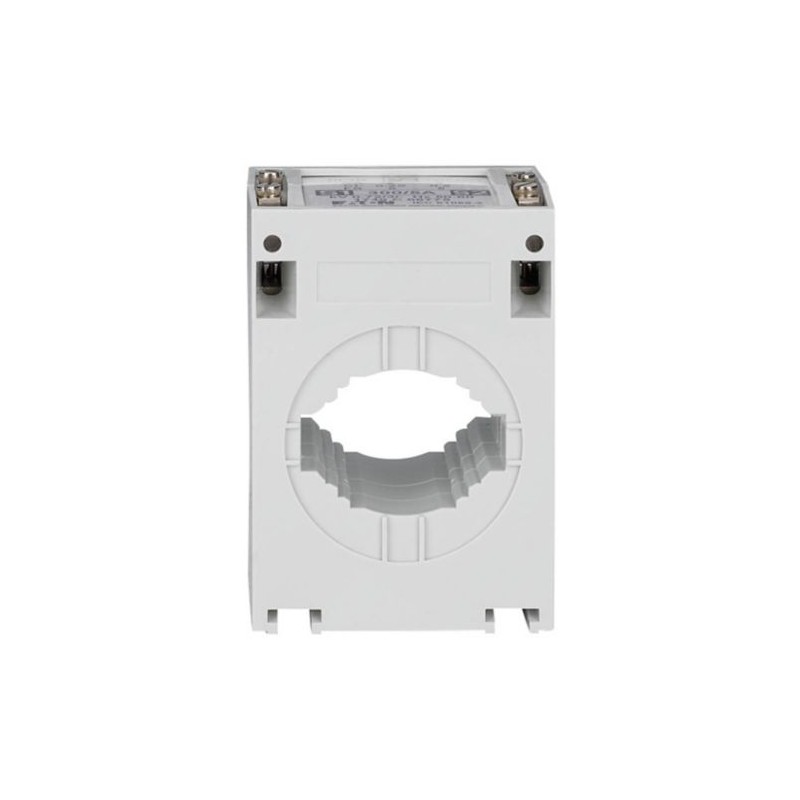

HF4B-400/1A 741C2073 Y7-135398 EATON ELECTRIC HF4B Current Transformer, 400A/1A
HF4B-400/1A
741C2073
Y7-135398
EATON-MOELLER
HF4B Current Transformer, 400A/1A
HF4B-400/1A
Eaton Distribution parts. Current transformer HF4B, 400A/1A
Current transformer HF4B, Class 0.5, single phase, 400A/1A
Low-voltage industrial components > Current transformer
Modular Switchgear – Others and Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Through-feed current converter |
| Rated primary current (EF007405) | 400 A |
| Rated secondary current (EF007471) | 1 A |
| Rated secondary apparent power (EF007470) | 7.5 VA |
| Accuracy class (EF008842) | 3 |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Calibrated (EF008836) | No |
| With contact protection (EF008186) | No |
| Height opening (EF012757) | 25 mm |
| Width opening (EF012758) | 40 mm |
| Opening diameter (EF005153) | 28 mm |
| Snap mounting (EF007462) | Yes |
| With copper rail (EF007380) | No |
| Secondary connection (EF021093) | Screw connection |
| Number of primary inputs (EF006947) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| HF4B-400/1A Y7-135398 741C2073 EN_741C2073.pdf | 105 Kbytes |
|
