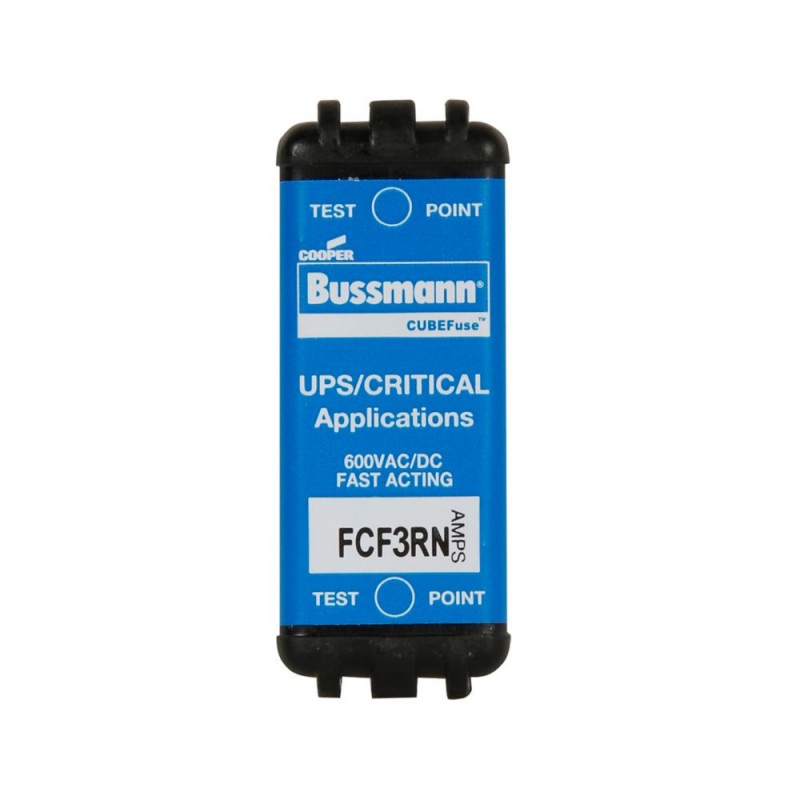

EATON - MOELLER FCF3RN FCF3RN - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

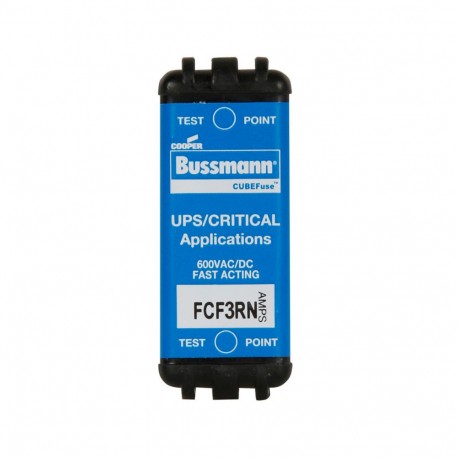

FCF3RN EATON ELECTRIC Fuse-link, low voltage, 35 A, AC 600 V, DC 600 V, 26 x 29 x 55 mm, CF, J, 1P, UL, CSA,..

Reference: FCF3RN

Manufacturer: EATON - MOELLER

Description:

Fast Acting CUBEFuse 3A Non-indication
Fast Acting CUBEFuse 3A Non-indication - Fuse-link, low voltage, 3 A, AC 600 V, DC 600 V, 300 kA, 20 x 26 x 48 mm, CF, J, 1P, UL, CSA, non-indicating, finger-safe, fast-acting

Categories:

  • Circuit breakers and fuses > Low Voltage HRC fuse
  • EATON - MOELLER > Bussmann Series High speed fuses

Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 852,33 €

Unit Price: 71,027 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Fuse-link, low voltage, 3 A, AC 600 V, DC 600 V, 300 kA, 20 x 26 x 48 mm, CF, J, 1P, UL, CSA, non-indicating, finger-safe, fast-acting
Fuse, Fuse-link, low voltage, 3 A, AC 600 V, DC 600 V, 20 x 26 x 48 mm, CF, J, 1P, UL, CSA, fast-acting, non-indicating, finger-safe, Breaking Capacity 300 kA

Delivery program

Product range
Fuse
Basic function
Fuse-link
Field of application
low voltage
Rated current [I]
3 A
Rated voltage
AC 600 V
DC 600 V
Size
20 x 26 x 48 mm
Utilization category
CF
J
Status indicator
non-indicating
Description
finger-safe
Breaking Capacity
300 kA
Number of poles
1P
usable for size/applications
Critical/UPS
Release characteristic [class]
fast-acting
Standard/Approval
UL
CSA
Standards/Regulations
UL Listed
CSA Certified

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse (ecl@ss10.0.1-27-14-20-05 [AFZ800015])
Construction size
Other
Rated current
3 A
Rated voltage
600 V
Voltage type
AC/DC
Rated switching capacity
300 kA
Utilization category
Other
Type of fuse status indicator
None
Insulated metal gripping lugs (IMGL)
No
