BUSBAR EVG-2PHAS 4AFDD 193378 Y7-193378 EATON ELECTRIC EVG-2PHAS/4AFDD
BUSBAR EVG-2PHAS 4AFDD
193378
Y7-193378
EATON-MOELLER
10
EVG-2PHAS/4AFDD

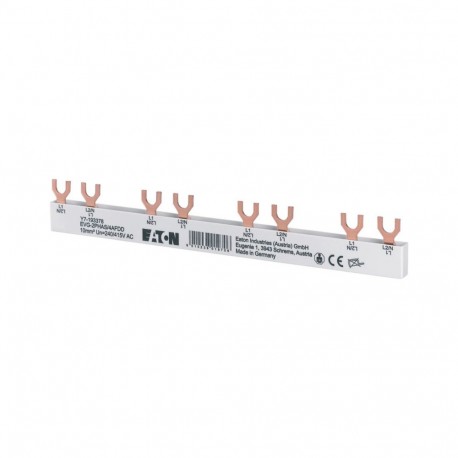

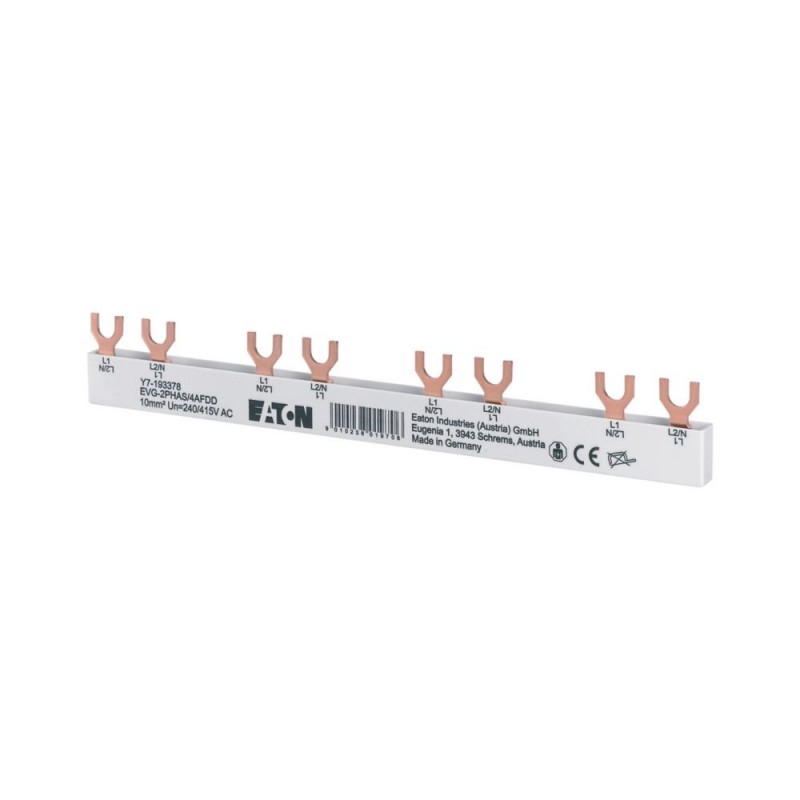

Eaton Moeller series busbar, BUSBAR EVG-2PHAS 4AFDD. Single-phase rail for 4 AFDD, 10mm²
EV busbars 2Ph., AFDD
Low-voltage industrial components > Phase busbar
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
0 kA
0 kA
Devices with N-busbar
| Feature Name | Feature Value |
|---|---|
| Number of phases (EF000351) | 4 |
| Number of poles (EF001391) | 3 |
| Suitable for number of devices (EF007241) | 0 |
| Module width (EF007504) | 17.8 mm |
| Cross section (EF000649) | 10 mm² |
| Length (EF001438) | 192 mm |
| Can be cut to size (EF015250) | No |
| Width in number of modular spacings (EF002950) | 28 |
| Rated permanent current Iu (EF001389) | 50 A |
| Type of electric connection (EF003961) | Fork |
| Insulated (EF000019) | Yes |
| Rated surge voltage (EF002993) | 0 kV |
| Conditioned rated short-circuit current Iq (EF001444) | 25 kA |
| Max. rated operation voltage Ue (EF007357) | 690 V |
| Rated short-time withstand current lcw (EF007050) | 0 kA |
| Suitable for devices with N-conductor (EF007218) | Yes |
| Suitable for devices with auxiliary switch (EF007217) | No |
| Colour (EF000007) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| BUSBAR EVG-2PHAS 4AFDD Y7-193378 193378 EN_193378.pdf | 107 Kbytes |
|
