> EATON - MOELLER>Standard Soft Starters>EMS-XCW-2 172741 ELECTRIC Connector with cable control 2 Devices
Previous Product Next Product

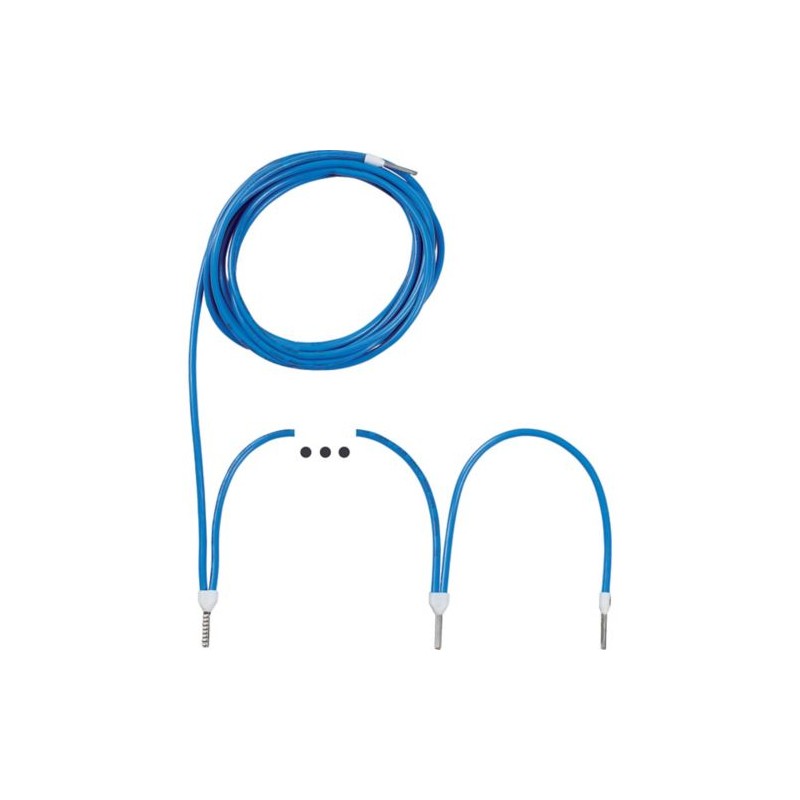

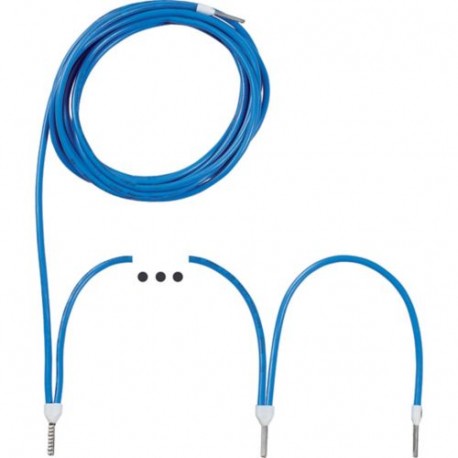

EMS-XCW-2 172741 EATON ELECTRIC Connector with cable control 2 Devices View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EMS-XCW-2 172741 EATON ELECTRIC Connector with cable control 2 Devices

EMS-XCW-2

172741

EATON-MOELLER

Connector with cable control; 2 Devices

Switching connection bridge for EMS; 2 devices

Control cable connector; 2 Devices

Prefabricated connection cable for wiring the control current for 2 electronic motor starters in parallel with a max. mounting distance of 30 mm, conductor cross-section: 0.75 mm².

More details


Low-voltage industrial components > Accessories/spare parts for electronic motor control and protection device

Standard Soft Starters

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series EMS control cable connector
Catalog Number
172741
Model Code
EMS-XCW-2
EAN
4015081692996
Product Length/Depth
220 mm
Product Height
150 mm
Product Width
160 mm
Product Weight
0.03 kg
Compliances
CE
Catalog Notes
Conductor cross-section: 0.75 mm²

Features & Functions

Number Of Poles
Single-pole

General

Accessory/spare part type
Connecting cable
Product category
Used with
2 devices can be connected

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0.003 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.003 W
Rated operational current for specified heat dissipation (In)
0.3 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 172741 Low-voltage industrial controls and switchgear (EC002615)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Connecting cable
Accessory (EF013236) Yes
Spare part (EF013237) No

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON EMS EN.pdf 1 Mbytes
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 37 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
EMS-XCW-2 EMS-XCW-2 172741 ES_172741.pdf 376 Kbytes EMS-XCW-2 EMS-XCW-2 172741 ES_172741.pdf
