> EATON - MOELLER>Self contained>EL65-LED Em.Light Star65 16LEDs M 90min ELECTRIC EVC-M-32S2R2350 EV Charging Station M series
Previous Product Next Product
EL65-LED Em.Light Star65 16LEDs M 90min EATON ELECTRIC EVC-M-32S2R2350 EV Charging Station M series View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EL65-LED Em.Light Star65 16LEDs M 90min EATON ELECTRIC EVC-M-32S2R2350 EV Charging Station M series

EL65-LED

Em.Light Star65 16LEDs M 90min

EATON-MOELLER

EVC-M-32S2R2350 EV Charging Station M series

Em.Light Star65 16LEDs M 90min

More details


Self contained

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲

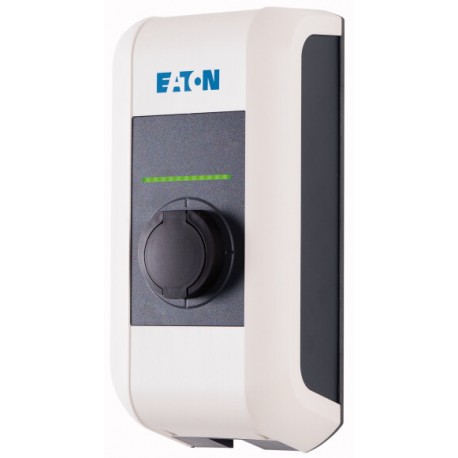

EV Charging Station M series
EL-Nummer (Norway)
1501005
Charging Station M series, 3-phase, Residual Current Monitoring Unit, digital I/O's, RFID, Ethernet, GSM3G, WLAN
[

Technical data ETIM 7.0

Industrial socket/plug applications (EG000014) / Charging device E-Mobility (EC002883)
Electric engineering, automation, process control engineering / Electrical installation, device / Charging components E-Mobility / Charging device E-Mobility ([email protected] [AFX245003])
Installation side connection model
3-phase
Number of charging units
1
Max. power per charging point
22 kW
Nominal connection power
22 kW
Width
240 mm
Height
495 mm
Depth
163 mm
Mounting method
Wall mounting
Number of vehicle connectors Type 1
0
Number of vehicle connectors Type 1 CCS
0
Number of vehicle connectors Type 2
0
Number of vehicle connectors Type 2 CCS
0
Number of socket outlets Type 2
1
Number of vehicle connectors GB AC
0
Number of vehicle connectors GB DC
0
Number of socket outlets GB
0
Number of socket outlets Type 3
0
Number of vehicle connectors CHAdeMO
0
Number of CEE socket outlets
0
Number of household socket outlets
0
With house connection box
Yes
Number of earth leakage circuit breakers type A
0
Number of earth leakage circuit breakers type B
0
With circuit breaker
No
With communication interface
Yes
With energy meter
Yes
Function access control
Yes
With load management
Yes
Material housing
Plastic
Degree of protection (IP)
IP54
Impact strength
IK08
]

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
