EASY-BOX-E4-UCX-SWD1 199508 Y7-199508 EATON ELECTRIC EASY-BOX-E4-UCX-SWD1

Reference: EASY-BOX-E4-UCX-SWD1

Code: 199508

Catalog Number: Y7-199508

Manufacturer: EATON - MOELLER

Description:

EASY-BOX-E4-UCX-SWD1

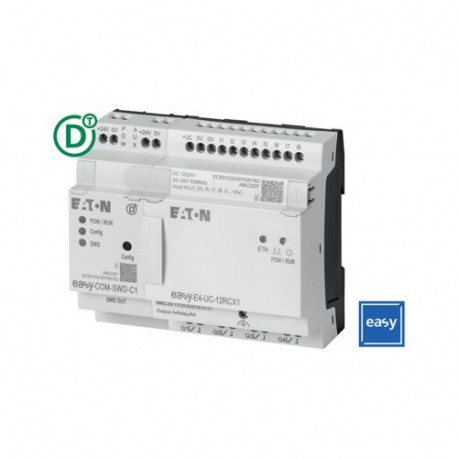

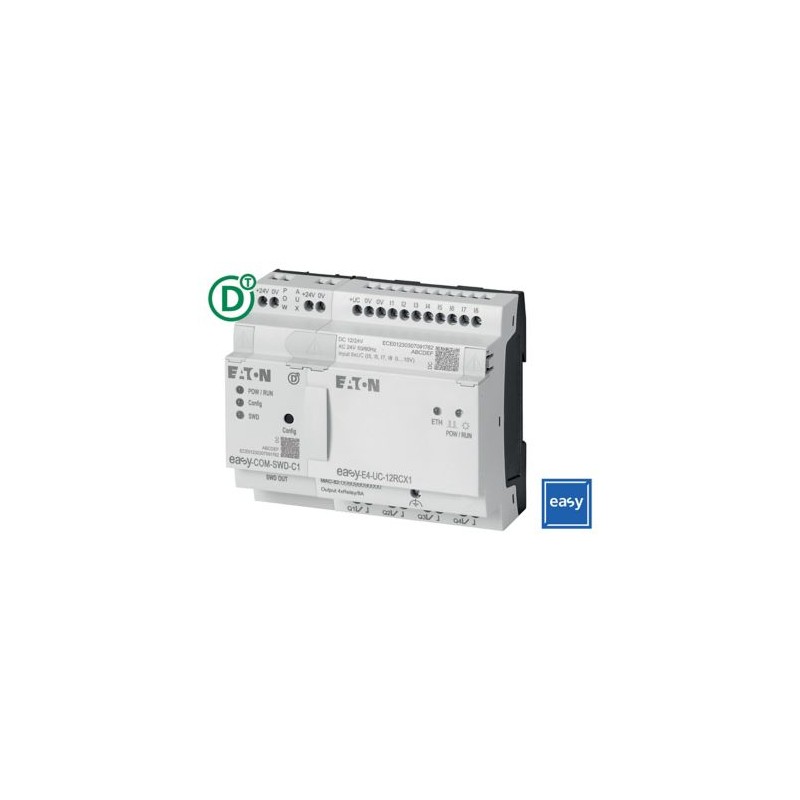

Eaton EASY Bundle consisting of EASY-E4-UC-12RCX1 and EASY-COM-SWD-C1
Bundle for using the easyE4 as a SmartWire-DT coordinator, consisting of a UC base unit without display (EASY-E4-UC-12RCX1) and the SmartWire-DT communications module (EASY-COM-SWD-C1).

Categories:

  • PLC's > PLC device set
  • EATON - MOELLER > Easy E4 Nanocontrollers

Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

General specifications

Product Name
Eaton Moeller® series EASY Starter kit
Catalog Number
199508
Model Code
EASY-BOX-E4-UCX-SWD1
EAN
4015081980093
Product Length/Depth
200 mm
Product Height
135 mm
Product Width
255 mm
Product Weight
0.6 kg
Compliances
Eaton supports the product until its end of life
Certifications
IEC/EN 61000-6-2
IEC 60068-2-30
IEC/EN 61131-2
EN 61010
IEC 60068-2-27
IEC 60068-2-6
EN 50178
IEC/EN 61000-6-3
IEC/EN 61000-4-2
Catalog Notes
depending on ambient air temperature fluctuations of up to ± 5 s/day (± 0.5 h/year) are possible

Features & Functions

Fitted with:
Connection cable
Documentation
Power supply

General

Degree of protection
IP20
Insulation resistance
According to EN 50178
Mounting method
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Overvoltage category
III
Pollution degree
2
Product category
Control relays easyE4
Type
Starter kit

Ambient conditions, mechanical

Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
1 m
Mounting position
Horizontal
Vertical
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts

Climatic environmental conditions

Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Environmental conditions
Condensation: prevent with appropriate measures
Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2, No. 142
Relative humidity
5 - 95 % (IEC 60068-2-30, IEC 60068-2-78)

Electro magnetic compatibility

Air discharge
8 kV
Contact discharge
6 kV, Electrostatic discharge (ESD)
Immunity to line-conducted interference
10 V (according to IEC/EN 61000-4-6)

Terminal capacities

Terminal capacity (flexible with ferrule)
0.2/2.5 mm²
Terminal capacity (flexible with ferrule AWG)
22 - 12
Terminal capacity (solid)
0.2/4 mm²
Terminal capacity (solid AWG)
22 - 12

Electrical rating

Rated operational voltage
12/24 V DC (-15 %/+ 20 % - power supply)
24 V AC (-15 %/+10 % - power supply)

Input/Output

Accuracy
± 2 s/day, Real-time clock to inputs (± 0.2 h⁄Year)

Design verification

10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 199508 PLC's (EC002581)

Feature nameContains function building blocks (EF007145)
Feature valueNo
Feature nameContains basic device (EF007147)
Feature valueNo
Feature nameContains module rack (EF007138)
Feature valueNo
Feature nameContains power supply (EF007157)
Feature valueYes
Feature nameContains analogue input module (EF007137)
Feature valueNo
Feature nameContains analogue output module (EF007136)
Feature valueNo
Feature nameContains digital input module (EF007142)
Feature valueNo
Feature nameContains digital output module (EF007141)
Feature valueNo
Feature nameContains function module (EF007146)
Feature valueNo
Feature nameContains technology module (EF007159)
Feature valueNo
Feature nameContains communication module (EF007149)
Feature valueNo
Feature nameContains memory unit (EF007156)
Feature valueNo
Feature nameContains simulation module (EF007153)
Feature valueNo
Feature nameContains connection cable (EF007160)
Feature valueYes
Feature nameContains control unit (EF007139)
Feature valueNo
Feature nameContains monitor (EF007150)
Feature valueNo
Feature nameContains programming software (EF007152)
Feature valueNo
Feature nameContains engineering software (EF007144)
Feature valueNo
Feature nameContains visualization (EF007161)
Feature valueNo
Feature nameContains libraries (EF007140)
Feature valueNo
Feature nameContains documentation (EF007143)
Feature valueYes
Feature nameContains other components (EF007162)
Feature valueNo
Feature nameSoftware preinstalled (EF007484)
Feature valueNo
