EASY-BOX-E4-UC-SWD1

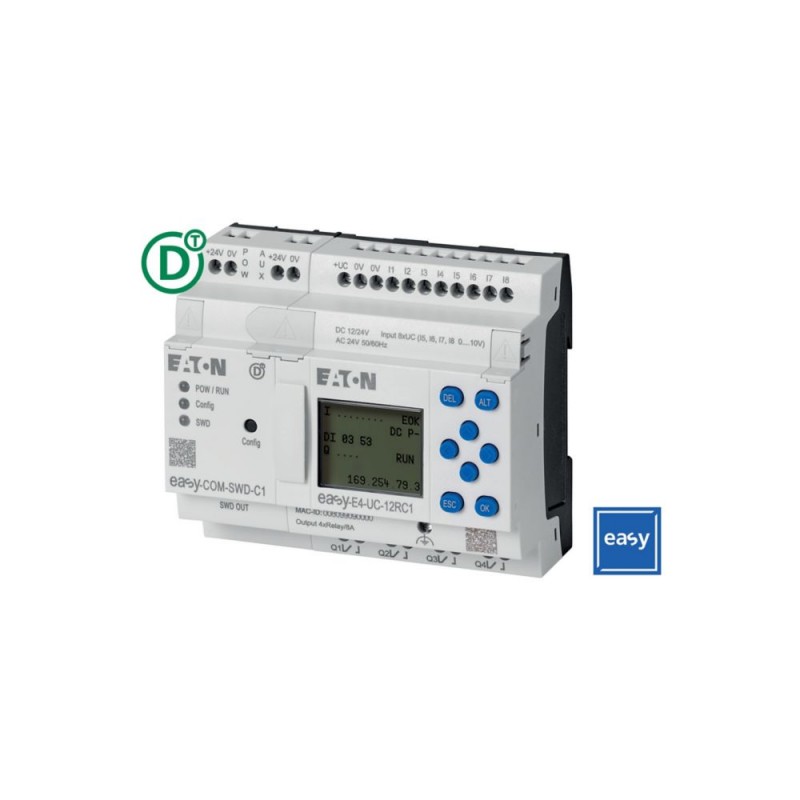

Eaton EASY Bundle consisting of EASY-E4-UC-12RC1 and EASY-COM-SWD-C1

Bundle for using the easyE4 as a SmartWire-DT coordinator, consisting of a UC base unit with display (EASY-E4-UC-12RC1) and the SmartWire-DT communications module (EASY-COM-SWD-C1).

More details


PLC's > PLC device set

Easy E4 Nanocontrollers

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series EASY Starter kit
Catalog Number
199507
Model Code
EASY-BOX-E4-UC-SWD1
EAN
4015081980086
Product Length/Depth
200 mm
Product Height
135 mm
Product Width
255 mm
Product Weight
0.6 kg
Compliances
Eaton supports the product until its end of life
Certifications
IEC/EN 61000-6-3
EN 50178
IEC/EN 61000-6-2
EN 61010
IEC 60068-2-6
IEC 60068-2-30
IEC/EN 61131-2
IEC 60068-2-27
IEC/EN 61000-4-2
Catalog Notes
depending on ambient air temperature fluctuations of up to ± 5 s/day (± 0.5 h/year) are possible

Features & Functions

Fitted with:
Connection cable
Documentation
Power supply

General

Degree of protection
IP20
Insulation resistance
According to EN 50178
Mounting method
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Overvoltage category
III
Pollution degree
2
Product category
Control relays easyE4
Type
Starter kit

Ambient conditions, mechanical

Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
1 m
Mounting position
Horizontal
Vertical
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts

Climatic environmental conditions

Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Environmental conditions
Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2, No. 142
Condensation: prevent with appropriate measures
Relative humidity
5 - 95 % (IEC 60068-2-30, IEC 60068-2-78)

Electro magnetic compatibility

Air discharge
8 kV
Contact discharge
6 kV, Electrostatic discharge (ESD)
Immunity to line-conducted interference
10 V (according to IEC/EN 61000-4-6)

Terminal capacities

Terminal capacity (flexible with ferrule)
0.2/2.5 mm²
Terminal capacity (flexible with ferrule AWG)
22 - 12
Terminal capacity (solid)
0.2/4 mm²
Terminal capacity (solid AWG)
22 - 12

Electrical rating

Rated operational voltage
12/24 V DC (-15 %/+ 20 % - power supply)
24 V AC (-15 %/+10 % - power supply)

Input/Output

Accuracy
± 2 s/day, Real-time clock to inputs (± 0.2 h⁄Year)

Design verification

10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 199507 PLC's (EC002581)
Feature Name Feature Value
Contains function building blocks (EF007145) No
Contains basic device (EF007147) No
Contains module rack (EF007138) No
Contains power supply (EF007157) Yes
Contains analogue input module (EF007137) No
Contains analogue output module (EF007136) No
Contains digital input module (EF007142) No
Contains digital output module (EF007141) No
Contains function module (EF007146) No
Contains technology module (EF007159) No
Contains communication module (EF007149) No
Contains memory unit (EF007156) No
Contains simulation module (EF007153) No
Contains connection cable (EF007160) Yes
Contains control unit (EF007139) No
Contains monitor (EF007150) No
Contains programming software (EF007152) No
Contains engineering software (EF007144) No
Contains visualization (EF007161) No
Contains libraries (EF007140) No
Contains documentation (EF007143) Yes
Contains other components (EF007162) No
