EATON - MOELLEREasy E4 NanocontrollersEASY-BOX-E4-DCX-SWD1 199510 Y7-199510 EATON ELECTRIC EASY-BOX-E4-DCX-SWD1

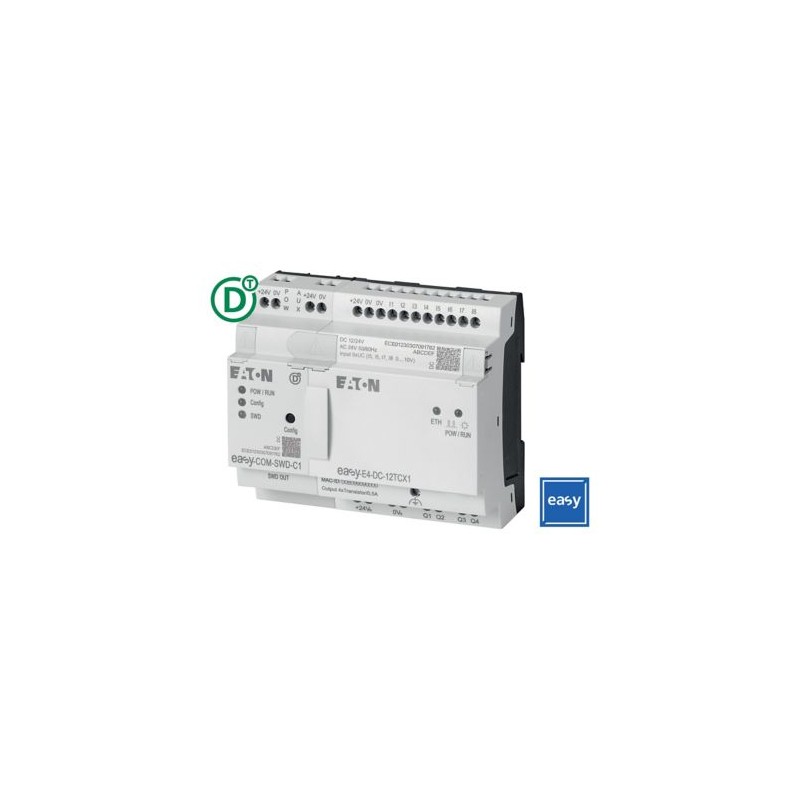

EATON - MOELLER EASY-BOX-E4-DCX-SWD1 199510 Y7-199510 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

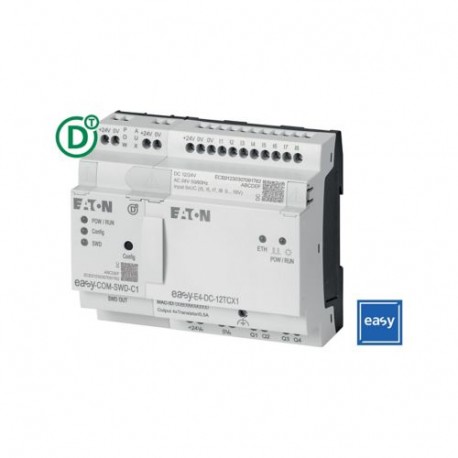

EASY-BOX-E4-DCX-SWD1 199510 Y7-199510 EATON ELECTRIC EASY-BOX-E4-DCX-SWD1

Reference: EASY-BOX-E4-DCX-SWD1

Code: 199510

Catalog Number: Y7-199510

Manufacturer: EATON - MOELLER

Description:

EASY-BOX-E4-DCX-SWD1
Eaton EASY Bundle consisting of EASY-E4-DC-12TCX1 and EASY-COM-SWD-C1
Bundle for using the easyE4 as a SmartWire-DT coordinator, consisting of a DC base unit without display (EASY-E4-DC-12RCX1) and the SmartWire-DT communications module (EASY-COM-SWD-C1).

Categories:

  • PLC's > PLC device set
  • EATON - MOELLER > Easy E4 Nanocontrollers

Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

General specifications

Product Name
Eaton Moeller® series EASY Starter kit
Catalog Number
199510
Model Code
EASY-BOX-E4-DCX-SWD1
EAN
4015081980116
Product Length/Depth
200 mm
Product Height
135 mm
Product Width
255 mm
Product Weight
0.6 kg
Compliances
Eaton supports the product until its end of life
Certifications
IEC 60068-2-27
IEC/EN 61000-4
IEC 60068-2-6
EN 55022
EN 55011
IEC/EN 61000-4-2

Features & Functions

Fitted with:
Connection cable
Documentation
Power supply

General

Degree of protection
IP20
Insulation resistance
According to EN 50178
Mounting method
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Overvoltage category
III
Pollution degree
2
Type
Starter kit

Ambient conditions, mechanical

Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
1 m
Mounting position
Horizontal
Vertical
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts

Climatic environmental conditions

Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Environmental conditions
Condensation: prevent with appropriate measures
Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2, No. 142
Relative humidity
5 - 95 % (IEC 60068-2-30, IEC 60068-2-78)

Electro magnetic compatibility

Air discharge
8 kV
Contact discharge
6 kV, Electrostatic discharge (ESD)
Immunity to line-conducted interference
10 V (according to IEC/EN 61000-4-6)

Terminal capacities

Terminal capacity (flexible with ferrule)
0.2/2.5 mm²
Terminal capacity (flexible with ferrule AWG)
22 - 12
Terminal capacity (solid)
0.2/4 mm²
Terminal capacity (solid AWG)
22 - 12

ETIM for 199510 PLC's (EC002581)

Feature nameContains function building blocks (EF007145)
Feature valueNo
Feature nameContains basic device (EF007147)
Feature valueNo
Feature nameContains module rack (EF007138)
Feature valueNo
Feature nameContains power supply (EF007157)
Feature valueYes
Feature nameContains analogue input module (EF007137)
Feature valueNo
Feature nameContains analogue output module (EF007136)
Feature valueNo
Feature nameContains digital input module (EF007142)
Feature valueNo
Feature nameContains digital output module (EF007141)
Feature valueNo
Feature nameContains function module (EF007146)
Feature valueNo
Feature nameContains technology module (EF007159)
Feature valueNo
Feature nameContains communication module (EF007149)
Feature valueNo
Feature nameContains memory unit (EF007156)
Feature valueNo
Feature nameContains simulation module (EF007153)
Feature valueNo
Feature nameContains connection cable (EF007160)
Feature valueYes
Feature nameContains control unit (EF007139)
Feature valueNo
Feature nameContains monitor (EF007150)
Feature valueNo
Feature nameContains programming software (EF007152)
Feature valueNo
Feature nameContains engineering software (EF007144)
Feature valueNo
Feature nameContains visualization (EF007161)
Feature valueNo
Feature nameContains libraries (EF007140)
Feature valueNo
Feature nameContains documentation (EF007143)
Feature valueYes
Feature nameContains other components (EF007162)
Feature valueNo
Feature nameSoftware preinstalled (EF007484)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
EASY-BOX-E4-DCX-SWD1 Y7-199510 199510 EN_199507.pdf
2 Mbytes
PDF EATON EASY E4 EN
2 Mbytes
PDF CATALOGUE EATON EN
38 Mbytes
