EATON - MOELLERPower XL Frequency ConvertersDX-NET-ETHERNET2-2 184969 Y7-184969 EATON ELECTRIC Field bus connection Ethernet/IP for DE1, DC1

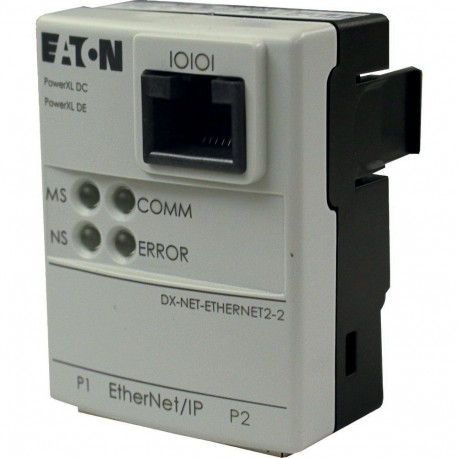

EATON - MOELLER DX-NET-ETHERNET2-2 184969 Y7-184969 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

DX-NET-ETHERNET2-2 184969 Y7-184969 EATON ELECTRIC Field bus connection Ethernet/IP for DE1, DC1

Reference: DX-NET-ETHERNET2-2

Code: 184969

Catalog Number: Y7-184969

Manufacturer: EATON - MOELLER

Description:

Field bus connection Ethernet/IP for DE1, DC1
DX-NET-ETHERNET2-2
Eaton DX Field bus connection Ethernet/IP for DE1, DC1
Field bus module, Bus protocol: EtherNet-IP, Description: 2 x RJ45, 8 pole, For use with: DE1, DC1, Connection technique: Plug-in module

Categories:

  • Low-voltage industrial components > Accessories/spare parts for frequency controller
  • EATON - MOELLER > Power XL Frequency Converters

Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 136,64 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

General specifications

Product Name
Eaton DX Communication module
Catalog Number
184969
Model Code
DX-NET-ETHERNET2-2
EAN
4015081803903
Product Length/Depth
41 mm
Product Height
57 mm
Product Width
43 mm
Product Weight
0.044 kg
Compliances
CE
Catalog Notes
2 x RJ45, 8 pole

Product specifications

Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
DC1
DE1
Accessory/spare part type
Communication module
Connection type
Plug-in connection
Protocol
EtherNet-IP

ETIM for 184969 Low-voltage industrial controls and switchgear (EC002025)

Feature nameType of accessory/spare part (EF000215)
Feature valueCommunication module
Feature nameAccessory (EF013236)
Feature valueYes
Feature nameSpare part (EF013237)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
DX-NET-ETHERNET2-2 Y7-184969 184969 ES_184969.pdf
1 Mbytes
PDF EATON STARTING CONTROLLING MOTORS EN
37 Mbytes
PDF CATALOGUE EATON EN
38 Mbytes
