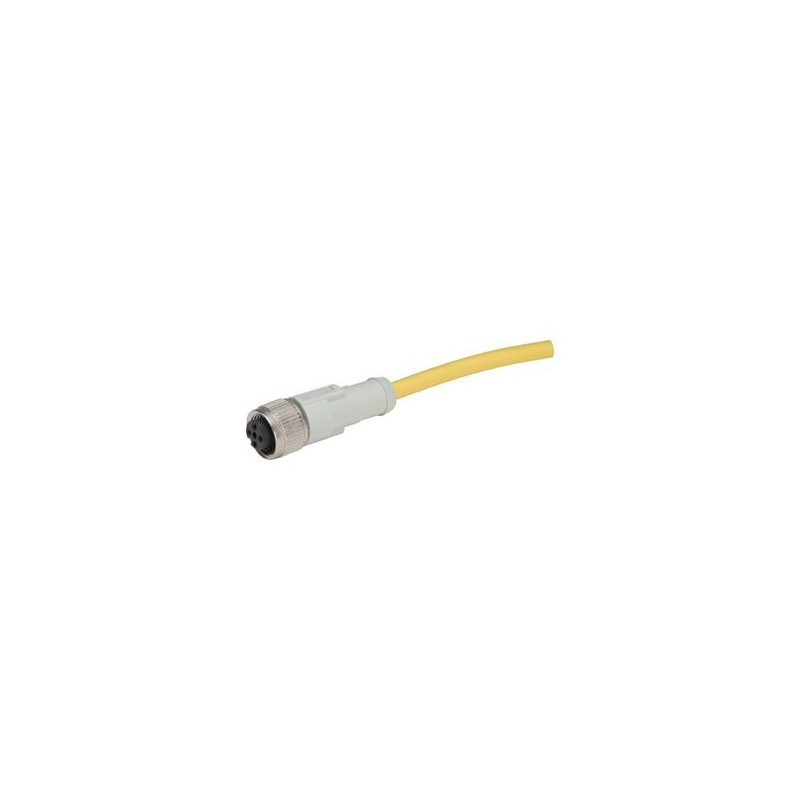

CSAS6A6CY2203 177306 Y7-177306 EATON ELECTRIC Connection cable 6p AC coupling M12 flat open end L 3m
CSAS6A6CY2203
177306
Y7-177306
EATON-MOELLER
Connection cable; 6p; AC; coupling M12 flat; open end; L=3m
CSAS6A6CY2203
Eaton Moeller® series CSAS Connection cable; 6p; AC; coupling M12 flat; open end; L=3m
Connecting cable, Range: connecting cables, Length: 3000 mm, Voltage type: DC, 6 pole, Style output side: Cable end, open, Style input side: Coupling, straight, For use with: RS2…-12..., RS4-12…
Sensors > Sensor-actuator patch cord
Position Switches
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
Coupling, straight, Input side
Cable end, open, Output side
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 6 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Female (bus) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | Other |
| Positioning cable feed, box-sided (EF005927) | Other |
| Cable length (EF000536) | 3 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | No |
| Colour cable sheath (EF008249) | Yellow |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | 40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | 40 °C |
| Rated current In (EF008250) | 0 A |
| Rated voltage (EF000228) | 0 V |
| Continuity resistance (EF003992) | 0 mOhm |
| Degree of protection (IP) (EF005474) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| CSAS6A6CY2203 Y7-177306 177306 EN_177306.pdf | 108 Kbytes |
|
