XLC2044 114795 Y7-114795 EATON ELECTRIC 114795 XVTL-CF/S-4/4-20
XLC2044
114795
Y7-114795
EATON-MOELLER
114795 XVTL-CF/S-4/4-20
XLC2044

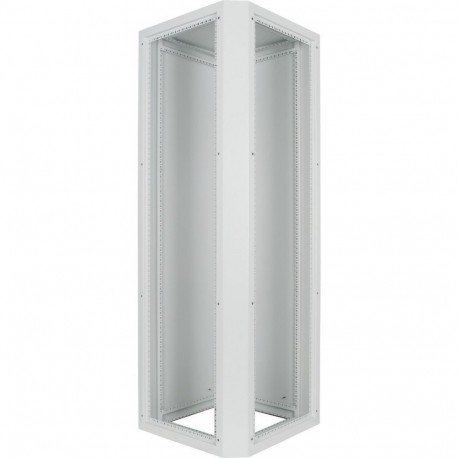

XLC2044 - Corner frame, steel, grey, HxWxD=2000x450x450mm, grey
Corner frame, steel, grey, HxWxD=2000x450x450mm, grey, inlcluding top plate and side walls in RAL 7035 structure finish
Cabinet enclosures > Enclosure/switchgear cabinet (empty)
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Technical data ETIM 7.0
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 475 mm |
| Height (EF000040) | 475 mm |
| Depth (EF000049) | 2025 mm |
| Material (EF002169) | Steel |
| Material quality (EF001257) | Other |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Freestanding (EF020363) | No |
| Floor standing wall model (EF015208) | Yes |
| Suitable for wall mounting (EF000664) | Yes |
| Corner model (EF020814) | No |
| Intermediate mounting (EF022994) | No |
| Couplable (EF001229) | Yes |
| With mounting plate (EF000118) | No |
| Mounting plate depth-adjustable (EF006054) | No |
| Suitable for wall built-in (EF007536) | No |
| Pole fastening (EF009582) | No |
| With door (EF009169) | No |
| Number of doors (EF000122) | 0 |
| With glazed door (EF001089) | No |
| With ventilation door (EF006279) | No |
| With rear door (EF007381) | No |
| Number of locks (EF000123) | 0 |
| With cover (EF007965) | No |
| Transparent cover (EF011401) | No |
| Suitable for metrical mounting (EF005823) | Yes |
| Pitched roof (EF009278) | No |
| Pre-stamping (EF001039) | No |
| EMC-version (EF001062) | Yes |
| Impact strength (EF004293) | IK10 |
| Degree of protection (IP) (EF005474) | IP55 |
| Degree of protection (NEMA) (EF011959) | 4X |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) | 536 W |
| Max. permissible load of the enclosure according to IEC 62208 (EF014987) | 5000 N |
| Max. permissible load of the door(s) according to IEC 62208 (EF014988) | 1000 N |
| Max. permissible load of the mounting plate according to IEC 62208 (EF014989) | 4000 N |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XLC2044 Y7-114795 114795 EN_114795.pdf | 130 Kbytes |
|
