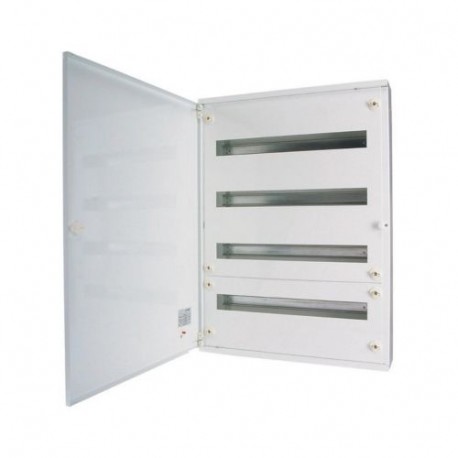

BF-O-2/48-A 240732 EATON ELECTRIC Complete surface-mounted flat distribution board, white, 24 SU per row, 2 ..

BF-O-2/48-A

240732

EATON-MOELLER

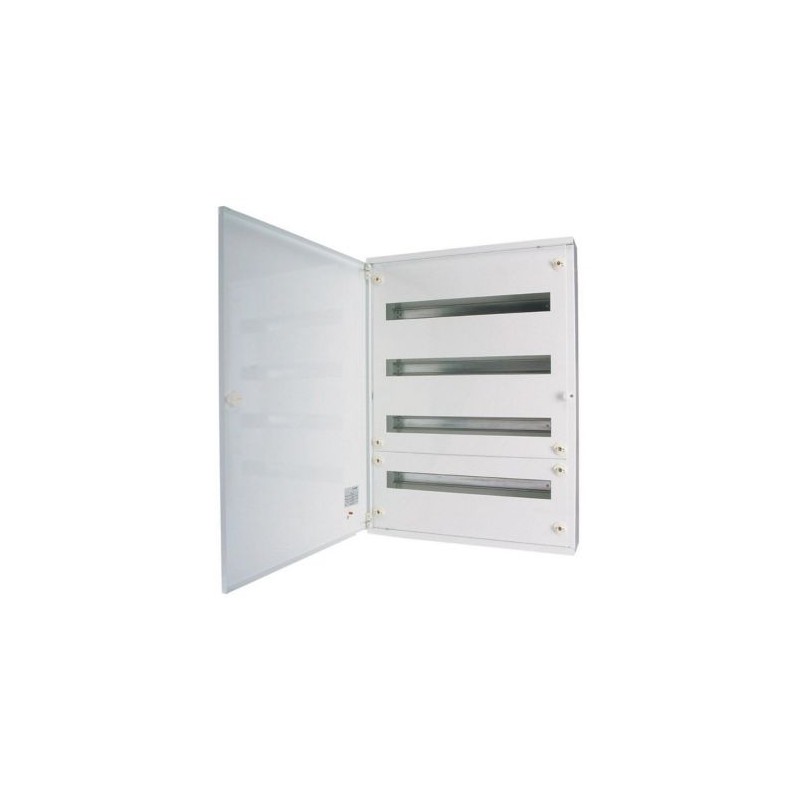

Complete surface-mounted flat distribution board, white, 24 SU per row, 2 rows, type A

Complete BF-O-./..-A surface-mounted slim distribution board, white RAL 9016, 24 space units per row, 2 rows, height 450mm, width 543 mm, depth 140 mm, including door, front plates, DIN-rail mounting frame and neutral/PE terminals. Enclosure: closed design, including back plate, back plate can be used as a fixing plane, 2 cable gland plate inserts for slim distribution boards with a width of 24 space units, top, knockout cable entry openings on the bottom, terminals pre-assembled on enclosure (no loss of space units). Wall trough with door frame, back plate can be used as a fixing plane, cable entry openings that are easy to knock out , 127 mm depth, terminals pre-assembled on enclosure (no loss of space units), 4 side fixing brackets. Sheet steel door with cam lock included as standard, sheet steel door with expanded depth (required, for example, in order to install RMQ components in the door) (BFZ-OTR-./...) and sheet steel door with transparent panel (BFZ-OTT-./...) are available as an accessory. Removable DIN-rail mounting frame, for 45 mm modular installation devices, 150 mm DIN busbar distance, Eaton circuit-breakers can be integrated with installation kit , a universal mounting plate can be installed using an installation kit for surface-mounted enclosures (BFZ-O-ITMPL..). electrical contact for metal front plate achieved with special lock on enclosure

More details


Distribution boards > Small distribution board

Home > EATON - MOELLER

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Complete surface-mounted flat distribution board, white, 24 SU per row, 2 rows, type A
Complete BF-O-./..-A surface-mounted slim distribution board, white RAL 9016, 24 space units per row, 2 rows, height 450mm, width 543 mm, depth 140 mm, including door, front plates, DIN-rail mounting frame and neutral/PE terminals. Enclosure: closed design, including back plate, back plate can be used as a fixing plane, 2 cable gland plate inserts for slim distribution boards with a width of 24 space units, top, knockout cable entry openings on the bottom, terminals pre-assembled on enclosure (no loss of space units). Wall trough with door frame, back plate can be used as a fixing plane, cable entry openings that are easy to knock out, 127 mm depth, terminals pre-assembled on enclosure (no loss of space units), 4 side fixing brackets. Sheet steel door with cam lock included as standard, sheet steel door with expanded depth (required, for example, in order to install RMQ components in the door) (BFZ-OTR-./...) and sheet steel door with transparent panel (BFZ-OTT-./...) are available as an accessory. Removable DIN-rail mounting frame, for 45 mm modular installation devices, 150 mm DIN busbar distance, Eaton circuit-breakers can be integrated with installation kit, a universal mounting plate can be installed using an installation kit for surface-mounted enclosures (BFZ-O-ITMPL..). electrical contact for metal front plate achieved with special lock on enclosure
[

Delivery program

Basic function
Basic device
Product function
Installation distribution boards
Product range
BF flat DBO
Design
Surface mounted
Installation site
Indoor
Type of installation
Surface mounting
Door/Flap
White
Degree of Protection
IP30
Colour
White
Module rack
Rail-frame
Shroud for protection against accidental contact
Metal
Rows [Count]
2
Module units per row
24
Description
IP30
Protection Class I
Steel sheet enclosure white (RAL 9016)
Cable entries
Cable entries on top and bottom
PE and N terminals design
Screw terminals
PE and N terminals [Number x cross-sectional area]
N: 2 x 25 + 9 x 16
PE: 2 x 25 + 27 x 16 mm2
Equipment supplied
Enclosure
Door with three-point turn-lock
DIN rail mounting frame
Cable gland plate inserts (top)
Front plates
Neutral-/protective conductor terminal
,

Technical data

General
Standards
IEC/EN 61439-1, IEC/EN 61439-3, IEC/EN 62208
RoHS (in accordance with Directive 2002/95/EC of the European Parliament and Council)
conform
Ambient temperature
-5 - +40 °C
Degree of Protection
IP30
Protection class
I (earthed)
Rated operational voltage [Ue]
415 V AC
Rated frequency [f]
50/60 Hz
Material characteristics
Material
Sheet steel, powder-coated
Colour
white (RAL 9016)
Material properties
MechanicalImpact resistance
IK07
,

Design verification as per IEC/EN 61439

Technical data for design verification
Heat dissipation, at an ambient temperature of 35°C, delta T: 20 degrees in top of the enclosure, calculated as per IEC 60890Individual enclosure for wall mounting [PV]
37 W
Heat dissipation, at an ambient temperature of 35°C, delta T: 20 degrees in top of the enclosure, calculated as per IEC 60890Starting enclosure for wall mounting [PV]
36 W
Heat dissipation, at an ambient temperature of 35°C, delta T: 20 degrees in top of the enclosure, calculated as per IEC 60890Middle enclosure for wall mounting [PV]
34 W
Heat dissipation, at an ambient temperature of 35°C, delta T: 35 degrees in top of the enclosure, calculated as per IEC 60890Individual enclosure for wall mounting [PV]
75 W
Heat dissipation, at an ambient temperature of 35°C, delta T: 35 degrees in top of the enclosure, calculated as per IEC 60890Starting enclosure for wall mounting [PV]
72 W
Heat dissipation, at an ambient temperature of 35°C, delta T: 35 degrees in top of the enclosure, calculated as per IEC 60890Middle enclosure for wall mounting [PV]
69 W
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2 Strength of materials and parts10.2.6 Mechanical impact
IK07
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
IP30
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
< 0.1 Ω; meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Ui= 415 V AC
10.9 Insulation properties10.9.3 Impulse withstand voltage
Does not apply to basic enclosures as defined in EN 62208.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Does not apply to metal enclosures.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
,

Technical data ETIM 7.0

Distribution boards (EG000023) / Small distribution board (EC000214)
Electric engineering, automation, process control engineering / Electrical installation, device / Electrical distribution system (incl. small distribution board) / Small distribution board ([email protected] [ACN387011])
Mounting method
Surface mounted (plaster)
Number of rows
2
Width in number of modular spacings
24
Type of cover
Door
Cover model
Closed
Transparent cover/door
No
Material housing
Steel
Height
450 mm
Width
543 mm
Depth
140 mm
Built-in depth
140 mm
Internal depth
131 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
White
RAL-number
9016
Degree of protection (IP)
IP30
With lock
No
Type of closure
Other
,

Dimensions

Height H [mm] = 450
]

ETIM for 240732 Distribution boards (EC000214)
Feature Name Feature Value
Mounting method (EF000003) Surface mounted
Number of rows (EF000266) 2
Width in number of modular spacings (EF002950) 24
Type of covering (EF000339) Door
Cover model (EF009212) Closed
Type of door (EF004464) EV000426
Transparent cover/door (EF006244) No
Signal passing door (EF015941) No
With lock (EF006306) No
Type of closure (EF004462) Other
Housing material (EF001596) Steel
Built-in depth (EF000218) 475 mm
Built-in height (EF000332) 160 mm
Built-in width (EF000846) 570 mm
Inner depth (EF001131) 131 mm
Earthing terminal block (EF015776) Yes
Neutral terminal block (EF015777) Yes
DIN-rail (EF001134) Yes
With mounting plate (EF000118) No
Extension possible (EF001088) No
EMC-version (EF001062) Yes
Colour (EF000007) White
RAL-number (EF000116) 9016
Degree of protection (IP) (EF005474) IP30
Height (EF000040) 160 mm
Width (EF000008) 570 mm
Depth (EF000049) 475 mm
