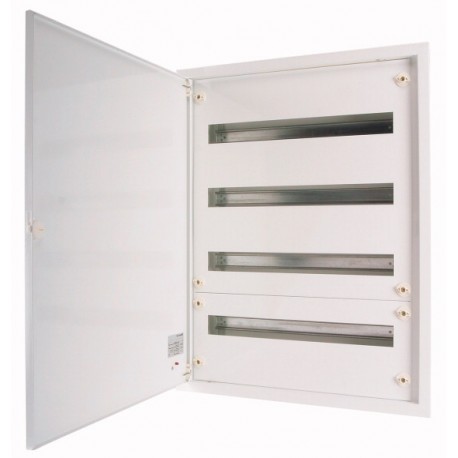

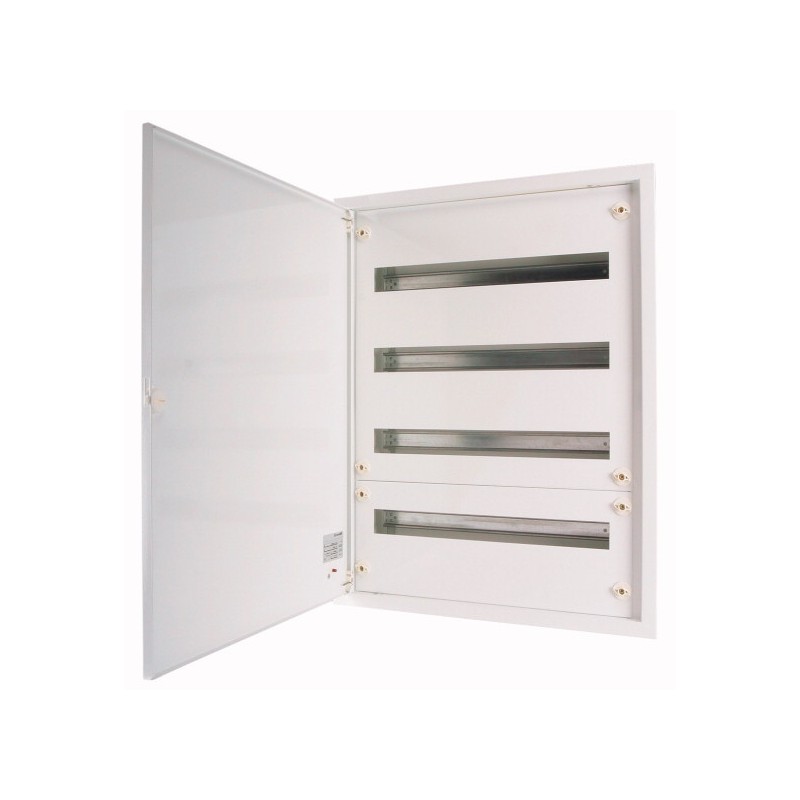

BF-U-5/165-A 240746 EATON ELECTRIC Complete flush-mounted flat distribution board, white, 33 SU per row, 5 r..
BF-U-5/165-A
240746
EATON-MOELLER
Complete flush-mounted flat distribution board, white, 33 SU per row, 5 rows, type A
Complete BF-U-./..-A flush-mounted distribution board, white RAL 9016, 33 space units per row, 5 rows, height 920mm, width 750 mm, depth 136 mm, including door, front plates, DIN-rail mounting frame and neutral/PE terminals. Enclosure: closed design, including back plate, back plate can be used as a fixing plane, 3 cable gland plate inserts for slim distribution boards with a width of 33 space units, top, knockout cable entry openings on the bottom, terminals pre-assembled on enclosure (no loss of space units). Wall trough with door frame, back plate can be used as a fixing plane, cable entry openings that are easy to knock out , 127 mm depth, terminals pre-assembled on enclosure (no loss of space units), 4 side fixing brackets. Sheet steel door with cam lock included as standard, sheet steel door with expanded depth (required, for example, in order to install RMQ components in the door) (BFZ-OTR-./...) and sheet steel door with transparent panel (BFZ-OTT-./...) are available as an accessory. Removable DIN-rail mounting frame, for 45 mm modular installation devices, 150 mm DIN busbar distance, Eaton circuit-breakers can be integrated with installation kit , a universal mounting plate can be installed using an installation kit for flush-mounted enclosures (BFZ-U-MPL..). electrical contact for metal front plate achieved with special lock on enclosure
Distribution boards > Small distribution board
Home > EATON - MOELLER
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲Delivery program
Flush mounted
Protection Class I
Steel sheet enclosure white (RAL 9016)
PE: 2 x 25 + 74 x 16 mm2
Door with three-point turn-lock
DIN rail mounting frame
Front plates
Neutral-/protective conductor terminal
Technical data
Design verification as per IEC/EN 61439
Technical data ETIM 7.0
Dimensions
Height H1 [mm] = 870
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Hollow wall |
| Number of rows (EF000266) | 5 |
| Width in number of modular spacings (EF002950) | 33 |
| Type of covering (EF000339) | Door |
| Cover model (EF009212) | Closed |
| Type of door (EF004464) | EV000426 |
| Transparent cover/door (EF006244) | No |
| Signal passing door (EF015941) | No |
| With lock (EF006306) | No |
| Type of closure (EF004462) | Other |
| Housing material (EF001596) | Steel |
| Built-in depth (EF000218) | 127 mm |
| Built-in height (EF000332) | 870 mm |
| Built-in width (EF000846) | 720 mm |
| Inner depth (EF001131) | 127 mm |
| Earthing terminal block (EF015776) | Yes |
| Neutral terminal block (EF015777) | Yes |
| DIN-rail (EF001134) | Yes |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | No |
| EMC-version (EF001062) | Yes |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9016 |
| Degree of protection (IP) (EF005474) | IP30 |
| Height (EF000040) | 930 mm |
| Width (EF000008) | 760 mm |
| Depth (EF000049) | 140 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| BF-U-5/165-A 240746 240746_EN.pdf | 181 Kbytes |
|
