CH60J1 EATON ELECTRIC Selective coordination main miniature circuit-breaker, 40 A, single-pole, with busbar .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

CH60J1 EATON ELECTRIC Selective coordination main miniature circuit-breaker, 40 A, single-pole, with busbar ..

CH60J1

EATON-MOELLER

6

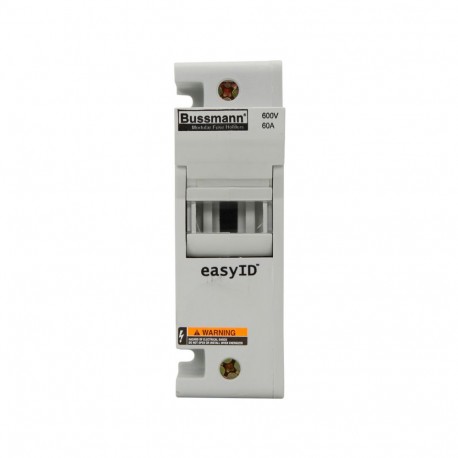

60AJ MODULAR FUSEHOLDER SINGLE POLE

60AJ MODULAR FUSEHOLDER SINGLE POLE - Fuse holder, low voltage, 60 A, AC 600 V, DC 600 V, 200 kA, 40 x 83 x 125 mm, J, 1P, UL, CSA, 35 mm DIN rail, Panel Mounting

More details


Circuit breakers and fuses > Low Voltage HRC fuse base

Bussmann Series High speed fuses

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $334.77
Unit price: $55.80
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Fuse holder, low voltage, 60 A, AC 600 V, DC 600 V, 200 kA, 40 x 83 x 125 mm, J, 1P, UL, CSA, 35 mm DIN rail, Panel Mounting
Fuse accessory, Fuse-holder, low voltage, 60 A, AC 600 V, DC 600 V, UL Class J, 40 x 83 x 125 mm, 1P, UL, CSA, 35 mm DIN rail, Panel Mounting, Class J fuses up to 60 A, UL 512, IP20, Breaking Capacity 200 kA

Delivery program

Product range
Fuse accessory
Basic function
Fuse-holder
Field of application
low voltage
Rated current [I]
60 A
Rated voltage
AC 600 V
DC 600 V
Size
40 x 83 x 125 mm
Utilization category
J
Description
35 mm DIN rail
Panel Mounting
Protection
IP20
Breaking Capacity
200 kA
Number of poles
1P
usable for size/applications
Class J fuses up to 60 A
Standard/Approval
UL
CSA
Standards/Regulations
UL 512

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse base (EC000067)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Low-Voltage HRC fuse base ([email protected] [AKE278013])
Construction size
Other
Number of poles
1
Rated current
60 A
Bus-mounting type
No
Swivelling mechanism
No

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON CIRCUIT PROTECTION BUSSMANN EN .pdf 23 Mbytes
PDF EATON CIRCUIT PROTECTION NH FUSE EN.pdf 7 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
CH60J1 CH60J1 CH60J1 EN_CH60J1.pdf 144 Kbytes CH60J1 CH60J1 CH60J1 EN_CH60J1.pdf
