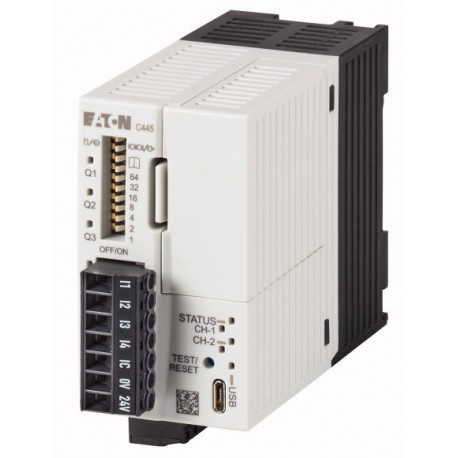

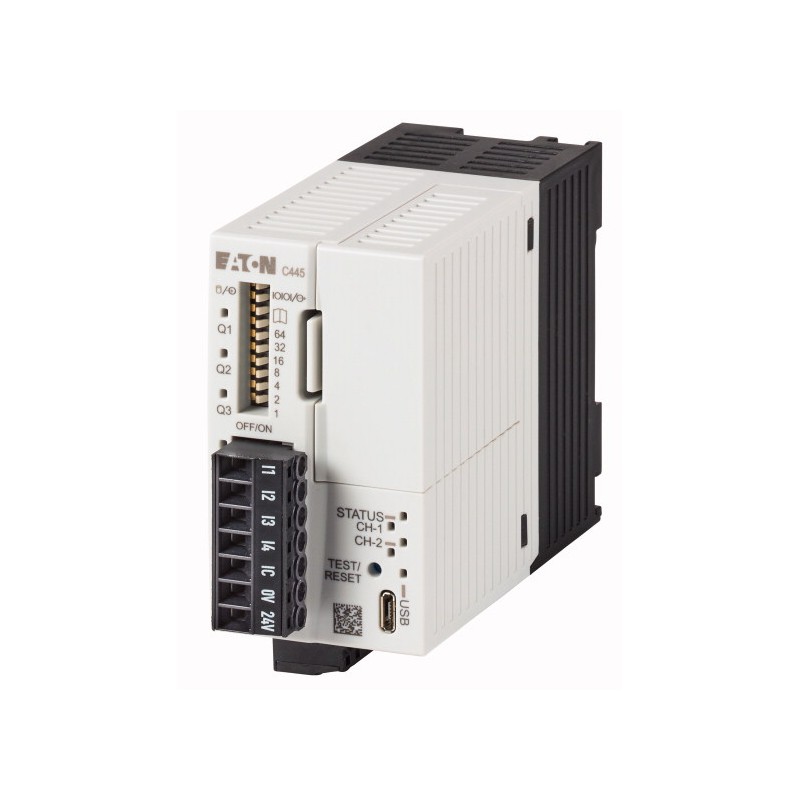

C445BD-SDNN 181547 EATON ELECTRIC Basic device, 24 V DC, 4DI 24VDC, 3 DO relays View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

C445BD-SDNN 181547 EATON ELECTRIC Basic device, 24 V DC, 4DI 24VDC, 3 DO relays

C445BD-SDNN

181547

EATON-MOELLER

Basic device, 24 V DC, 4DI 24VDC, 3 DO relays

Apparatus base; 24 V DC; 4ED 24VDC; 3SR

More details


Thermal Relays

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Basic device, 24 V DC, 4DI 24VDC, 3 DO relays
Intelligent motor management system C445 basic device, 24 V DC, 4 digital inputs 24VDC, 3 digital output relays

Delivery program

Product range
Basic devices
Description
Digital inputs 24 V DC
Rated control voltage [Us]
24 V DC

Technical data

General
Standards
IEC/EN 60947-4-1, UL 60947-4-1
DimensionsWidth
45 mm
DimensionsHeight
80 mm
DimensionsDepth
112 mm
Weight
0.24 kg
Mounting
Top-hat rail IEC/EN 60715, 35 mm
Protection type (IEC/EN 60529, EN50178, VBG 4)
IP20
Mounting position
Vertical
Mechanical shock resistance
15
Shock duration 11 ms
non-operating g
Altitude
Max. 2000 m
Terminal capacitySolid
1 x (0.2 - 2.5) mm2
Terminal capacityflexible, with ferrule
1 x (0,2 - 2,5) mm2
Terminal capacitySolid or stranded
1 x AWG24 - 12 AWG
Terminal capacityNotes
Minimum length 7 mm.
Climatic environmental conditions
Operating ambient temperature min.
-40 °C
Operating ambient temperature max.
+60 °C
Storage [ϑ]
-40 - +80 °C
Main conducting paths
Overvoltage category/pollution degree
III/3
Rated operating voltage [Ue]
110 - 690 V AC
Rated frequency [f]
47 - 63 Hz
Static heat dissipation, non-current-dependent [Pvs]
5 W
Current measurementRelease class
5 - 40 CLASS
Control section
Input dataSupply voltage [UAUX]
24 (-25 - +25 %) V DC
Actuating circuit (ON, L, R)Switching level "Low"
0 - 5 V
Actuating circuit (ON, L, R)Switching level "High"
15 - 20 V
Feedback outputsContactsN/O = Normally open
2 N/O
Feedback outputsContactsCO = changeover
1 CO
Feedback outputsRated operating voltage [Ue]
24 V
Feedback outputsRated operational currentDC-1324 V [Ie]
1.5 A
Feedback outputsRated operational currentPilot DutyAC operated
B300
Feedback outputsRated operational currentPilot DutyDC operated
R300 nur Schließer
Electromagnetic compatibility (EMC)
Electrostatic discharge (ESD)applied standard
IEC/EN 61000-4-2
Electrostatic discharge (ESD)Air discharge
8 kV
Electrostatic discharge (ESD)Contact discharge
4 kV
Electromagnetic fields (RFI)applied standard
IEC/EN 61000-4-3
Electromagnetic fields (RFI)
80 - 1000 MHz: 10 V/m
Burst
2
according to IEC/EN 61000-4-4 kV
power pulses (Surge)
1 kV (symmetrical)
2 kV (asymmetrical)
according to IEC/EN 61000-4-5
Immunity to line-conducted interference to (IEC/EN 61000-4-6)
10 V
Rating data for approved types
Auxiliary contactsPilot DutyAC operated
B300
Auxiliary contactsPilot DutyDC operated
R300 nur Schließer
Auxiliary contactsGeneral UseAC
240 V
Auxiliary contactsGeneral UseAC
1.5 A
Auxiliary contactsGeneral UseDC
250 V
Auxiliary contactsGeneral UseDC
0.1 A

Design verification as per IEC/EN 61439

Static heat dissipation, non-current-dependent [Pvs]
5 W
Operating ambient temperature min.
-40 °C
Operating ambient temperature max.
+60 °C

Approvals

Product Standards
UL 508; CSA-C22.2 No. 14; IEC60947-4-1; CE marking
UL File No.
E1230
UL Category Control No.
NKCR
North America Certification
UL listed, CSA certified
Specially designed for North America
No

Dimensions

2326DIM-1
