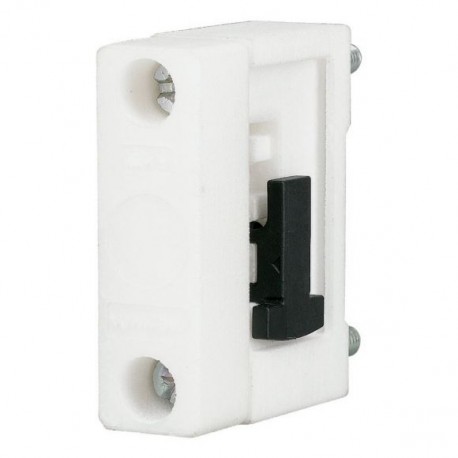

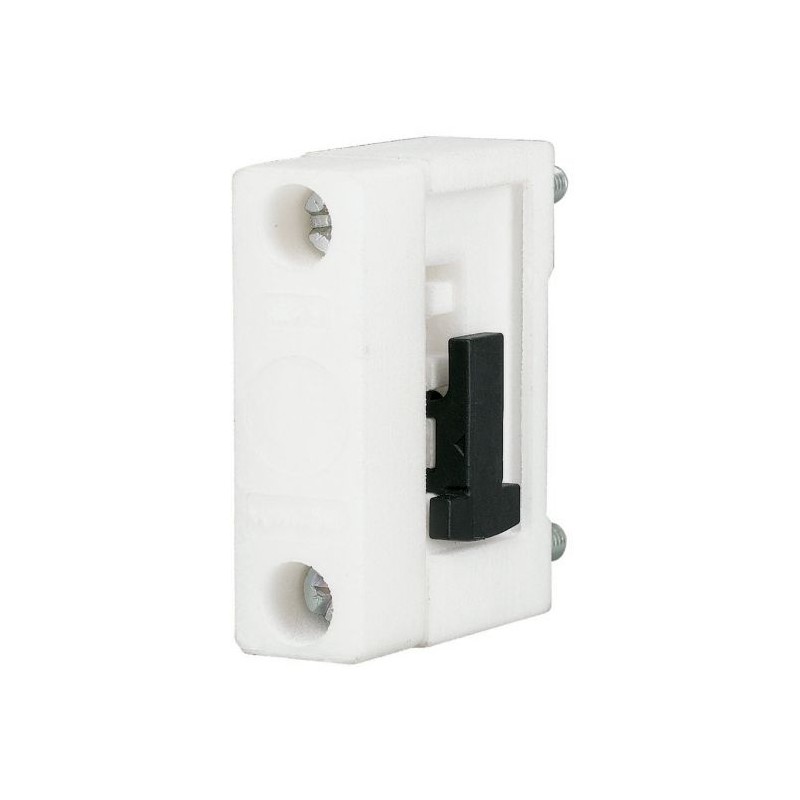

BBS-1/FL 107161 Y7-107161 EATON ELECTRIC Support for distributor, 1p, for flat bar
BBS-1/FL
107161
Y7-107161
EATON-MOELLER
10
Support for distributor, 1p, for flat bar
BBS-1/FL
Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure. Busbar support, 1p, for flat busbars
IEC busbar support, 60 mm system, rated operational current Ie=630A, poles=1, can be used for 12x5/10, 20x5/10 and 30x5/10, with slider to adapt to the respective busbar size, with screw block inside, temperature resistant to 120 °C, track resistance CTI 200, self-extinguishing to UL 94, RAL 7035, thermoplastic, silicon free, chlorine free, halogen free, distance between busbar supports corresponding to short-circuit strength diagram, UL approved
Energy distribution systems > Busbar support
Connection Accessories for Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Often bought together
▲Best sellers
▲More info
▲General specifications
Delivery program
Technical data - electrical
Technical data - mechanical
Design verification as per IEC/EN 61439 - technical data
Additional information
Self-extinguishing acc. UL 94
PE/N busbar carrier
- Can be fitted to all busbar sizes using concertina system
- Can be mounted individually
12 x 5/10 mm
20 x 5/10 mm
System for flat busbar
60 mm system
185 mm system
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 1 |
| Max. rated current (EF007926) | 630 A |
| Busbar distance (EF002638) | 60 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| BBS-1/FL Y7-107161 107161 EN_107161.pdf | 106 Kbytes |
|
