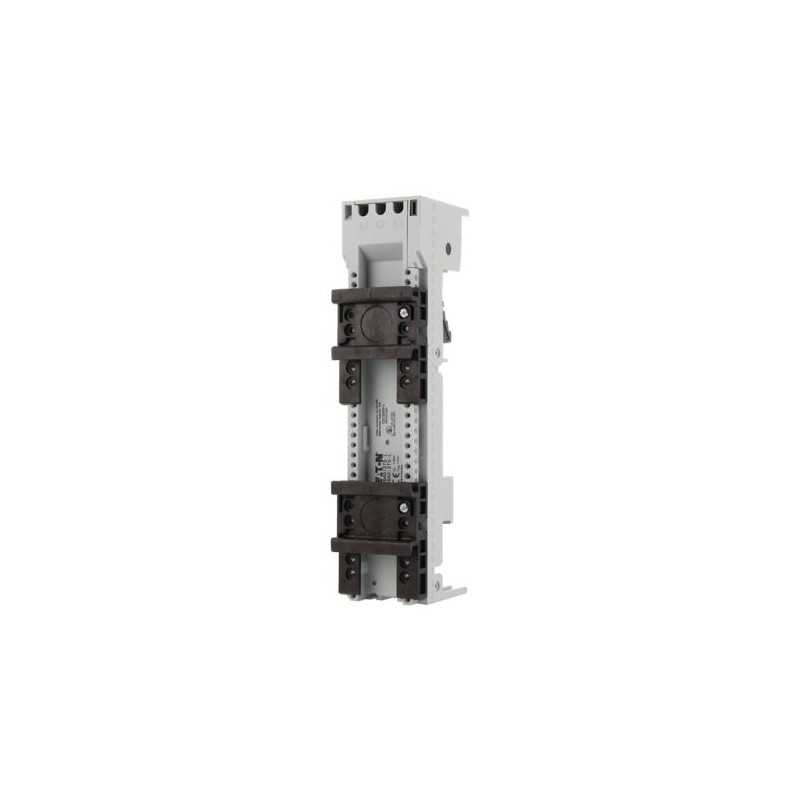

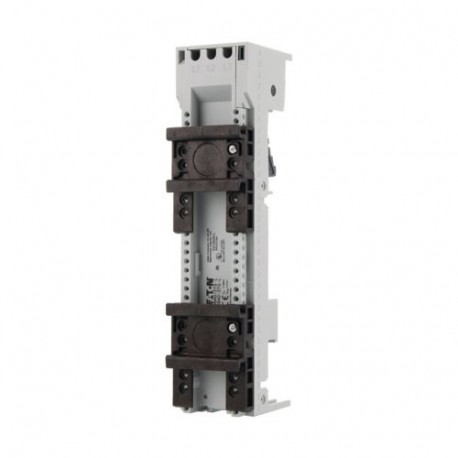

BBA0/2TS-L 101482 Y7-101482 EATON ELECTRIC Busbar adapter, 45mm, 2TS empty module View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

BBA0/2TS-L 101482 Y7-101482 EATON ELECTRIC Busbar adapter, 45mm, 2TS empty module

BBA0/2TS-L

101482

Y7-101482

EATON-MOELLER

4

Busbar adapter, 45mm, 2TS empty module

BBA0/2TS-L

Eaton Moeller® series BBA Busbar adapter, 45 mm, DIN rail: 2

45mm busbar adapter for 60mm busbar system, two mounting rails, without electrical contact, for surface mounting of reversing starters and star-delta starters, mounting rails can be moved within a 1.25 mm grid

More details


Low-voltage industrial components > Busbar adapter

Circuit Breakers PKZ

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $104.97
Unit price: $26.24
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series BBA Accessory Busbar adapter
Catalog Number
101482
Model Code
BBA0/2TS-L
EAN
4015081014026
Product Length/Depth
200 mm
Product Height
63 mm
Product Width
45 mm
Product Weight
0.205 kg
Certifications
CE
IEC60439-1
UL
CSA-C22.2 No. 14
UL File No.: E300273
UL 508A
Certified by UL for use in Canada
UL 508
UL Category Control No.: NMTR; NMTR7

Delivery program

Type
Nominal current
0 A

Technical data - electrical

Voltage rating (UL CSA 13)
600 V AC, UL/CSA
Electric connection type
None

Technical data - mechanical

Mounting rail armament
2 mounting rails
Rail width
35 mm
Number of DIN rails
2
Busbar distance
60 mm
Busbar thickness - min
5 mm
Busbar thickness - max
10 mm
Adapter width
45 mm

Design verification as per IEC/EN 61439 - technical data

Equipment heat dissipation, current-dependent Pvid
0 W
Static heat dissipation, non-current-dependent Pvs
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Design verification as per IEC/EN 61439

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 101482 Low-voltage industrial controls and switchgear (EC001531)
Feature Name Feature Value
Mounting rail armament (EF003700) 2 mounting rails
Type of electric connection (EF003961) None
Rated current In (EF008250) 0 A
Min. busbar thickness (EF006536) 5 mm
Max. busbar thickness (EF003702) 10 mm
Width of the adapter (EF003703) 45 mm
Rail width (EF003704) 35 mm
Busbar distance (EF002638) 60 mm

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
BBA0/2TS-L Y7-101482 101482 DE_103005.pdf 2 Mbytes BBA0/2TS-L Y7-101482 101482 DE_103005.pdf
