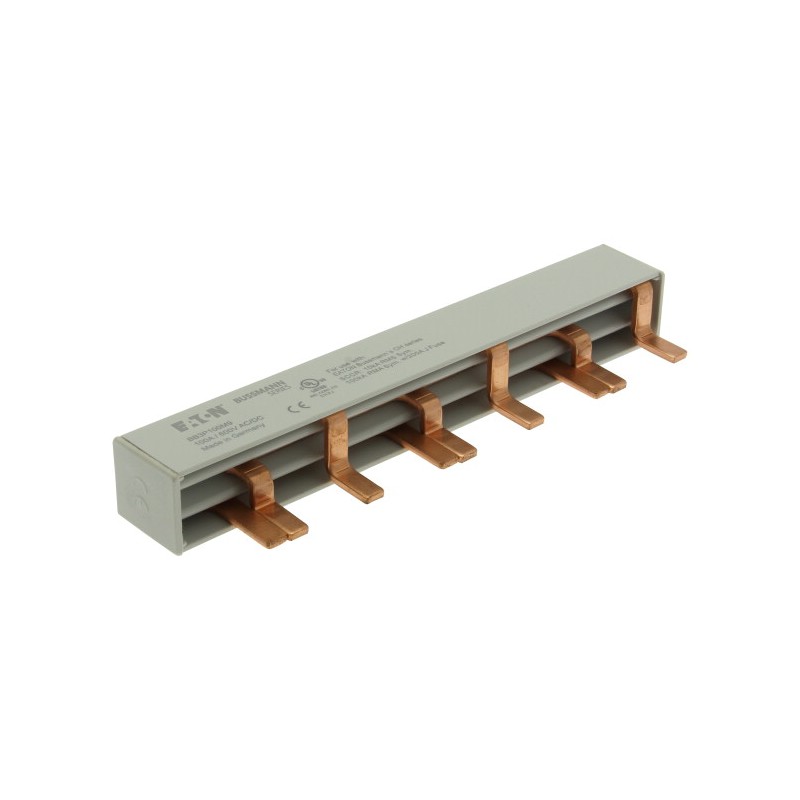

EATON - MOELLER BB3P100M9 BB3P100M9 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

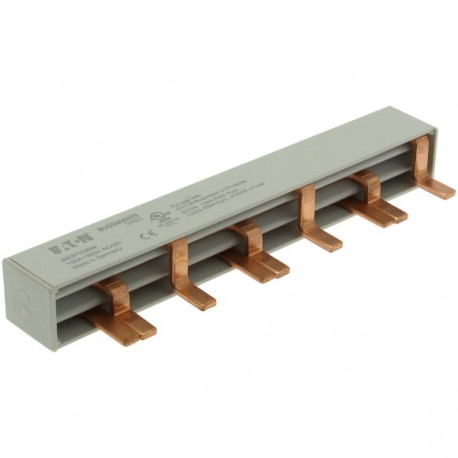

BB3P100M9 EATON ELECTRIC Three phase bb,100A,9 pins, assembled EC

Reference: BB3P100M9

Manufacturer: EATON - MOELLER

Description:

Three phase bb,100A,9 pins, assembled EC
Three phase bb,100A,9 pins, assembled EC - Busbar, low voltage, 100 A, AC 600 V, DC 600 V, 23 x 37 x 159 mm, 9P, UL, three phase 3-way comb-type busbar, with end stop

Categories:

  • Low-voltage industrial components > Phase busbar
  • EATON - MOELLER > Bussmann Series High speed fuses

Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 33,27 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Busbar, low voltage, 100 A, AC 600 V, DC 600 V, 23 x 37 x 159 mm, 9P, UL, three phase 3-way comb-type busbar, with end stop
Fuse accessory, BUSBAR, low voltage, 100 A, AC 600 V, DC 600 V, 23 x 37 x 159 mm, 9P, UL, three phase 3-way comb-type busbar, with end stop, UL 508

Delivery program

Product range
Fuse accessory
Field of application
low voltage
Rated current [I]
100 A
Rated voltage
AC 600 V
DC 600 V
Size
23 x 37 x 159 mm
Description
three phase 3-way comb-type busbar
with end stop
Number of poles
9P
Standard/Approval
UL
Standards/Regulations
UL 508

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Phase busbar (EC000215)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Phase busbar (ecl@ss10.0.1-27-37-13-06 [ACN992011])
Number of phases
3
Number of poles
9
Suitable for number of devices
9
Pitch dimensions
17.8 mm
Cross section
25 mm²
Length
159 mm
Number of modular spacings
9
Rated permanent current Iu
100 A
Type of electric connection
Fork
Insulated
Yes
Rated surge voltage
kV
Conditioned rated short-circuit current Iq
10 kA
Max. rated operation voltage Ue
600 V
Rated short-time withstand current lcw
10 kA
Suitable for devices with N-busbar
No
Suitable for devices with auxiliary switch
No
