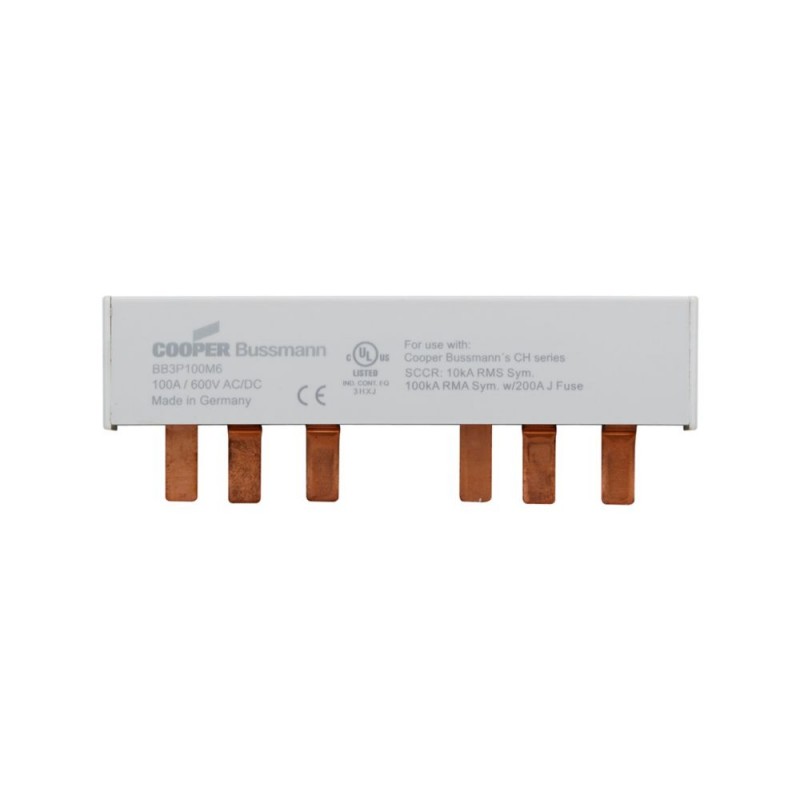

BB3P100M6 EATON ELECTRIC Three phase bb, 100A, 6 pins, assembled View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

BB3P100M6 EATON ELECTRIC Three phase bb, 100A, 6 pins, assembled

BB3P100M6

EATON-MOELLER

Three phase bb, 100A, 6 pins, assembled

Three phase bb, 100A, 6 pins, assembled - Busbar, low voltage, 100 A, AC 600 V, DC 600 V, 23 x 37 x 104 mm, 6P, UL, three phase 2-way comb-type busbar, with end stop

More details


Low-voltage industrial components > Phase busbar

Bussmann Series High speed fuses

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $38.72
Unit price: $38.72
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Busbar, low voltage, 100 A, AC 600 V, DC 600 V, 23 x 37 x 104 mm, 6P, UL, three phase 2-way comb-type busbar, with end stop
Fuse accessory, BUSBAR, low voltage, 100 A, AC 600 V, DC 600 V, 23 x 37 x 104 mm, 6P, UL, three phase 2-way comb-type busbar, with end stop, UL 508

Delivery program

Product range
Fuse accessory
Field of application
low voltage
Rated current [I]
100 A
Rated voltage
AC 600 V
DC 600 V
Size
23 x 37 x 104 mm
Description
three phase 2-way comb-type busbar
with end stop
Number of poles
6P
Standard/Approval
UL
Standards/Regulations
UL 508

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Phase busbar (EC000215)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Phase busbar ([email protected] [ACN992011])
Number of phases
3
Number of poles
6
Suitable for number of devices
6
Pitch dimensions
17.8 mm
Cross section
25 mm²
Length
104 mm
Number of modular spacings
6
Rated permanent current Iu
100 A
Type of electric connection
Fork
Insulated
Yes
Rated surge voltage
kV
Conditioned rated short-circuit current Iq
10 kA
Max. rated operation voltage Ue
600 V
Rated short-time withstand current lcw
10 kA
Suitable for devices with N-busbar
No
Suitable for devices with auxiliary switch
No
