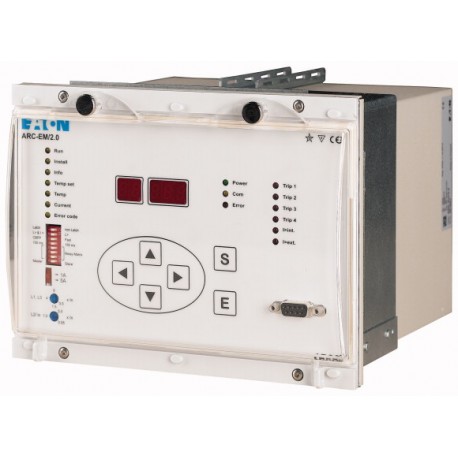

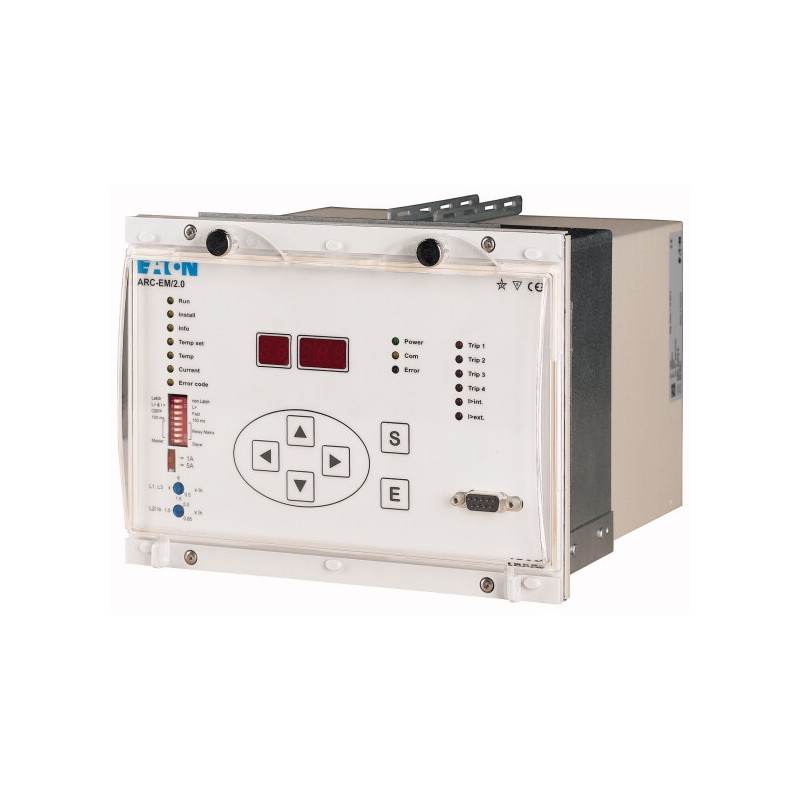

ARC-EM/2.0 172749 Y7-172749 EATON ELECTRIC ARCON master unit card QD
ARC-EM/2.0
172749
Y7-172749
EATON-MOELLER
ARCON master unit card QD
ARC-EM/2.0
ARCON master unit with QD card
Electronic evaluation unit (master), incl. bus card for controlling the extinguisher, front door installation in an MP section
Low-voltage industrial components > Arc detection system
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Technical data ETIM 7.0
| Feature Name | Feature Value |
|---|---|
| Expandable (EF000119) | No |
| Overcurrent protection (EF000312) | No |
| Rated control supply voltage AC 50 Hz (EF003978) | 48 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 110 V |
| Rated control supply voltage DC (EF003980) | 48 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Mounting method (EF000003) | Front mounting |
| Type of electric connection (EF003961) | Screw connection |
| Number of inputs (EF000318) | 5 |
| Number of contacts as normally open contact (EF008256) | 6 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Circuit-breaker failure protection (ANSI 50BF) (EF016191) | No |
| Height (EF000040) | 207 mm |
| Width (EF000008) | 252 mm |
| Depth (EF000049) | 292 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| ARC-EM/2.0 Y7-172749 172749 EN_172749.pdf | 163 Kbytes |
|
