> DANFOSS REFRIGERATION>SZ185-4CAI DANFOSS REFRIGERATION Scroll compressor, SZ185S4CC
Previous Product Next Product

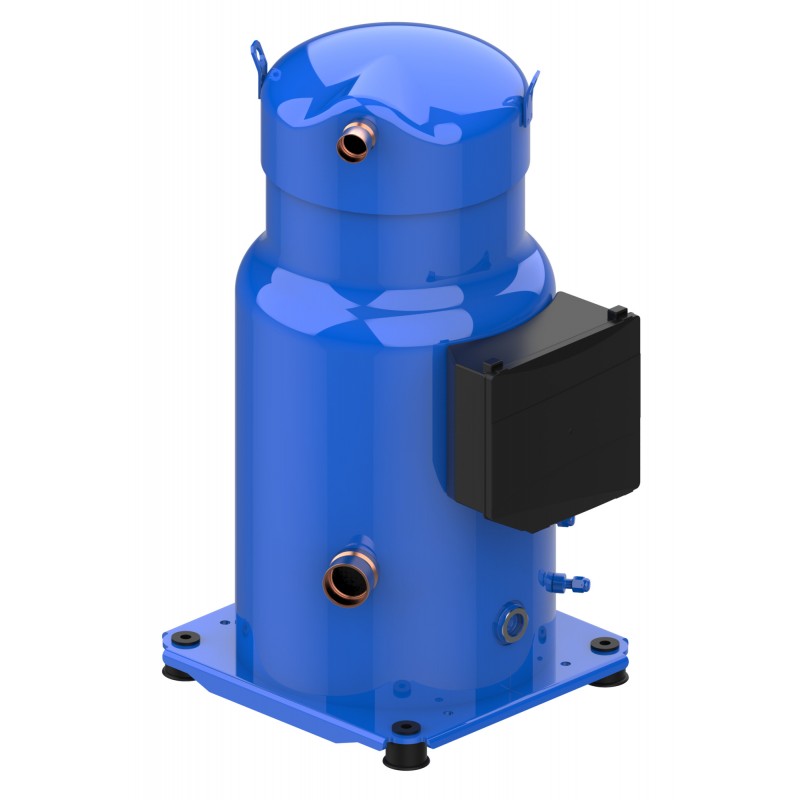

SZ185-4CAI DANFOSS REFRIGERATION Scroll compressor, SZ185S4CC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

SZ185-4CAI DANFOSS REFRIGERATION Scroll compressor, SZ185S4CC

SZ185-4CAI

DANFOSS REFRIGERATION

Scroll compressor, SZ185S4CC

More details


Home > DANFOSS REFRIGERATION

* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Refrigerants: R404A; R407C; R134a; R513A, Segment usage: Air conditioning, Compressor power supply [V]: 380-400/3/50 460/3/60, Packing format: Single pack

Product details

Gross weight117.5 Kg
Net weight102.16 Kg
Volume0.23 Cubic.mtr
EAN5702428582766
Gross weight117.5 Kg
Net weight102.16 Kg
Volume0.23 Cubic.mtr
EAN5702428582766

ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V]380-400/3/50 460/3/60
Configuration codeSingle
Connection typeBrazed
DescriptionSZ185-4
Diameter [mm]317 mm
Discharge connection height [mm]643 mm
Discharge connection pipe size [in]1 1/8 in
Discharge connection size [in]1 1/8 in
Drawing number8551056c
EconomizerNo
EU RoHS complianceYes with exemptions
Factory HP [bar]33 bar
Factory LP [bar]25 bar
FamilySZ
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Glass mountingThreaded
Glass torque [Nm]50 N-m
GP LP torque [Nm]15 N-m
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume2.5 L
High value of nominal voltage at 50Hz [V]400 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]440 V
High value of voltage range at 60Hz [V]506 V
In scope of WEEE and contain batteriesNo
IP protection classIP54 (with cable gland)
Low Side TS Max54 °C
Low Side TS Min-35 °C
Low Side Volume31.2 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]342 V
Low value of voltage range at 60Hz [V]414 V
LRA175 A
Max pressure (PS) - high side34.3 bar
Max pressure (PS) - low side25 bar
Maximum Operating Current [MOC]35 A
MMT35 A
Model numberSZ185S4CD
Motor protectionInternal thermostat, ext. overload protector needed
Mounting torque [Nm]21 N-m
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]6.2 L
Oil drain1/4'' flare
Oil drain torque [Nm]35 N-m
Oil equalization3/8'' flare SAE
Oil equalization torque [Nm]48 N-m
Oil reference160SZ
Oil typePOE
Packaging height [mm]698 mm
Packaging length [mm]470 mm
Packaging weight [Kg]106 kg
Packaging width [mm]400 mm
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew 4.8 mm
Product groupHermetic compressors
Product Name DescriptionScroll compressor SZ
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]13.5 kg
RefrigerantsR134a
R404A
R407C
R513A
Relief valveNone
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.2a7bda95-e10a-4cee-a4ae-c14f0342e88a
Segment usageAir conditioning
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]180 mm
Suction connection material-
Suction connection pipe size [in]1 5/8 in
Suction connection size [in]1 5/8 in
Swept volume [cm3]249.9 cm³
TechnologyScroll
Test dif [bar] [Max]24 bar
Test HP [bar] [Max]32 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]2 N-m
Torque Ebox cover [Nm]2 N-m
Torque power [Nm]3 N-m
Total height [mm]678 mm
TypeSZ185
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]0.77 Ohm
ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V]380-400/3/50 460/3/60
Configuration codeSingle
Connection typeBrazed
DescriptionSZ185-4
Diameter [mm]317 mm
Discharge connection height [mm]643 mm
Discharge connection pipe size [in]1 1/8 in
Discharge connection size [in]1 1/8 in
Drawing number8551056c
EconomizerNo
EU RoHS complianceYes with exemptions
Factory HP [bar]33 bar
Factory LP [bar]25 bar
FamilySZ
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Glass mountingThreaded
Glass torque [Nm]50 N-m
GP LP torque [Nm]15 N-m
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume2.5 L
High value of nominal voltage at 50Hz [V]400 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]440 V
High value of voltage range at 60Hz [V]506 V
In scope of WEEE and contain batteriesNo
IP protection classIP54 (with cable gland)
Low Side TS Max54 °C
Low Side TS Min-35 °C
Low Side Volume31.2 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]342 V
Low value of voltage range at 60Hz [V]414 V
LRA175 A
Max pressure (PS) - high side34.3 bar
Max pressure (PS) - low side25 bar
Maximum Operating Current [MOC]35 A
MMT35 A
Model numberSZ185S4CD
Motor protectionInternal thermostat, ext. overload protector needed
Mounting torque [Nm]21 N-m
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]6.2 L
Oil drain1/4'' flare
Oil drain torque [Nm]35 N-m
Oil equalization3/8'' flare SAE
Oil equalization torque [Nm]48 N-m
Oil reference160SZ
Oil typePOE
Packaging height [mm]698 mm
Packaging length [mm]470 mm
Packaging weight [Kg]106 kg
Packaging width [mm]400 mm
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew 4.8 mm
Product groupHermetic compressors
Product Name DescriptionScroll compressor SZ
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]13.5 kg
RefrigerantsR134a
R404A
R407C
R513A
Relief valveNone
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.2a7bda95-e10a-4cee-a4ae-c14f0342e88a
Segment usageAir conditioning
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]180 mm
Suction connection material-
Suction connection pipe size [in]1 5/8 in
Suction connection size [in]1 5/8 in
Swept volume [cm3]249.9 cm³
TechnologyScroll
Test dif [bar] [Max]24 bar
Test HP [bar] [Max]32 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]2 N-m
Torque Ebox cover [Nm]2 N-m
Torque power [Nm]3 N-m
Total height [mm]678 mm
TypeSZ185
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]0.77 Ohm

Datasheet - PDF

▲
Title: Size: Type:
SZ185-4CAI SZ185-4CAI EN_120U1401.pdf 4 Mbytes SZ185-4CAI SZ185-4CAI EN_120U1401.pdf
