> DANFOSS REFRIGERATION>SM148-4VAI DANFOSS REFRIGERATION Scroll compressor, SM148T4VC
Previous Product Next Product

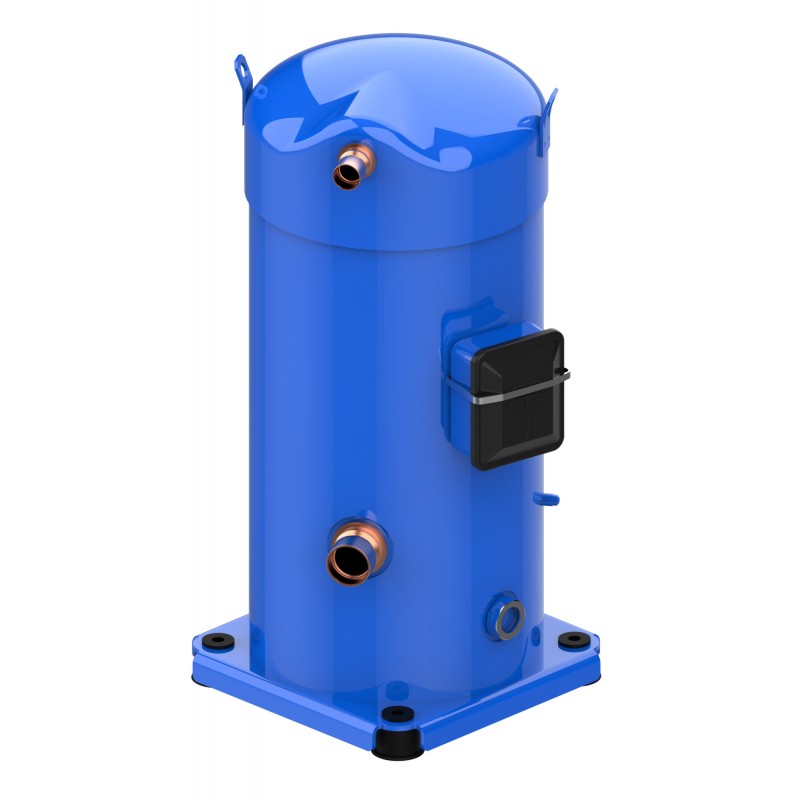

SM148-4VAI DANFOSS REFRIGERATION Scroll compressor, SM148T4VC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

SM148-4VAI DANFOSS REFRIGERATION Scroll compressor, SM148T4VC

SM148-4VAI

DANFOSS REFRIGERATION

Scroll compressor, SM148T4VC

More details


Home > DANFOSS REFRIGERATION

* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Refrigerants: R22, Segment usage: Air conditioning, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Single pack

Product details

Gross weight97 Kg
Net weight88 Kg
Volume0.23 Cubic.mtr
EAN5702428583039
Gross weight97 Kg
Net weight88 Kg
Volume0.23 Cubic.mtr
EAN5702428583039

ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V]380-415/3/50 460/3/60
Configuration codeSingle
Connection typeBrazed
DescriptionSM148-4
Diameter [mm]266 mm
Discharge connection height [mm]556 mm
Discharge connection pipe size [in]7/8 in
Discharge connection size [in]7/8 in
Drawing number8551106b
EconomizerNo
EU RoHS complianceYes with exemptions
Factory HP [bar]33 bar
Factory LP [bar]25 bar
FamilySM
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Glass mountingThreaded
Glass torque [Nm]50 N-m
GP LP torque [Nm]15 N-m
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume1.6 L
High value of nominal voltage at 50Hz [V]400 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]440 V
High value of voltage range at 60Hz [V]506 V
In scope of WEEE and contain batteriesNo
IP protection classIP54 (with cable gland)
Low Side TS Max63 °C
Low Side TS Min-35 °C
Low Side Volume14.7 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]342 V
Low value of voltage range at 60Hz [V]414 V
LRA145 A
Max pressure (PS) - high side30.2 bar
Max pressure (PS) - low side25 bar
Maximum Operating Current [MOC]29 A
MCC32 A
Model numberSM148T4VC
Motor protectionInternal overload protector
Mounting torque [Nm]21 N-m
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]3.6 L
Oil equalization3/8'' flare SAE
Oil equalization torque [Nm]48 N-m
Oil reference160P
Oil typeMineral
Packaging height [mm]671 mm
Packaging length [mm]470 mm
Packaging weight [Kg]671 kg
Packaging width [mm]370 mm
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew 4.8 mm
Product groupHermetic compressors
Product Name DescriptionScroll compressor SM
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]12.5 kg
RefrigerantsR22
Relief valveNone
RLA22.9 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.2e9b0776-281a-4205-bf1f-dbeea526b31d
Segment usageAir conditioning
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]180 mm
Suction connection material-
Suction connection pipe size [in]1 3/8 in
Suction connection size [in]1 3/8 in
Swept volume [cm3]199 cm³
TechnologyScroll
Test dif [bar] [Max]24 bar
Test HP [bar] [Max]32 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]2 N-m
Torque power [Nm]3 N-m
Total height [mm]591 mm
TypeSM148
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]0.94 Ohm
ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V]380-415/3/50 460/3/60
Configuration codeSingle
Connection typeBrazed
DescriptionSM148-4
Diameter [mm]266 mm
Discharge connection height [mm]556 mm
Discharge connection pipe size [in]7/8 in
Discharge connection size [in]7/8 in
Drawing number8551106b
EconomizerNo
EU RoHS complianceYes with exemptions
Factory HP [bar]33 bar
Factory LP [bar]25 bar
FamilySM
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Glass mountingThreaded
Glass torque [Nm]50 N-m
GP LP torque [Nm]15 N-m
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume1.6 L
High value of nominal voltage at 50Hz [V]400 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]440 V
High value of voltage range at 60Hz [V]506 V
In scope of WEEE and contain batteriesNo
IP protection classIP54 (with cable gland)
Low Side TS Max63 °C
Low Side TS Min-35 °C
Low Side Volume14.7 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]342 V
Low value of voltage range at 60Hz [V]414 V
LRA145 A
Max pressure (PS) - high side30.2 bar
Max pressure (PS) - low side25 bar
Maximum Operating Current [MOC]29 A
MCC32 A
Model numberSM148T4VC
Motor protectionInternal overload protector
Mounting torque [Nm]21 N-m
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]3.6 L
Oil equalization3/8'' flare SAE
Oil equalization torque [Nm]48 N-m
Oil reference160P
Oil typeMineral
Packaging height [mm]671 mm
Packaging length [mm]470 mm
Packaging weight [Kg]671 kg
Packaging width [mm]370 mm
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew 4.8 mm
Product groupHermetic compressors
Product Name DescriptionScroll compressor SM
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]12.5 kg
RefrigerantsR22
Relief valveNone
RLA22.9 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.2e9b0776-281a-4205-bf1f-dbeea526b31d
Segment usageAir conditioning
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]180 mm
Suction connection material-
Suction connection pipe size [in]1 3/8 in
Suction connection size [in]1 3/8 in
Swept volume [cm3]199 cm³
TechnologyScroll
Test dif [bar] [Max]24 bar
Test HP [bar] [Max]32 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]2 N-m
Torque power [Nm]3 N-m
Total height [mm]591 mm
TypeSM148
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]0.94 Ohm

Datasheet - PDF

▲
Title: Size: Type:
SM148-4VAI SM148-4VAI EN_120U1401.pdf 4 Mbytes SM148-4VAI SM148-4VAI EN_120U1401.pdf
