> DANFOSS REFRIGERATION>MTZ32-4VM DANFOSS REFRIGERATION Reciprocating compressor, MTZ32JF4BVE
Previous Product Next Product

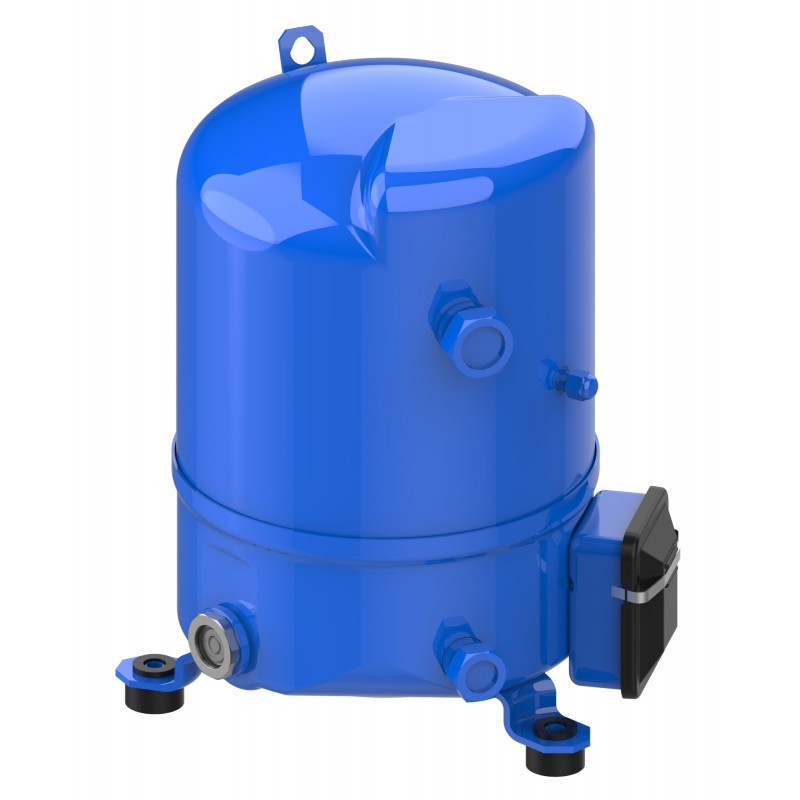

MTZ32-4VM DANFOSS REFRIGERATION Reciprocating compressor, MTZ32JF4BVE View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MTZ32-4VM DANFOSS REFRIGERATION Reciprocating compressor, MTZ32JF4BVE

MTZ32-4VM

DANFOSS REFRIGERATION

12

Reciprocating compressor, MTZ32JF4BVE

More details


Home > DANFOSS REFRIGERATION

* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Refrigerants: R404A; R407C; R452A; R407A; R134a; R454C; R407F; R513A; R448A; R454A; R455A; R449A, Segment usage: Refrigeration MT, Compressor power supply [V]: 400/3/50 460/3/60, Packing format: Industrial pack

Product details

Gross weight27.08 Kg
Net weight25.83 Kg
Volume40 Liter
EAN5702428867245
Gross weight27.08 Kg
Net weight25.83 Kg
Volume40 Liter
EAN5702428867245

Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V]400/3/50 460/3/60
Configuration codeSingle
Connection typeRotolock
Cylinder1
DescriptionMTZ032-4
Diameter [mm]224 mm
Discharge connection height [mm]68 mm
Discharge connection pipe size [in]1/2 in
Discharge connection size [in]1 in
Drawing number8501025f
EconomizerNo
EU RoHS complianceYes with exemptions
Factory HP [bar]25 bar
Factory LP [bar]25 bar
FamilyMTZ
Fitting remark(shipped with rotolock version only)
Fitting sleeveODF
Fitting standardRotolock
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Glass mountingThreaded
Glass torque [Nm]50 N-m
GP LP torque [Nm]15 N-m
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume0.3 L
High value of nominal voltage at 50Hz [V]400 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]460 V
High value of voltage range at 60Hz [V]506 V
In scope of WEEE and contain batteriesNo
IP protection classIP55 (with cable gland)
Low Side TS Max50 °C
Low Side TS Min-35 °C
Low Side Volume7.5 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]340 V
Low value of voltage range at 60Hz [V]414 V
LRA25 A
Max pressure (PS) - high side29.4 bar
Max pressure (PS) - low side22.6 bar
MCC8 A
Model numberMTZ32JF4BVE
Motor protectionInternal overload protector
Mounting torque [Nm]15 N-m
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]0.95 L
Oil equalization3/8'' flare SAE
Oil equalization torque [Nm]30 N-m
Oil reference175PZ
Packaging height [mm]500 mm
Packaging length [mm]1150 mm
Packaging weight [Kg]331 kg
Packaging width [mm]800 mm
Packing formatIndustrial pack
Packing quantity12
Phase3
Power connectionsSpade
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor MTZ
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]2.5 kg
RefrigerantsR134a
R404A
R407A
R407C
R407F
R448A
R449A
R452A
R454C
R455A
R513A
R454A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.5a332c1b-1d1b-4998-8115-d0929877ecb4
Segment usageRefrigeration MT
Shipped fittingsSuction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]263 mm
Suction connection material-
Suction connection pipe size [in]5/8 in
Suction connection size [in]1 1/4 in
Swept volume [cm3]53.86 cm³
TechnologyReciprocating
Test dif [bar] [Max]30 bar
Test HP [bar] [Max]30 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]3 N-m
Torque power [Nm]3 N-m
Total height [mm]356 mm
TypeMTZ032
Winding resistance for three-phase compressors with identical windings [Ohm]6.45 Ohm
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V]400/3/50 460/3/60
Configuration codeSingle
Connection typeRotolock
Cylinder1
DescriptionMTZ032-4
Diameter [mm]224 mm
Discharge connection height [mm]68 mm
Discharge connection pipe size [in]1/2 in
Discharge connection size [in]1 in
Drawing number8501025f
EconomizerNo
EU RoHS complianceYes with exemptions
Factory HP [bar]25 bar
Factory LP [bar]25 bar
FamilyMTZ
Fitting remark(shipped with rotolock version only)
Fitting sleeveODF
Fitting standardRotolock
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Glass mountingThreaded
Glass torque [Nm]50 N-m
GP LP torque [Nm]15 N-m
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume0.3 L
High value of nominal voltage at 50Hz [V]400 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]460 V
High value of voltage range at 60Hz [V]506 V
In scope of WEEE and contain batteriesNo
IP protection classIP55 (with cable gland)
Low Side TS Max50 °C
Low Side TS Min-35 °C
Low Side Volume7.5 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]340 V
Low value of voltage range at 60Hz [V]414 V
LRA25 A
Max pressure (PS) - high side29.4 bar
Max pressure (PS) - low side22.6 bar
MCC8 A
Model numberMTZ32JF4BVE
Motor protectionInternal overload protector
Mounting torque [Nm]15 N-m
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]0.95 L
Oil equalization3/8'' flare SAE
Oil equalization torque [Nm]30 N-m
Oil reference175PZ
Packaging height [mm]500 mm
Packaging length [mm]1150 mm
Packaging weight [Kg]331 kg
Packaging width [mm]800 mm
Packing formatIndustrial pack
Packing quantity12
Phase3
Power connectionsSpade
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor MTZ
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]2.5 kg
RefrigerantsR134a
R404A
R407A
R407C
R407F
R448A
R449A
R452A
R454C
R455A
R513A
R454A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.5a332c1b-1d1b-4998-8115-d0929877ecb4
Segment usageRefrigeration MT
Shipped fittingsSuction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]263 mm
Suction connection material-
Suction connection pipe size [in]5/8 in
Suction connection size [in]1 1/4 in
Swept volume [cm3]53.86 cm³
TechnologyReciprocating
Test dif [bar] [Max]30 bar
Test HP [bar] [Max]30 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]3 N-m
Torque power [Nm]3 N-m
Total height [mm]356 mm
TypeMTZ032
Winding resistance for three-phase compressors with identical windings [Ohm]6.45 Ohm

Datasheet - PDF

▲
Title: Size: Type:
MTZ32-4VM MTZ32-4VM EN_120U1401.pdf 4 Mbytes MTZ32-4VM MTZ32-4VM EN_120U1401.pdf
