> DANFOSS REFRIGERATION>MT56-4VM DANFOSS REFRIGERATION Reciprocating compressor, MT56HL4BVE
Previous Product Next Product

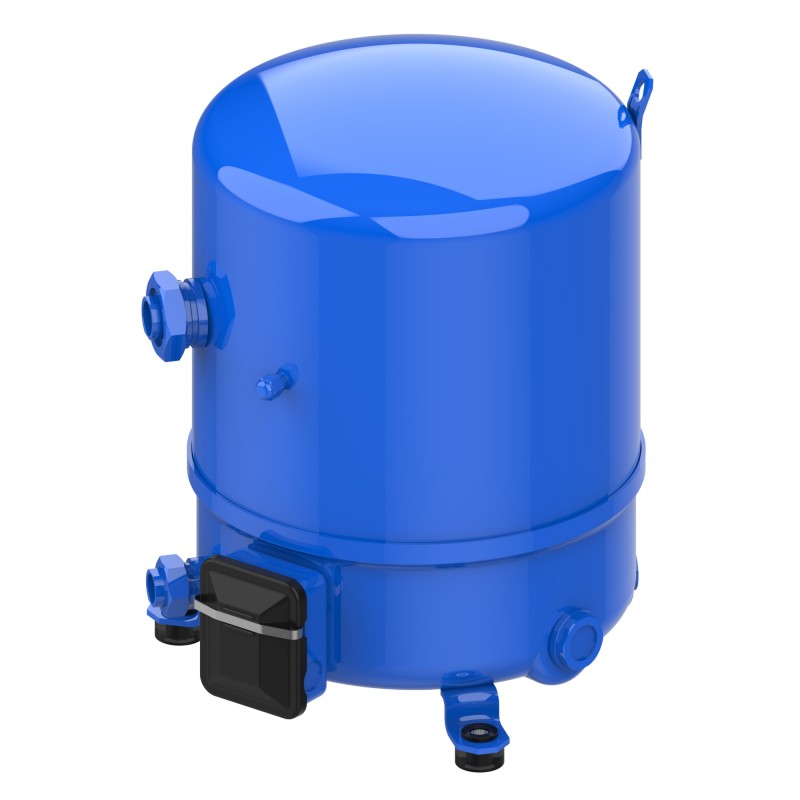

MT56-4VM DANFOSS REFRIGERATION Reciprocating compressor, MT56HL4BVE View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MT56-4VM DANFOSS REFRIGERATION Reciprocating compressor, MT56HL4BVE

MT56-4VM

DANFOSS REFRIGERATION

6

Reciprocating compressor, MT56HL4BVE

More details


Home > DANFOSS REFRIGERATION

* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Refrigerants: R22, Segment usage: Refrigeration MT, Compressor power supply [V]: 400/3/50 460/3/60, Packing format: Industrial pack

Product details

Gross weight40.5 Kg
Net weight38 Kg
Volume87.2 Liter
EAN5702428662031
Gross weight40.5 Kg
Net weight38 Kg
Volume87.2 Liter
EAN5702428662031

ApprovalCCC
CE
UL
UKCA
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V]400/3/50 460/3/60
Configuration codeSingle
Connection typeRotolock
Cylinder2
DescriptionMT056-4
Diameter [mm]288 mm
Discharge connection height [mm]74 mm
Discharge connection pipe size [in]3/4 in
Discharge connection size [in]1 1/4 in
Drawing number8502012g
EconomizerNo
EU RoHS complianceYes with exemptions
Factory HP [bar]25 bar
Factory LP [bar]25 bar
FamilyMT
Fitting remark(shipped with rotolock version only)
Fitting sleeveODF
Fitting standardRotolock
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Glass mountingThreaded
Glass torque [Nm]50 N-m
GP LP torque [Nm]15 N-m
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume0.6 L
High value of nominal voltage at 50Hz [V]400 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]460 V
High value of voltage range at 60Hz [V]506 V
In scope of WEEE and contain batteriesNo
IP protection classIP55 (with cable gland)
Low Side TS Max50 °C
Low Side TS Min-35 °C
Low Side Volume16.5 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]340 V
Low value of voltage range at 60Hz [V]414 V
LRA64 A
Max pressure (PS) - high side27.8 bar
Max pressure (PS) - low side18.4 bar
MCC12 A
Model numberMT56HL4DVE
Motor protectionInternal overload protector
Mounting torque [Nm]15 N-m
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]1.8 L
Oil equalization3/8'' flare SAE
Oil equalization torque [Nm]30 N-m
Oil reference160P
Packaging height [mm]550 mm
Packaging length [mm]1150 mm
Packaging weight [Kg]251 kg
Packaging width [mm]800 mm
Packing formatIndustrial pack
Packing quantity6
Phase3
Power connectionsSpade
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor MT
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]5 kg
RefrigerantsR22
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.9b3fb119-9852-486a-92dd-53aa9c96fd3b
Segment usageRefrigeration MT
Shipped fittingsSuction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]265 mm
Suction connection material-
Suction connection pipe size [in]7/8 in
Suction connection size [in]1 3/4 in
Swept volume [cm3]96.13 cm³
TechnologyReciprocating
Test dif [bar] [Max]30 bar
Test HP [bar] [Max]30 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]3 N-m
Torque power [Nm]3 N-m
Total height [mm]413 mm
TypeMT056
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]2.44 Ohm
ApprovalCCC
CE
UL
UKCA
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V]400/3/50 460/3/60
Configuration codeSingle
Connection typeRotolock
Cylinder2
DescriptionMT056-4
Diameter [mm]288 mm
Discharge connection height [mm]74 mm
Discharge connection pipe size [in]3/4 in
Discharge connection size [in]1 1/4 in
Drawing number8502012g
EconomizerNo
EU RoHS complianceYes with exemptions
Factory HP [bar]25 bar
Factory LP [bar]25 bar
FamilyMT
Fitting remark(shipped with rotolock version only)
Fitting sleeveODF
Fitting standardRotolock
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Glass mountingThreaded
Glass torque [Nm]50 N-m
GP LP torque [Nm]15 N-m
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume0.6 L
High value of nominal voltage at 50Hz [V]400 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]460 V
High value of voltage range at 60Hz [V]506 V
In scope of WEEE and contain batteriesNo
IP protection classIP55 (with cable gland)
Low Side TS Max50 °C
Low Side TS Min-35 °C
Low Side Volume16.5 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]340 V
Low value of voltage range at 60Hz [V]414 V
LRA64 A
Max pressure (PS) - high side27.8 bar
Max pressure (PS) - low side18.4 bar
MCC12 A
Model numberMT56HL4DVE
Motor protectionInternal overload protector
Mounting torque [Nm]15 N-m
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]1.8 L
Oil equalization3/8'' flare SAE
Oil equalization torque [Nm]30 N-m
Oil reference160P
Packaging height [mm]550 mm
Packaging length [mm]1150 mm
Packaging weight [Kg]251 kg
Packaging width [mm]800 mm
Packing formatIndustrial pack
Packing quantity6
Phase3
Power connectionsSpade
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor MT
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]5 kg
RefrigerantsR22
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.9b3fb119-9852-486a-92dd-53aa9c96fd3b
Segment usageRefrigeration MT
Shipped fittingsSuction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]265 mm
Suction connection material-
Suction connection pipe size [in]7/8 in
Suction connection size [in]1 3/4 in
Swept volume [cm3]96.13 cm³
TechnologyReciprocating
Test dif [bar] [Max]30 bar
Test HP [bar] [Max]30 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]3 N-m
Torque power [Nm]3 N-m
Total height [mm]413 mm
TypeMT056
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]2.44 Ohm

Datasheet - PDF

▲
Title: Size: Type:
MT56-4VM MT56-4VM EN_120U1401.pdf 4 Mbytes MT56-4VM MT56-4VM EN_120U1401.pdf
